Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-T-504(A~E)
Minimum Order Quantity: 1 platform
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000PC/Month
Name: Programmable High Temperature Chamber Model: B-T-504(A~E)
Heat-up Time: About3~5℃/min Interior: SUS#304Stainless Steel Plate
Exterior: Coating Or SUS#304Stainless Steel Plate Internal Dim: 45x60x45
Temp Fluctudtiont: ±0.5℃ Temp Uniformity: ±1.0℃
Pull Down Time: About0.7~1℃/min Power: 3KW~8KW

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable High Temperature Chamber Test Chamber



Equipment summary:

High and Low Temperature Testing Device can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature. Through testing to determine product performance whether it is still be able to meet the intended requirements.
Applicable industries:
High and Low Temperature Testing Device applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ...
and so on.

Standard:

GB11158, GB10589-89, GB10592-89, GB/T10586-89, GB/T2423.1-2001,

GB/T2423.2-2001, GB/T2423.3-93, GB/T2423.4-93, GB/T2423.22-2001,

IEC60068-2-1.199, IEC60068-2-2.197, GJB150.3, GJB150.4, GJB150.9.

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 0

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 1

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 2

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 3

The following actions are prohibited:

*Testing or storage of flammable, explosive, volatile materials

*Testing or storage of corrosive substance samples

*Testing or storage of biological samples

*Testing or storage of samples of strong electromagnetic emission sources

*Testing or storage of radioactive material samples

*Testing or storage of highly toxic substances

*Testing or storage of specimens that may cause flammable, explosive, volatile, highly toxic, corrosive and radioactive materials during testing or storage

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 4

Details:

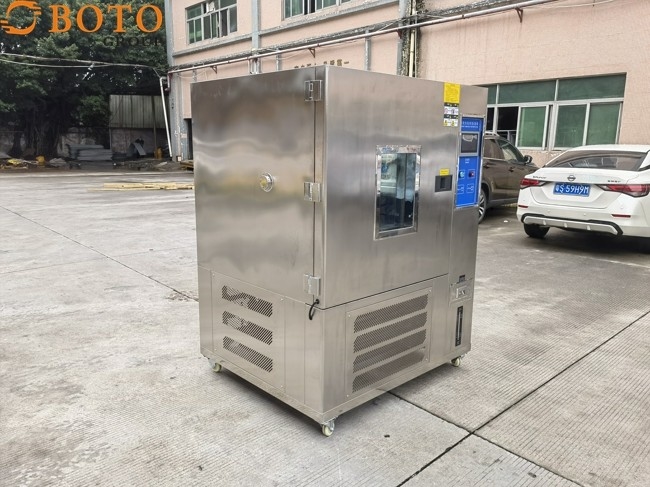

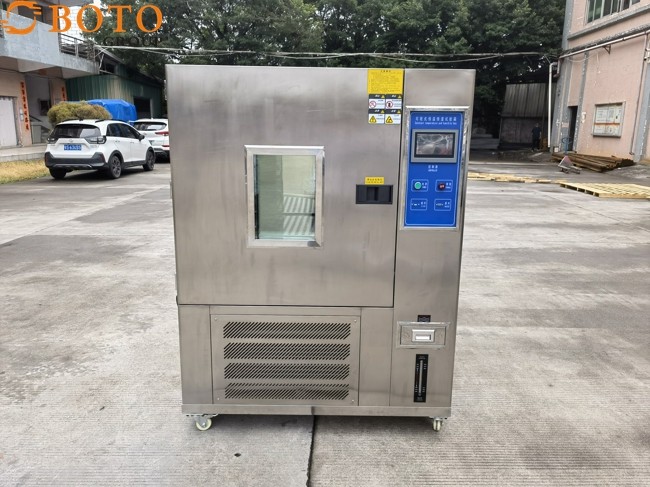

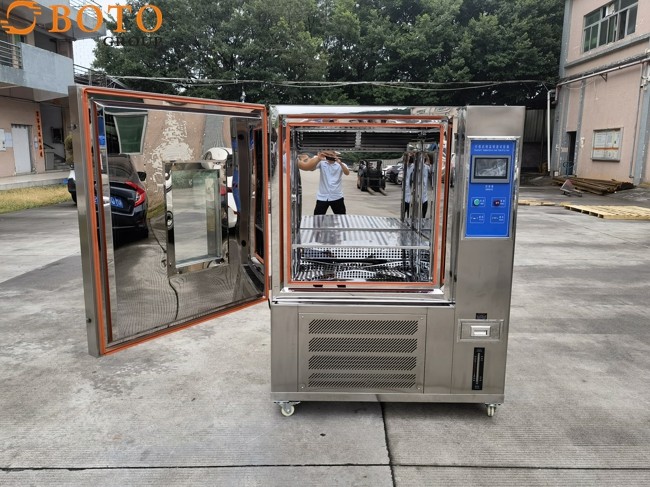

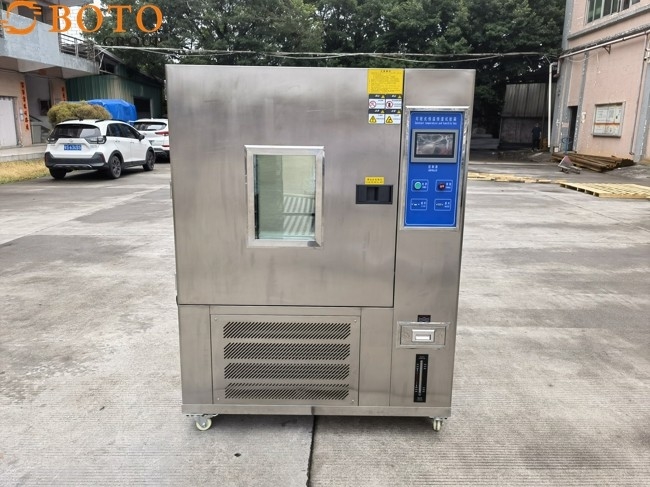

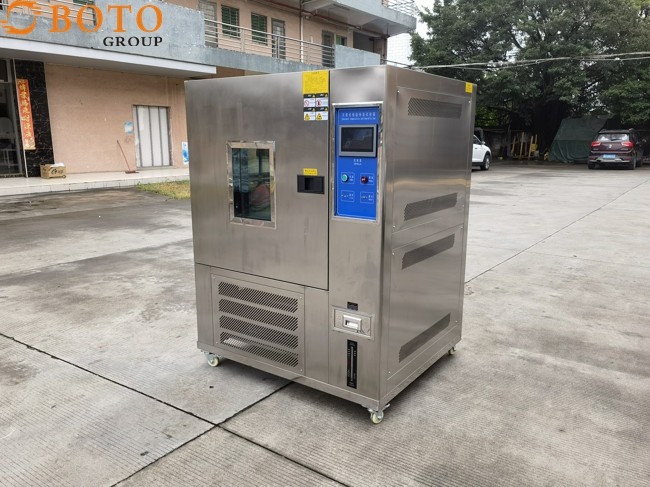

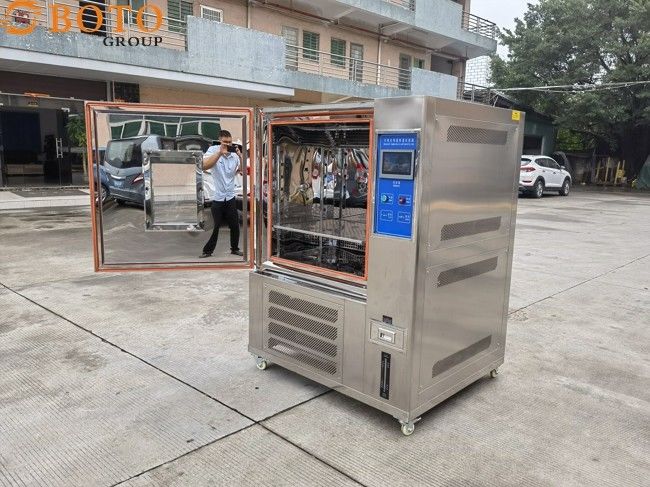

Below more photo of Programmable Constant Temperature Humidity Test Chamber/High-low Temperature Test Chamber Manufacturer for reference

Model B-T-120 B-T-225 B-T-504 B-T-1000
(A~D) (A~D) (A~D) (A~D)
Inside size WxHxD (cm) 45x60x45 60x75x50 70x90x80 100x100x100
Humidity deviation ± 2.5% RH
Temperature range -70 degree ~ +100(150) degree
(A:-40 degree B:-50 degree C:-60 degree D:-70 degree)
Humidity range 20%~98%R.H.
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating / cooling time About 3.0/min(heat), about 1.0/min(cool)
Inside material SUS#304Stainless steel plate
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Program capacity (touch type)
1. Program: 10 groups maximum
2. Number of segments: up to 120 segments
3. Number of cycles: maximum infinite loop
Protection 1. Fault alarming, showing the reason of fault and how to solve the problem
2. Power failure protection function
3. Upper and lower temperature protection function
4. Calendar timing function (automatic start and automatic stop operation)
5. Self-diagnosis function
Power 220VAC±10%       50/60Hz  &  380VAC±10%      50/60Hz



Company Information

Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.

With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.

Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 5

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 6

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 7

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 8

Packaging

Each set protected with film, then put into Strong wooden case with English operation manual.

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 9

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 10

Climatic Chamber GB/T2423.3-2006 Temperature Humidity Chamber Programmable Test Chamber 11

FAQ

Customer: What about the transportation?

Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.



Customer: What about the after-sale service?

Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.



Customer: What about the delivery date?

Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.

Our Services

All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer
