| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TCT-403 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TCT-403 | Internal Dim （CM）: | 50x50x50 |
|---|---|---|---|
| External Dim（CM）: | 138x205x200 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |
| Exterior: | Coating Or SUS#304Stainless Steel Plate | Power Source: | 19KW |

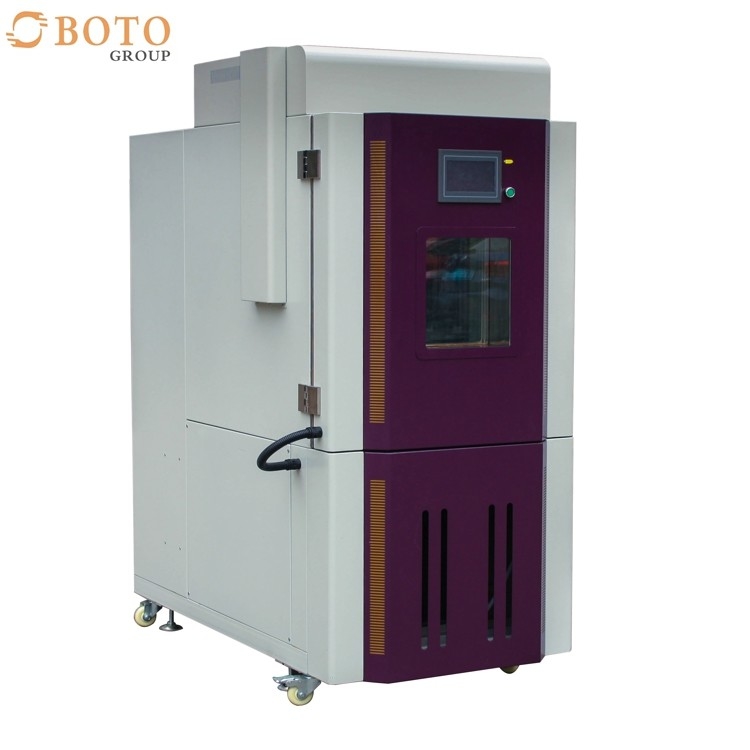

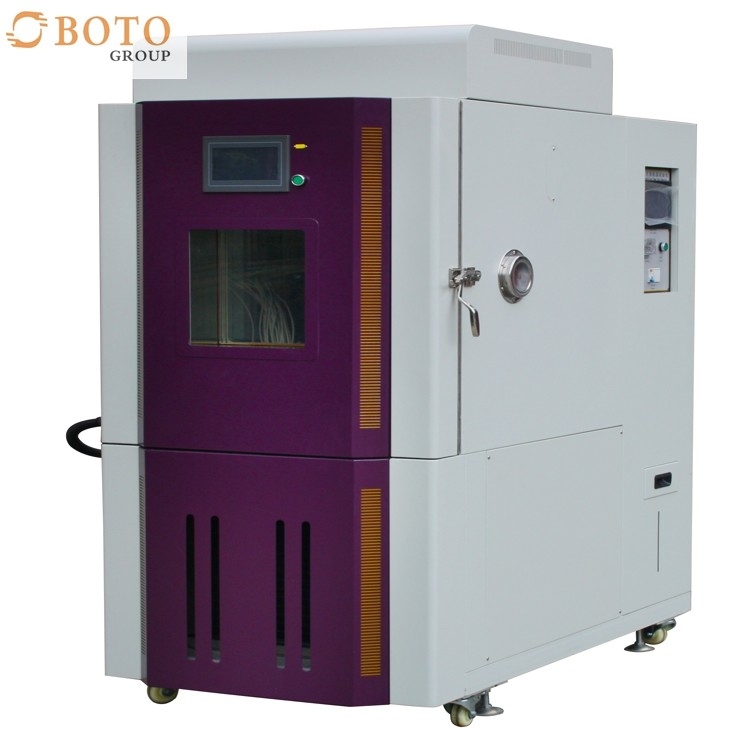

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001
Main Features:
1. Large color LCD touch interactive microcomputer control system, easy to understand, running at a glance;
2. Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature
refrigeration systems;
3. A LAN network communication interfaces to computer remote control, easy to use.
4. Independently set the heat, cold and hot and cold conditions, the impact of three different function, the impact of the
implementation of hot and cold conditions, with high and low temperature testing machine functions.
5. Operation at boot time automatically make an appointment ahead of pre-cooling, preheating, standby.
6. Defrost cycles can be set and the number of automatic (manual) defrost.
7. Controller friendly interface and easy procedure setting, abnormal and troubleshooting display complete.
Applicable Industries:
Widely used in aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear
energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments building materials ceramic; petroleum and chemical products, machine and spare parts.
Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
Model:
| (Model) | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal Dim (CM) | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | |
| External Dim(CM) | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | |
| Sample Weight | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp Rang | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | Within 3 minutes | |||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 13.5KW | 15KW | 19KW | 13.5KW | 15KW | 19KW | 15KW | 19KW | 22KW | |
