| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-80(A-E) |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Name: | Rapid Temperature Test Chamber | Exterior: | Coating Or SUS#304Stainless Steel Plate |
|---|---|---|---|
| Interior: | SUS#304Stainless Steel Plate | Power（KW）: | 1KW~2KW |
| Power Source: | AV：220V/380V 50/60Hz | Model: | B-TH-80(A-E) |
| Temp Uniformity: | ±1.0℃ |

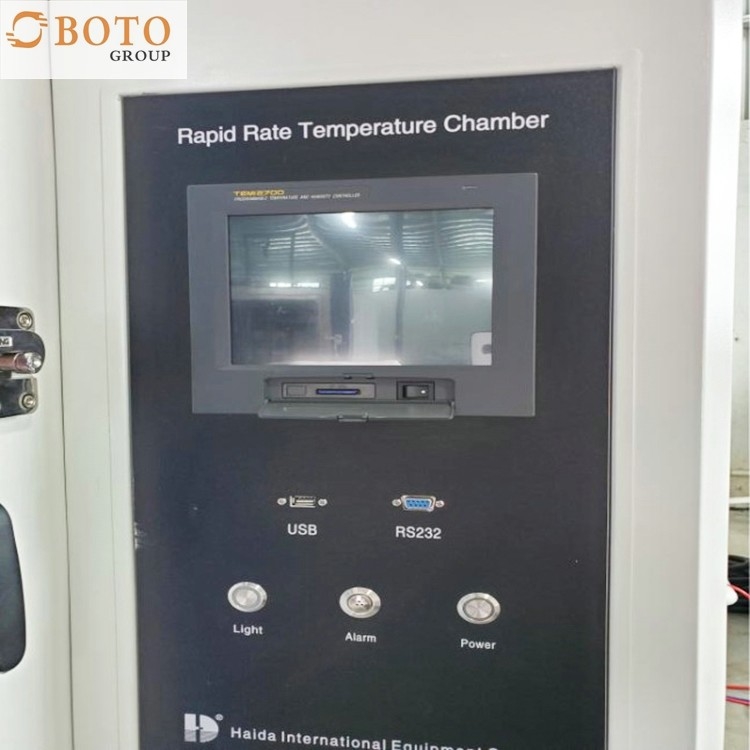

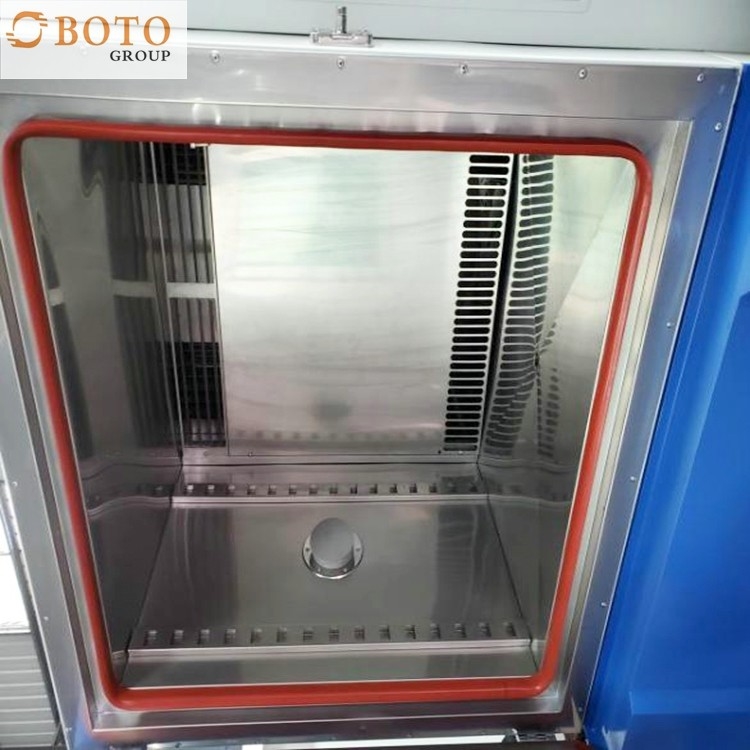

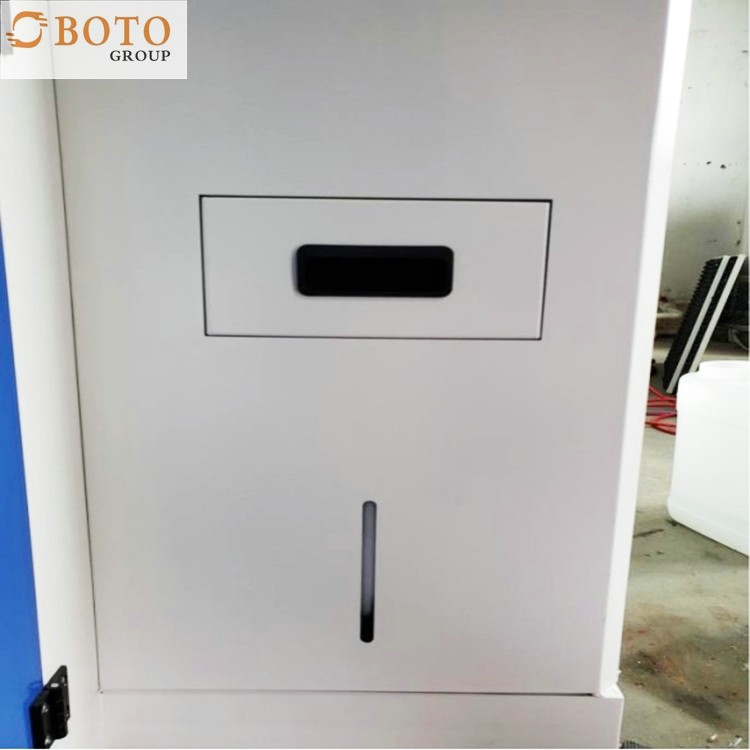

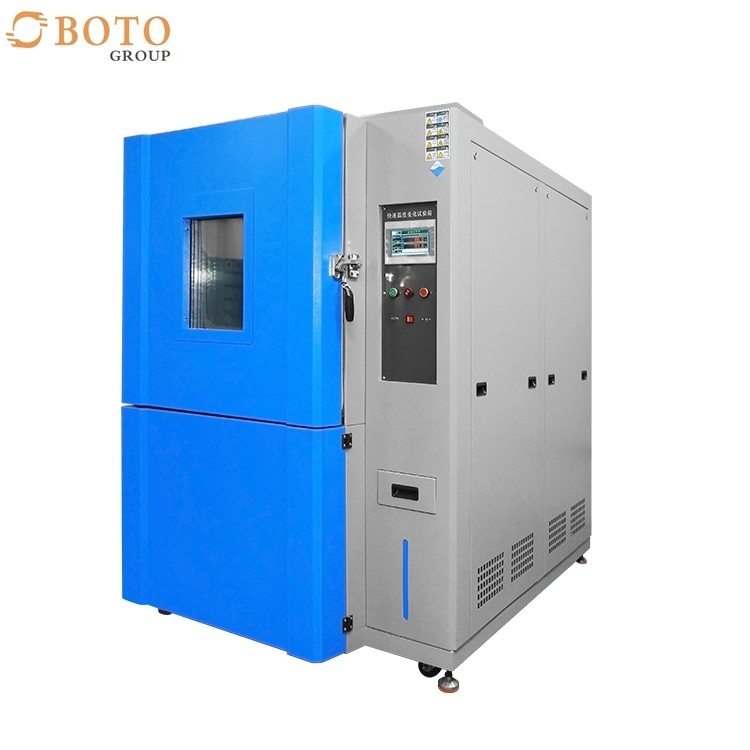

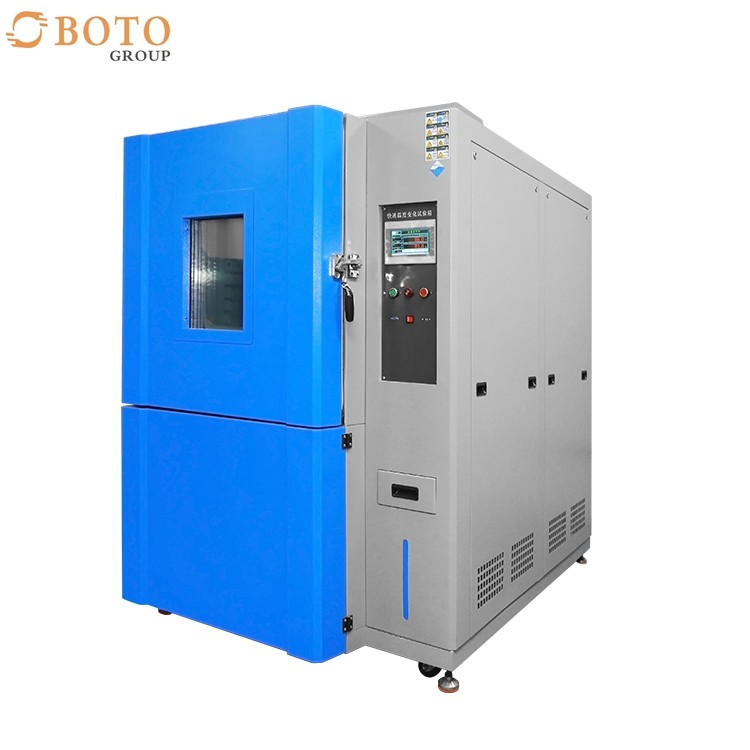

Lab Drying Oven Rapid Temperature Test Chamber ISO MIL-STD-2164 MIL-344A-4-16
Rapid temperature change test chamber refrigeration system and compressor:
In order to ensure the cooling rate of the test chamber and the minimum temperature requirements, the test chamber uses a set of Taikang fully enclosed compressor composed of binary overlapping air cooling refrigeration system. The overlapping refrigeration system consists of a high temperature refrigeration cycle and a low temperature refrigeration cycle, and its connecting vessel is the evaporative condenser. The evaporative condenser also plays the role of energy transfer, transferring the heat energy in the working room through the two-stage refrigeration system to achieve the purpose of long temperature. Refrigeration system design application of energy regulation technology, an effective treatment can ensure that in the normal operation of the refrigeration unit and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs and failure rate down to a more economic state.
This test equipment is suitable for:
Electrical, electronic products, components, components and materials are stored in high and low temperature environments
Adaptability tests for storage, transportation and use.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||
Our company:
Packing/Shipping:
FAQ:
Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
