Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-LY
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PC/Month
Model: B-LY Name: UV Aging Test Chamber
Internal Dim (CM): 30x30x30 External Dim(CM): 118x185x180
Sample Weight: 5KG Low Temp Range: -10℃--60℃
HighTemp Rang: +80℃~200℃ Right Angle Swing Pipe Spray Diameter: 16mm
Water Tank Material: High-grade Stainless Steel Plate Temperature Range: RT+10℃-70℃

Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529



Description:

Application Background: The destruction of products and materials by nature's water (rainwater, seawater, river water, etc.) causes unpredictable economic losses every year. The damages caused mainly include corrosion, discoloration, deformation, strength reduction, swelling, mildew, etc. In particular, electrical products can easily cause fire due to the short circuit caused by rain. Therefore, conducting a shell protection water test for a specific product or material is an essential and critical procedure.

General application areas: Outdoor lighting, home appliances, auto parts and other electronic electrical products.



Equipment function:

The main function of this equipment is to use for electrical and electronic products, lamps, electric cabinets, electrical components, automobiles, motorcycles, and their parts and components. carry out testing. After the test, the quality of the product can be judged through the verification to meet the requirements, so that the product can be used in design, improvement, verification and factory inspection.



Executive standard

Conforms to IEC 60529:1989 +A1:1999 +A2:2013 Degrees of protection provided by enclosures (IP Code), and “Enclosure Protection Level (IP Code)” 14.2.3, 14.2.4 and Figure 4 and GB7000.1. The first part of the lamps and lanterns: General requirements and tests 9.2.4, 9.2.5 articles and Figure 9.4 requirements.

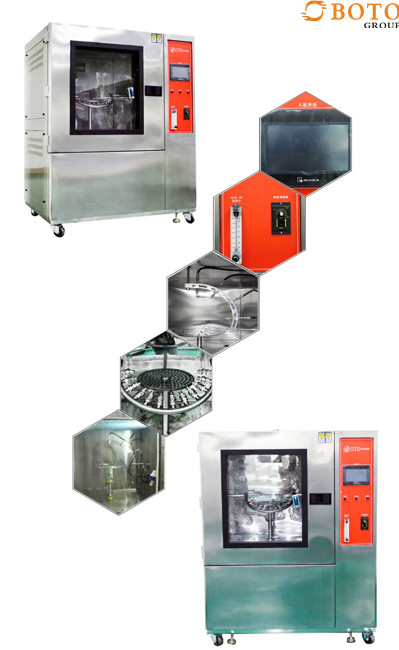

Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 0

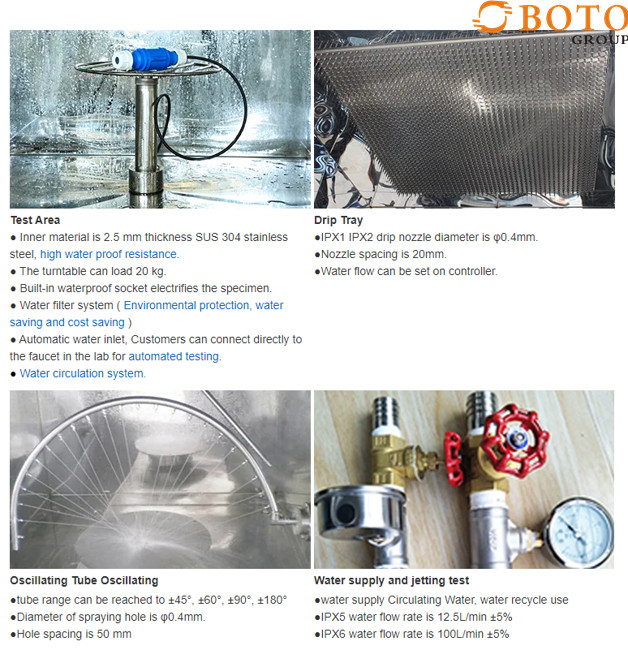

Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 1

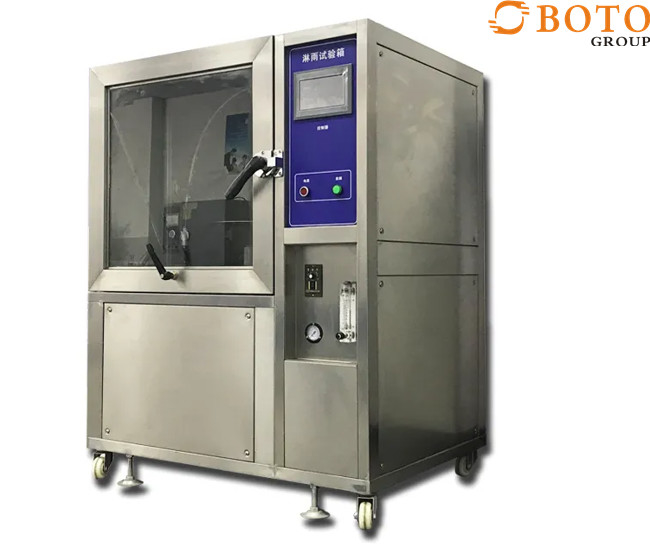

Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 2





Waterproofing test class:

There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.



IEC/EN60529 Waterproofing is divided into 9 classes (Class 0 to Class 8), waterproofing classes (e.g. IPX4- Waterproofing class 4) :

Level 0: completely waterproofing without protection

Level 1: Vertical dripping should have no harmful effect

Level 2: When each vertical plane of the case is tilted within the range of 15°, the vertical dripping shall have no harmful effect

Level 3: Water is sprayed within 60° of each vertical plane, without harmful effects

Level 4: Splashing the shell in all directions has no harmful effect

Level 5: Spraying water in all directions to the enclosure has no harmful effect

Model:
Model B-LY

Internal Dim(mm)
custom
 SOT(mm) undetermined
structural features  Radius of arc pendulum tube 400mm
 Right Angle pendulum tube length 500mm
Water jet pressure 50-400kpa
Right Angle swing pipe spray diameter 16mm
 Water tank material High-grade stainless steel plate

Our company:

Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 3

Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 4

Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 5

Packing/Shipping:
Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 6
Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 7
Rain Test Chamber Manufacturer Automatic Laboratory Machine Simulation Chamber IEC 60529 8

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally,

we offer 12 months for the FREE maintenance, while considering of sea transportation,

we can extend 2 months for our customers.

If your machine doesnt work, you can send E-mail to us and we will try our best to find

the problem by email or skype video chat if neccesary. After confirmation of the problem,

we can send you new spare parts or provide on-site repair.

2. Whats the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider

making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.
