| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CY-250 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Temperature Range: | 0℃-70℃ | External Dim: | 50x60x75 |
|---|---|---|---|
| Model: | B-CY-250 | Test Apparatus: | Dynamic And Static (optional) |
| Gas Flow Rate: | 12-16mm/s | HighTemp Rang: | ＋80℃～200℃ |
| Ozone Generator: | Silent Discharge Tube Type | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Sample Rack Rotation Speed: | 360 Degree Rotating Sample Holder | Time Controller: | Precision Hours,minutes,seconds Time Controller |

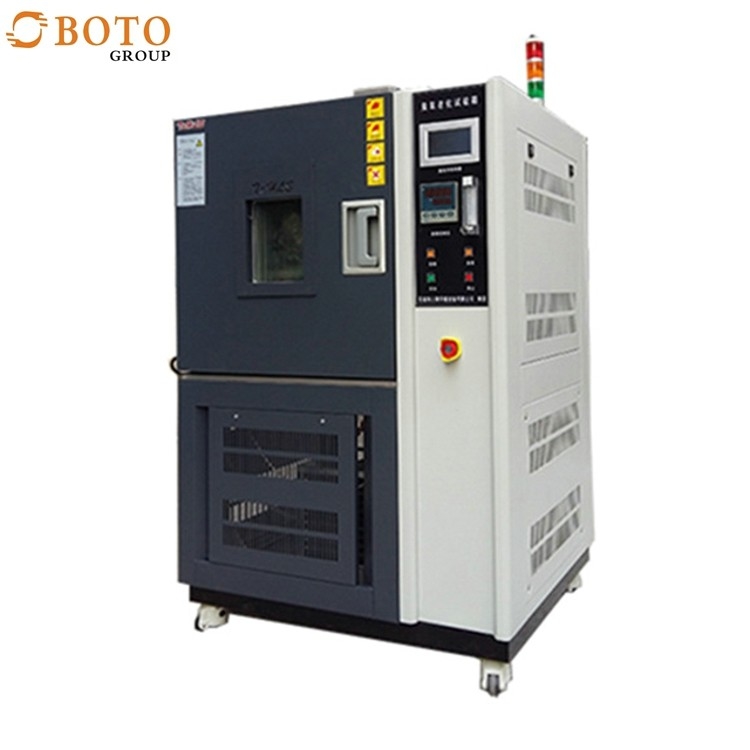

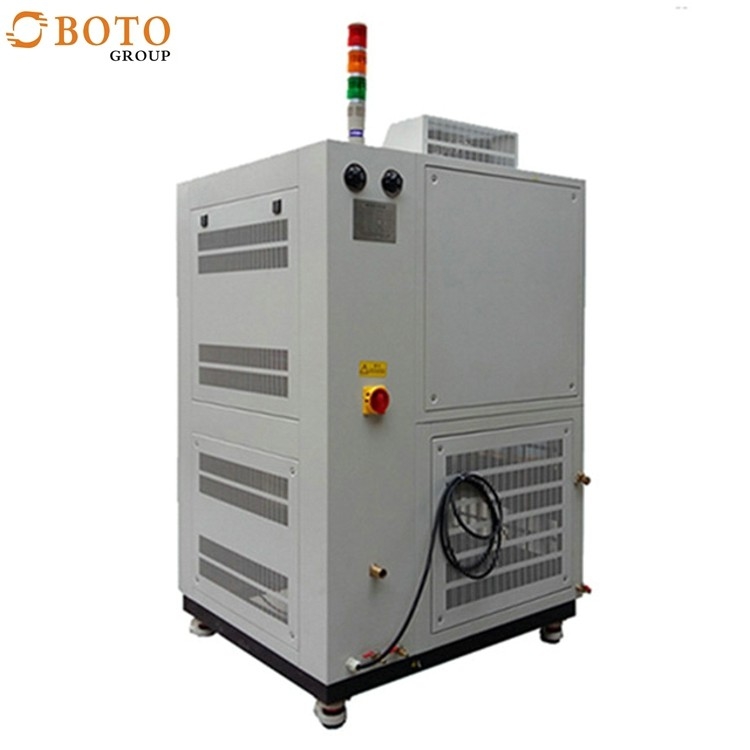

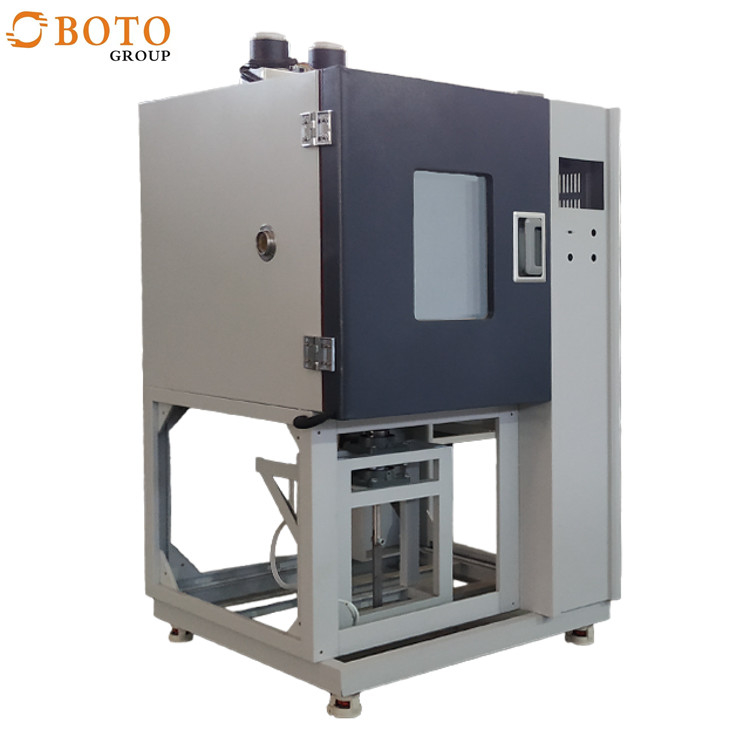

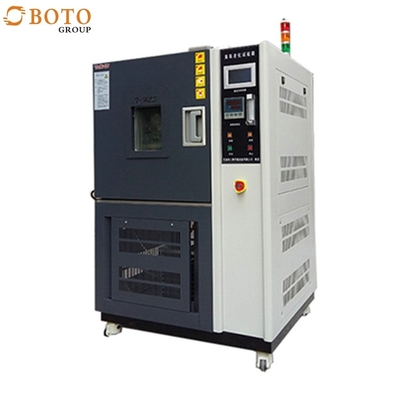

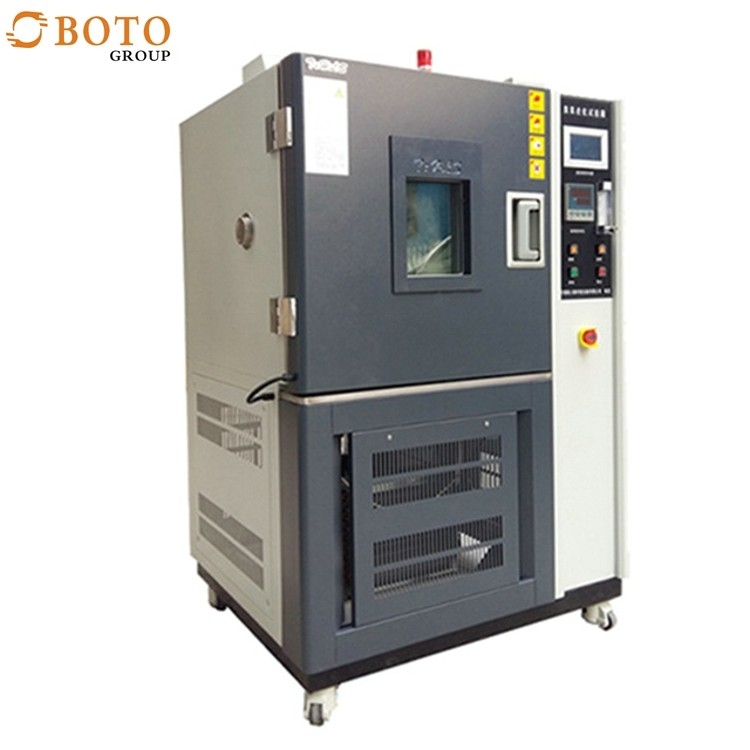

Over-Current Protection Ozone Aging Test Chamber Dynamic B-CY-250 GB/T2951.21-2008
Product purpose:
An ozone test machine is a device used to measure the concentration of ozone gas in the air. It consists of a sensor that detects the presence of ozone and a display screen that shows the measurement results. The machine may also have a built-in data logger for recording measurements over time. Some ozone test machines are portable and handheld, while others are designed for stationary use in industrial or laboratory settings. They can be used for indoor air quality testing, ozone generator performance testing, and compliance with regulatory standards for ozone exposure limits.
MOST POPULAR STANDARDS:
The ozone test machine standard is set by international organizations such as the International Organization for Standardization (ISO) and the American Society for Testing and Materials (ASTM). The standard test method for ozone resistance of elastomers is ASTM D1149. This method specifies the procedures and equipment required to determine the resistance of elastomers to cracking and degradation when exposed to ozone in a controlled environment. The ISO 1431-1 standard also provides guidance for the testing of rubber and elastomers for ozone resistance. These standards ensure that ozone test machines produce accurate and reliable results that can be used to evaluate the performance of materials in various applications.
Equipment summary:
Ozone is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Main feature:
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Main material of equipment:
1, the shell cold plate spray/inner stainless steel.
2, AI digital display intelligent program control regulator. 3, gas flowmeter, precise control of gas flow at all levels. Equipped with "QUA" non-dispersive ultraviolet ozone detector (the most reliable and popular method for ozone detection in the world).
4. Beer-lambert Principle measurement application software (internationally recognized).
5, equipped with gas purifier, constant temperature tank, active carbon absorption and silica gel drying tower.
6, the ozone air flow is parallel to the sample.
7, optional remote monitoring software (available PC print test data).
8. Interfaces for classical chemical testing of ozone concentration are provided.
9, the test box is provided with a regulated power supply.
Model |
B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
Internal Dim(DxWxH) |
45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
Ozone concentration |
0-200PPm.0-300PPm | ||||
Temperature fluctuation |
±0.5℃ | ||||
test apparatus |
Dynamic and static (optional) |
||||
Sample rack rotation speed |
360 degree rotating sample holder (1 rpm per minute) |
||||
Gas flow rate |
12-16mm/s | ||||
Temperature Controller |
Imported LED digital display P.L. D+5.5, R microcomputer integrated controller |
||||
Time controller |
Precision hours,minutes,seconds time controller |
||||
Ozone concentration analysis |
Imported concentration analysis regulator 4-20mA outputs,RS232 communication port |
||||
Ozone generator |
Silent discharge tube type |
||||
Security protection |
Leakoge,short circuit,over temperature,motor overheating.over-current protection |
||||
