| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TCT-403 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal Dim （CM）: | 50x50x50 | External Dim（CM）: | 138x205x200 |
|---|---|---|---|
| Low Temp Range: | -10℃--60℃ | Model: | B-TCT-403 |
| Recovery Time: | Within 3 Minutes | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Sample Weight: | 5KG | Interior: | SUS#304Stainless Steel Plate |
| HighTemp Rang: | ＋80℃～200℃ | Power Source: | 19KW |
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 GJB/Z34-5.1.6
Description:

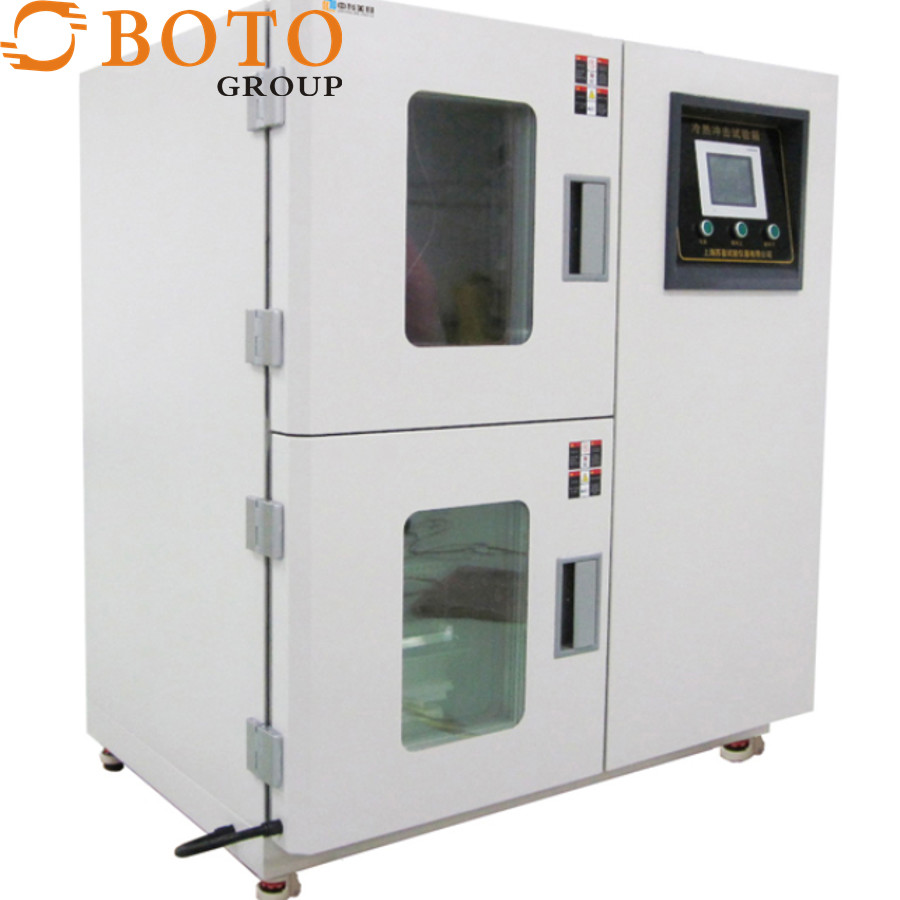

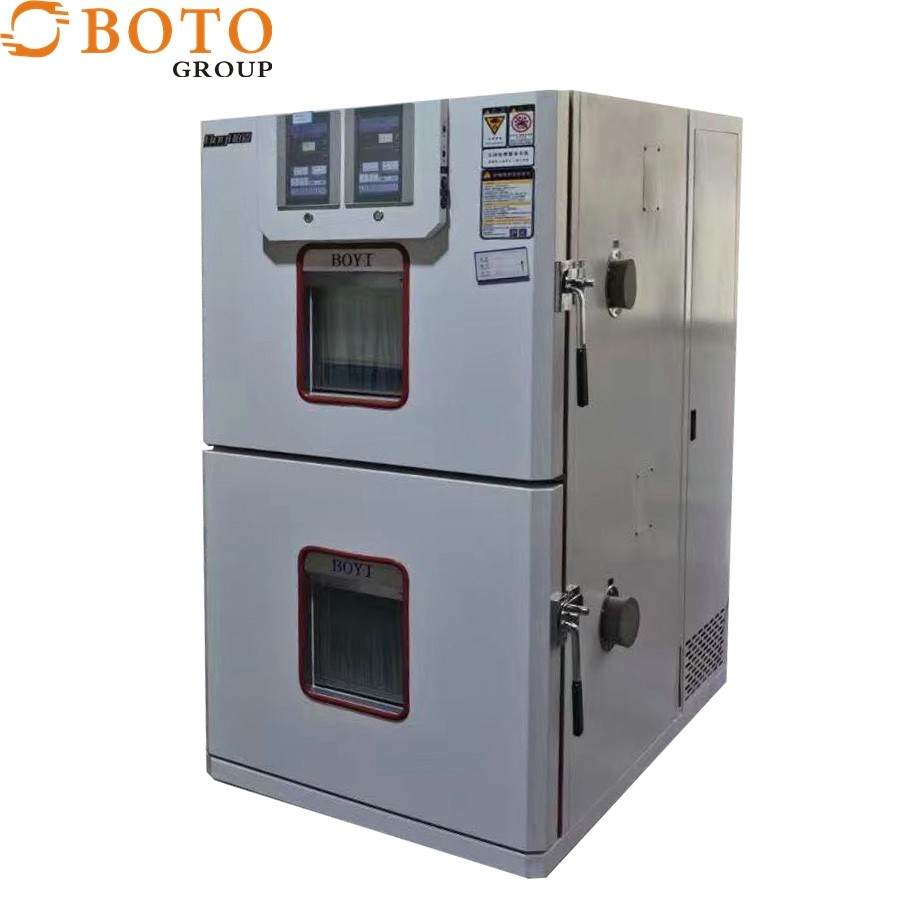

A two box-type hot and cold impact chamber is a testing equipment used to simulate various environmental conditions that a product may encounter during its lifetime. The chamber consists of two separate boxes, one for the hot environment and the other for the cold environment. The hot box is heated using a heating element, while the cold box is cooled using a refrigeration unit. The temperature in each box can be controlled independently, allowing the user to create a wide range of temperature conditions. The product being tested is placed in the chamber and subjected to alternating hot and cold temperatures to simulate thermal shock. This type of testing is particularly useful for electronic components, as they can be sensitive to temperature changes. The impact chamber can also be used to test the durability of products under extreme temperature conditions. This can be important for products that are used in harsh environments, such as aerospace, military, or automotive applications. Overall, the two box-type hot and cold impact chamber is an important tool for product testing and quality assurance, helping to ensure that products can withstand the environmental conditions they are likely to encounter in the real world.
Main Features:

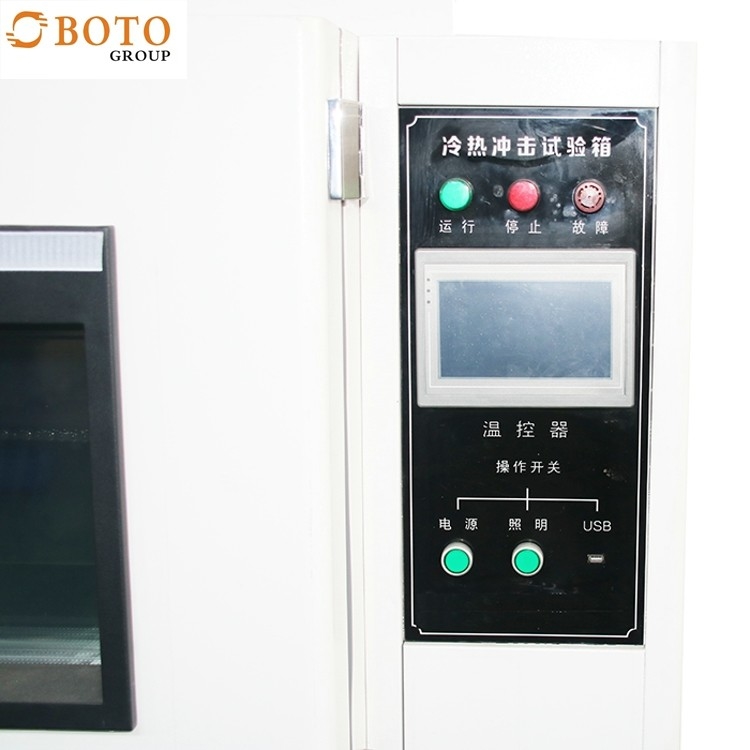

1. Large color LCD touch interactive microcomputer control system, easy to understand, running at a glance;
2. Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature
refrigeration systems;
3. A LAN network communication interfaces to computer remote control, easy to use.
4. Independently set the heat, cold and hot and cold conditions, the impact of three different function, the impact of the
implementation of hot and cold conditions, with high and low temperature testing machine functions.
5. Operation at boot time automatically make an appointment ahead of pre-cooling, preheating, standby.
6. Defrost cycles can be set and the number of automatic (manual) defrost.
7. Controller friendly interface and easy procedure setting, abnormal and troubleshooting display complete.
Applicable Industries:
Widely used in aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear
energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments building materials ceramic; petroleum and chemical products, machine and spare parts.
1) Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2) Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
3) Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
4) Built-in mobile pulley easy to move and has a strong positioning screw fixed position.
Two Box-Type Hot And Cold Impact Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Model:
| (Model) | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal Dim (CM) | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | |
| External Dim(CM) | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | |
| Sample Weight | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp Rang | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | Within 3 minutes | |||||||||

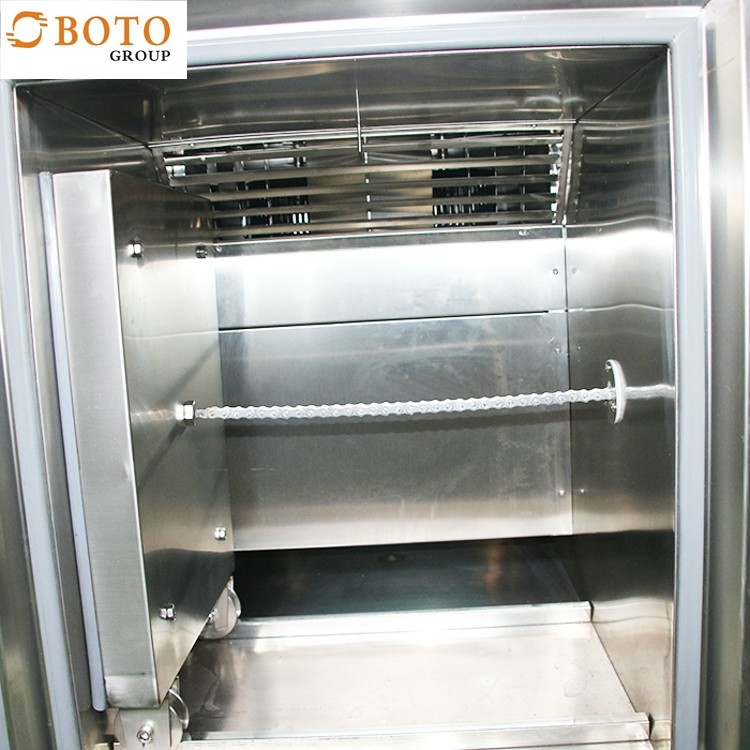

| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 13.5KW | 15KW | 19KW | 13.5KW | 15KW | 19KW | 15KW | 19KW | 22KW | |
