External Dim: | 162x184x112 | Exterior: | Coating Or SUS#304Stainless Steel Plate |
---|---|---|---|
Low Temp Range: | -10℃--60℃ | Test Temp Rang: | -40℃-150℃ |
Model: | B-XD-800 | Interior: | SUS#304Stainless Steel Plate |
Spectral Wavelength Region: | 290nm-800nm | Internal: | 40x35x35 |
HighTemp Rang: | +80℃~200℃ | Radiation Intensity Of Xenon Lamp: | 550W/m² |

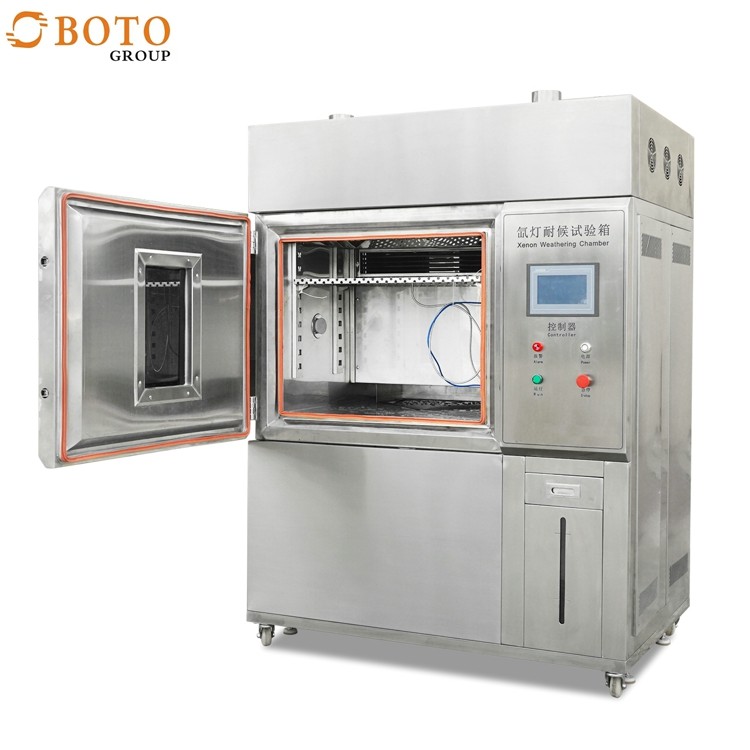

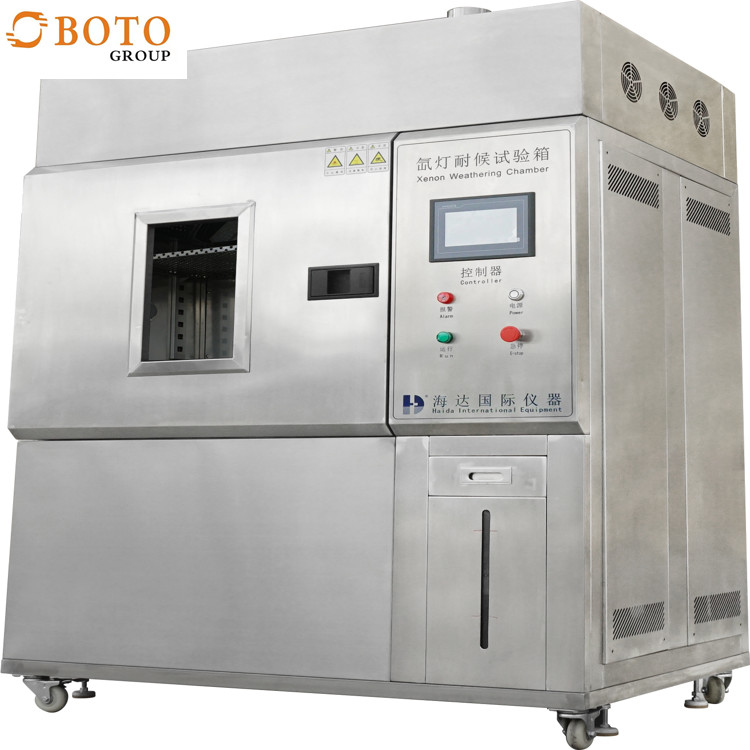

Environmental Test Chambers Xenon Lamp Aging Chamber Lab Test Instrument NABMAT-9492
A Xenon Lamp Aging Chamber is a specialized piece of equipment used to simulate the effects of aging on various materials and products. It consists of a chamber with a xenon lamp that emits high-intensity light in a spectrum similar to natural sunlight. The lamp is capable of producing a range of temperatures and humidity levels, allowing for precise control of the testing environment.
The materials or products being tested are exposed to the light and environmental conditions for a specified period, typically ranging from a few days to several weeks or even months. The goal of the test is to evaluate how the materials or products will perform over time, including their resistance to UV radiation, color fading, and physical degradation.
Xenon Lamp Aging Chambers are commonly used in industries such as automotive, aerospace, and construction, where materials and products are exposed to harsh environmental conditions. The testing helps manufacturers determine the expected lifespan of their products and make improvements to ensure their durability and longevity.
Unversal Standard:
IEC 68-2-9, Basic Environmental Testing Procedures
It has the following performance characteristics:

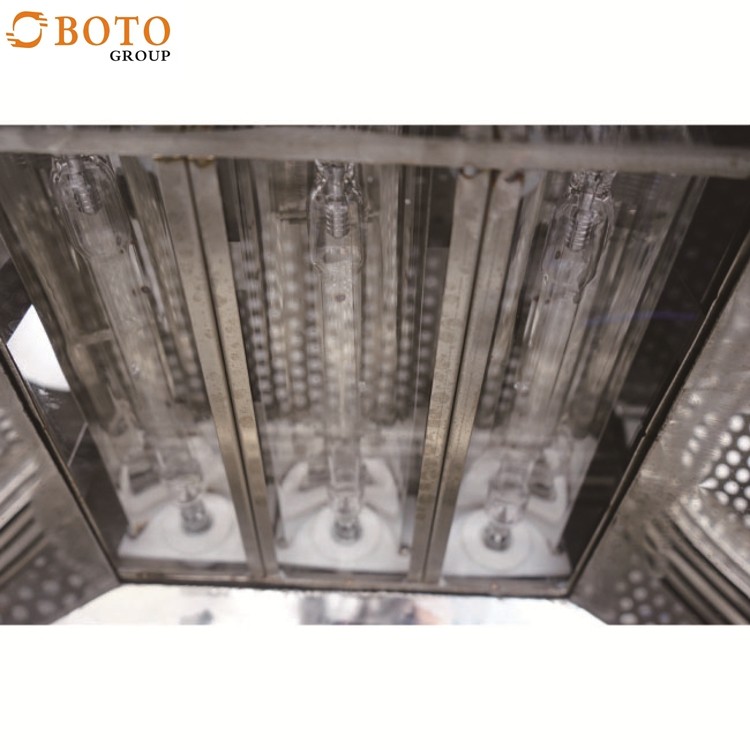

1. Adopt full-spectrum xenon lamp luminescent tube;
2, a variety of filter system for choice;
3, rain spraying function;
4. Relative humidity control.
5, test chamber air temperature control system;
Rubber and Plastic:
Model |
B-XD-120 | B-XD-225 | B-XD-408 | B-XD-800 | |
Internal Dim(W*H*D) |
45x60x45 | 50x75x60 | 60x85x80 | 100x100x80 | |
External Dim(W*H*D) | 107x145x68 | 120x164x92 | 122x169x112 | 162x184x112 | |
Temperature range | RT+10℃~70℃ | ||||
Humidity range | 50%~90%RH | ||||
Radiation intensity of xenon lamp | 550W/m² | ||||
Spectral wavelength region | 290nm-800nm | ||||
rainfall time | 0-9999/min | ||||
Total power xenon lamp | 2KW/6KW | ||||
type of cooling | forced air cooling/water-cooling | ||||
Interior | SUS#304Stainless steel plate | ||||
External material | Coating or SUS#304Stainless steel plate | ||||
Power Source |
AV:220V/380V 50/60Hz |
