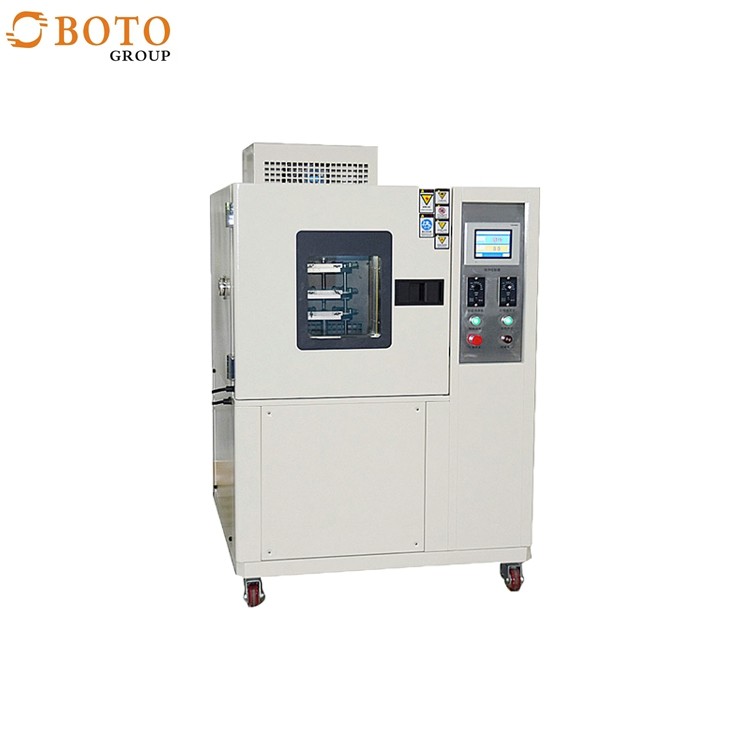

G82423.22 87Nb Mathine Climatic Chamber Manufacturer Small High And Low Temperature Test Chamber
Temperature Control System 1.The controller is 4.3 inch pure touch screen controller, which can calculate automatically, display PV/SV at the same time and set touch; (Fig.) 2. Timing function: Timing function in instrument; 3. Temperature sensitive line (PT100); 4. Signal output is 3-32V. 5. The heating controller is: SSR solid state relay has no contacts; 6. The heating material is: high temperature resistant heating tube; 7. Temperature range: RT+50-350 C; 8. Heating rate: 100 C for about 15 minutes 9. Control accuracy (+0.5 C); 10. Display accuracy is 0.1 C. 11. Distribution uniformity of temperature deviation in the box (+2.0 C%). (No-load test) 12. Supporting USB Historical Data Export Air supply system 1. Air circulation system: forced internal air supply cycle; 2. The motor is a high temperature resistant special type with a power of 370W/220V. 3. The wind wheel is a multi-wing turbine type of 7.5 inches. 4. There is one air inlet on the right side and one air outlet on the left side. Power Supply Devices 1. Voltage AC 220V Single Phase 2. Power 3.5KW
Safety Protection System

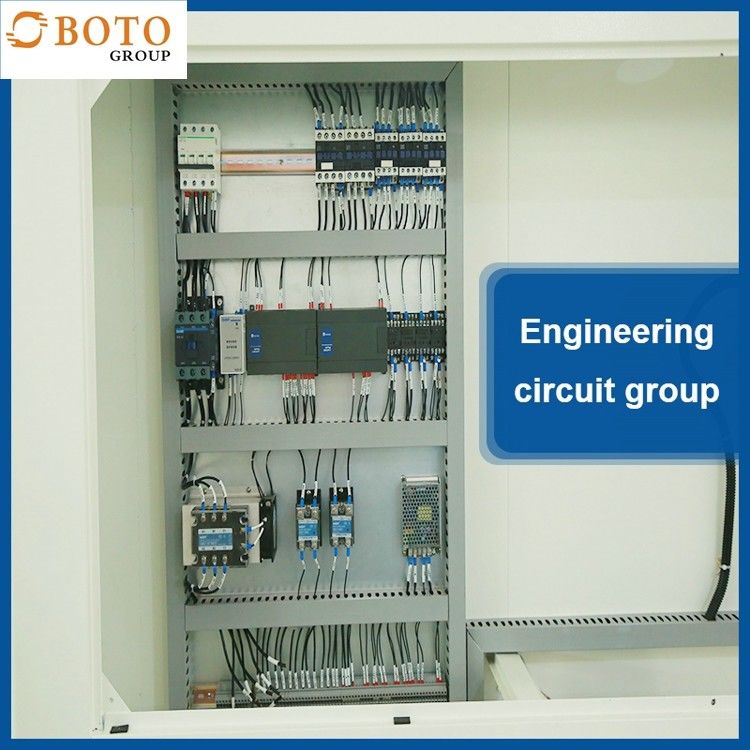

1. Overtemperature protection system: When the temperature runs out of control and exceeds the set temperature of the overtemperature protector, automatically stop heating and power supply, so as to protect the safety of your products and machines; 2. Circuit protection: grounding protection, fast insurance, circuit breaker, etc
Chamber structure size
1.Internal dimension:2000 (W) *2000 (H) *2000 (D) mm; 2. External dimension: 2500 (W)x 3000 (H)x 2700(D) mm is based on physical object. 3. Operating panel: The control panel is located above the platform. 4. Opening mode: single door opens from right to left; 5. The inner material is 430 mirror panel, 1.0 mm thick. 6. External material: cold rolled steel plate, 1.0 mm thick, powder paint treatment; 7. Interlayer: The inner box can be divided into two layers, and the distribution network board has two layers. 8. Thermal insulation material: high temperature resistant rock wool, good thermal insulation effect; 9. Sealing material for doorway is: high temperature resistant silicone strip; 10. Platform is equipped with brake-type movable casters, which can be moved and fixed.
Standard Compliance:
This product meets the requirements of GB/T2423.1-2001 GB/T2423.3-1993 GB/T2423.2-2001 and other national standards, as well as other relevant standards.
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.

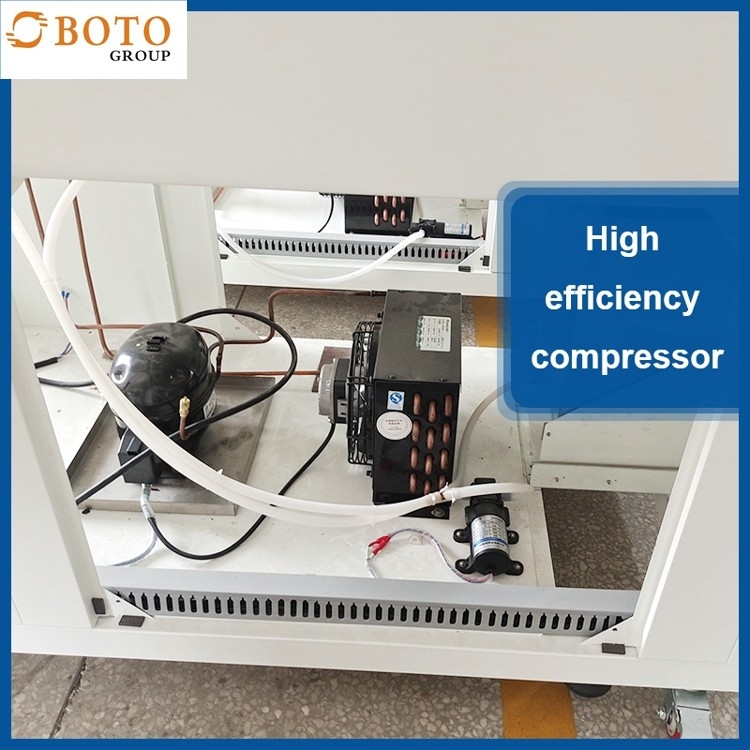

5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Product specification:
| Name |
Small high and low temperature test chamber |
Table type constant temperature and humidity test chamber |
| Model |
Dry Heat |
B-T-107(A-D) |
B-T-48L (A~D) |
| Damp and Hot |
|
B-TH-48L (A-D) |
| Internal Dim |
30.5x23x29 |
40x40x30 |
| External Dim(W*H*D) |
53x68x72 |
60x80x107 |
| Relative Humidity |
‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) |
’7.081- -60℃~150℃(100℃)
(A:0℃ B:-20℃ C:-40℃ D:-60℃ |
| Relative humidity Range |
20%~98%RH |
| Heat-up time |
About3℃/min |
| Pull down time |
About0.7~1℃/min |
| Temp Fluctudtiont |
±0.5℃ |
| Temp Uniformity |
±1.0℃ |
| Temp Deviation |
±1.0℃ |
| Power Source |
AV:220V/380V 50/60Hz |
| Power(KW) |
1KW~2KW |
1.5KW~2.5KW |
About us:
Certifications:
Packing:
Fully packed with PE film;
Wooden box;
Machine is fastened to the corners of the containers;
If export to European countries, the wooden box will be fumigated;
Customized package is available.
Shipping:
FAQ:
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
