Name: B-ZW Power 4KW UV-A UV-B UV-C Accelerated Ageing And Weathering Tester Machine
Brand: BOTO GROUP LTD
SKU: B-ZW
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

B-ZW Power 4KW UV-A UV-B UV-C Accelerated Ageing And Weathering Tester Machine

4KW UV weathering tester machine

UV accelerated ageing tester

UV-B environmental test chamber

Place of Origin:

China

Brand Name:

BOTO

Certification:

IEC ISO

Model Number:

B-ZW

Request A Quote

B-ZW Power 4KW UV-A UV-B UV-C Accelerated Ageing And Weathering Tester Machine

Product Details

Humidity Range:

≥95%R.H

Ultraviolet Wavelength:

290nm-400nm UV-A、UV-B、UV-C

Distance Between Tubes:

35mm

Safety Protection:

Leakage, Short Circuit, Over Temperature, Water Shortage, Over Current Protection/controller Power Failure Memory

Distance Between Sample And Tube:

50mm

Material:

304Stainless Steel Plate

Highlight:

4KW UV weathering tester machine

UV accelerated ageing tester

UV-B environmental test chamber

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiable

Packaging Details

wooden case

Delivery Time

5-15days

Payment Terms

L/C, T/T, Western Union, D/A, D/P

Supply Ability

2000PC/Month

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

Environmental Stress Cracking Tester B-ZW Power 4KW UV-A UV-B UV-C

Description:

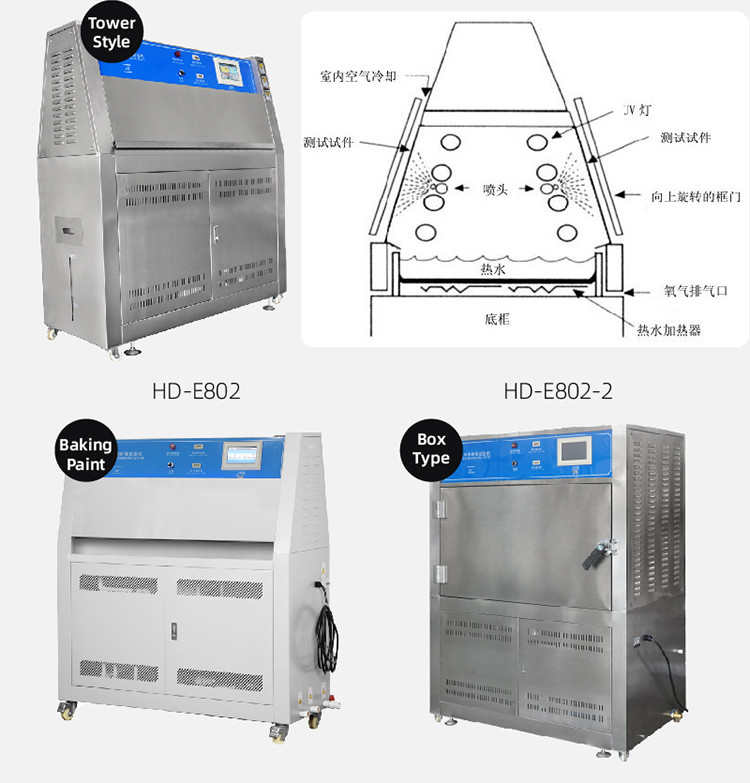

The UV Accelerated weathering test chamber stimulates dew and rain with consideration for humidity and/or water spray equipped with a fluorescent UV lamp which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It’s most widely used weathering tester to test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation. The source adopts 8 pieces of UV lamps of 40W as the light source. The lamps are distributed on the two sides of machine, 4 pieces for each side (UVA-340 and UVB-313 optional), 8 pieces in total .

Innova UV Aging test chamber designing Standard: IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020, ect.

It has the following performance characteristics:

The heating mode is the inner tank heating, fast heating and uniform temperature distribution

The drainage system uses reflux type and U-type sedimentation device to drain water

The distance between the sample surface and the UV lamp plane is 50 mm and parallel

The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal

Automatic water refill of tank water level

The lid is bidirectional clamshell type, easy to open and close

High quality fixed PU movable wheel is used at the bottom of the test chamber

Model:

Model		B-ZW
Internal Dim(DxWxH)		50x75
External Dim(DxWxH)		58x128x135
power(kw)		4KW/3.2kW
performance index	Temperature range	RT+10℃-70℃
	Humidity range	≥95%R.H
	Distance between tubes	35mm
	Distance between sample and tube	50mm
	ultraviolet wavelength	290nm-400nm UV-A,UV-B,UV-C
	Lamp wattage	40W
safety protection		Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory

B-ZW Power 4KW UV-A UV-B UV-C Accelerated Ageing And Weathering Tester Machine 4

B-ZW Power 4KW UV-A UV-B UV-C Accelerated Ageing And Weathering Tester Machine 5

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
