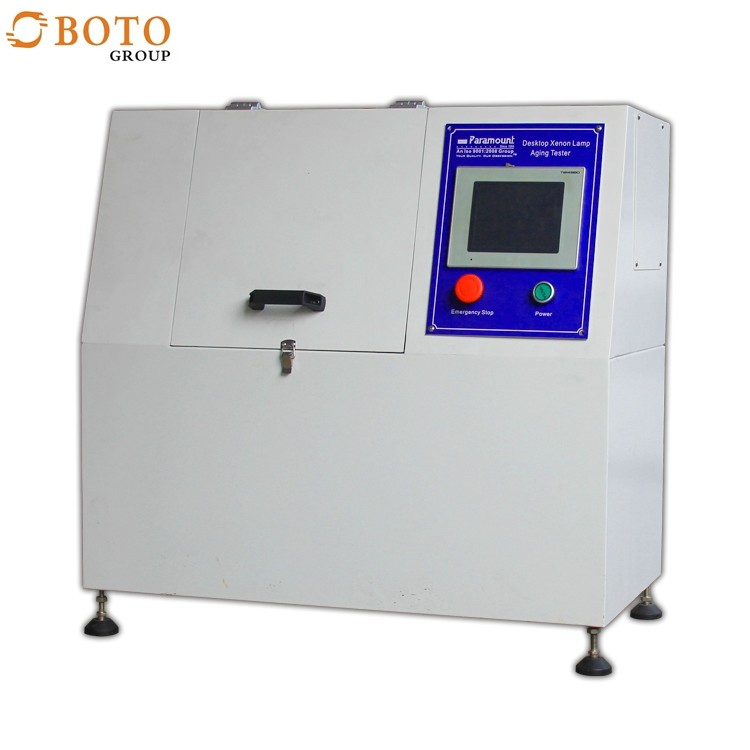

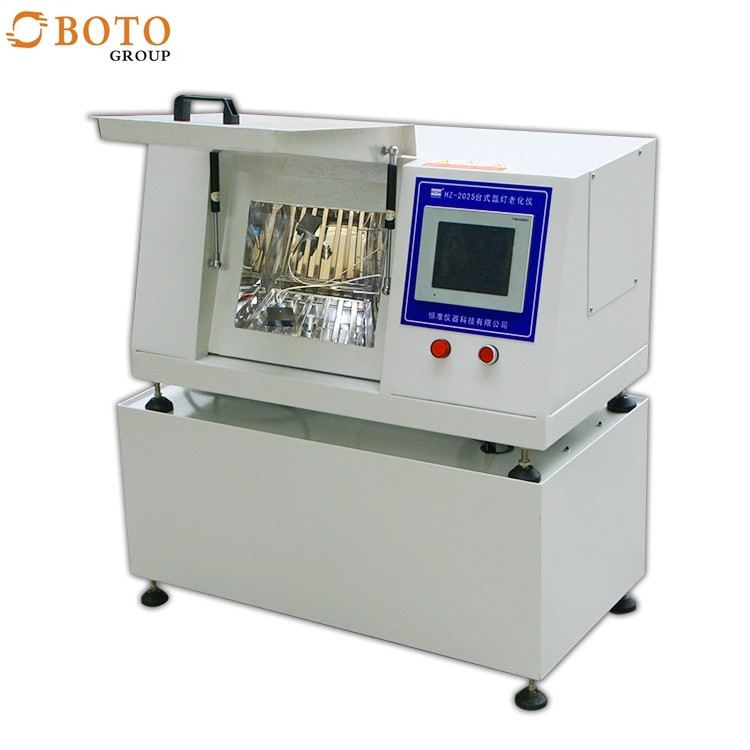

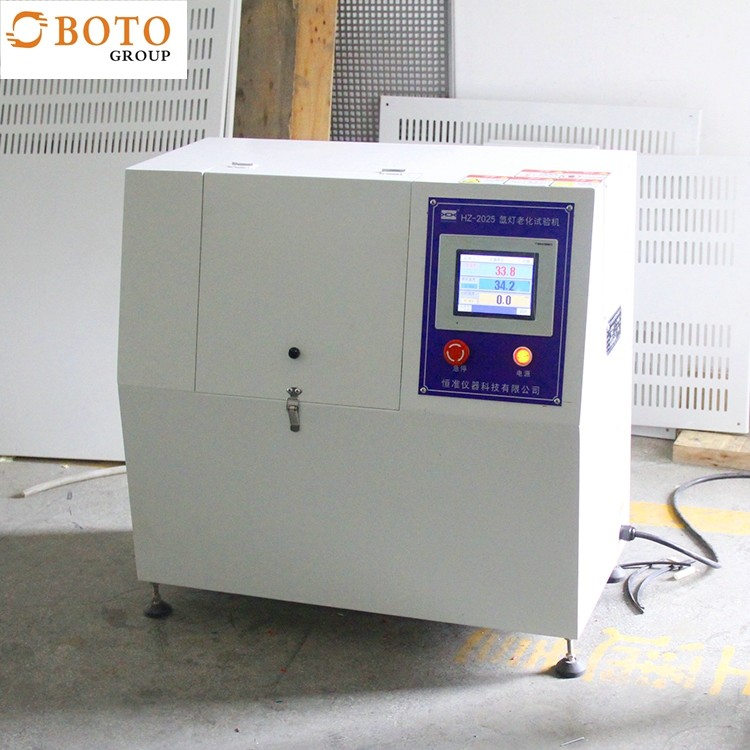

Xenon Lamp Aging Chamber DIN50021 Environment Test Chamber Climatic Chamber Manufacturer
Description:
This series chamber is to simulate and strengthen the natural climate influenced by solar radiation, temperature, humidity, condensation, rain and other major aging damage environmental factors, observation and analysis the change of material. The test chamber is for doing ground solar radiation test, to view the influence of equipment and components, the main features on simulation environment are the ground observed solar spectrum energy distribution and the strength of the composite absorbing energy with control temperature conditions.
It is mainly used in the nonmetallic materials, organic materials (paint, coating, rubber, plastic, etc.) in simulated climate aging test. And widely used in: rubber, plastic, paint, oil, chemical industry, automobile, textile and other industries.
Xenon aging test chamber can simulate the full sunlight spectrum of xenon arc lamp to reproduce the destructive light waves in different environments, to provide the appropriate environmental simulation and accelerated test for scientific research, product development and quality control.
Main Feature:
1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3, Temperature sensor: PT100 platinum resistance thermocouple.
4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.
5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.
The following are some of the characteristics of a Xenon Lamp Aging Chamber:
1. Controlled Environment: The chamber provides a controlled environment that can simulate a wide range of weather conditions, including temperature, humidity, and light intensity.
2. Accelerated Aging: The Xenon lamp emits high-intensity UV radiation that can accelerate the aging process of the test samples. This allows the testing to be completed in a shorter amount of time than would be possible with natural weathering.
3. Realistic Simulation: The Xenon lamp emits a spectrum of light that closely matches the natural sunlight, making it an ideal tool for simulating the effects of weathering on materials and products.
4. Versatile: The chamber can be used to test a wide range of materials and products, including plastics, textiles, coatings, and automotive components.
5. Precise Control: The chamber is equipped with advanced controls that allow precise adjustments of temperature, humidity, and light intensity to meet specific testing requirements.
6. Repeatable Results: The Xenon Lamp Aging Chamber provides repeatable and consistent results, making it an ideal tool for quality control and product development.
MAIN PARAMETER
| Item | Specification |
| Internal Dimension (W*D*H) | 800*800*800mm |
| External Dimension (W*D*H) | 1450*1350*2150mm |
| Inner chamber material | SUS 304 # Stainless Steel, Anti-rust, easy to clean |
| Outer chamber material | Stainless steel |
| Chamber Temperature | 40±3℃ |
| Temperature Uniformity | ≤3℃ |
| Blank panel temperature | 65±3℃ |
| Humidity Range | 50%-90% |
| Irradiated intensity | 0.35±0.02w/m²at 340nm |
| Xenon lamp power | 6.5KW water-cooled xenon lamp x 1pc |
| Control system | PLC controller, touch screen |
| Distance from specimen to arc center | 250~300mm, Effective exposure area 6400cm2 |
| Max. Sample dimension | 200*90mm Thickness<20mm |
| Filter | Daylight filter |
| Door seal | Silicone rubber seal |
| Temperature sensor | PT100 high precision temperature sensor |
| Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
| Cooling ventilator | Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system |
| Cooling ventilator | France Tecumseh compressor |
| Power | AC380V, 50Hz, three phase |
| Safety Protection |
Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning |
