| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | IEC ISO |
| Model Number: | B-PCT-30-L |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 2000PC/Month |
| Internal Dim: | 30x45 | External Dim: | 54x67x45 |
|---|---|---|---|
| Temperature Range: | +100℃-+135℃ | Relative Humidity: | 100％RH |
| Pressure Range: | 0.5-2kg/c㎡ | Time Range: | 000Hr-999Hr |
| Temperature Fluctuation: | ±0.5℃ | Temperature Display Accuracy: | 0.1℃ |
Product description

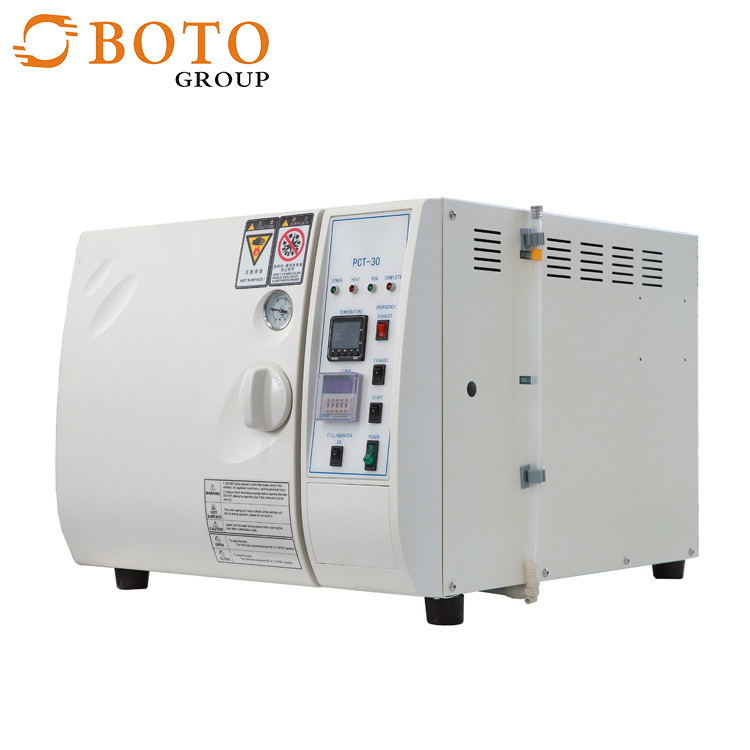

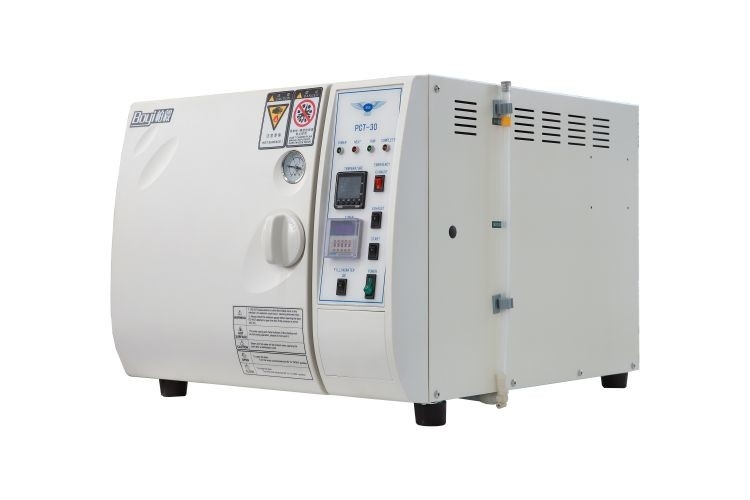

High pressure accelerated life testing machine laboratory equipment testing equipment lab machine PCT pressure chamber.It is mainly used to test the physical and other related properties of electrical, electronic products, components, parts, metal materials and their magnetic materials under the simulated climate conditions of high temperature, high temperature, high humidity and pressure, judge whether the performance of products can meet the requirements through verification, and provide help for the design, improvement, verification and delivery inspection of products.
Use
PCT test box is mainly used in the electrician, electronic products, components, spare parts, metal materials and its magnetic materials in the simulated high temperature and under high temperature and high humidity and pressure conditions, testing products and other related physical properties, through the test to determine whether the performance of the product can meet the requirements, so that for product design, improvement, verification and inspection.
Features
1. Adopting imported high resistance solenoid valve double-way structure, reducing the failure rate in use to the greatest extent.
2. Independent steam chamber to avoid direct impact of steam on products, so as not to cause partial damage of products.
3. The labor-saving structure of the door lock solves the locking difficulties and shortcomings of the disc handle of the first generation of products.
4. The cold air in the front row of the test is designed to exhaust cold air in the test (air discharge from the test barrel) to improve the pressure stability and reproducibility.
5. Super long effect experiment operation time, long time experiment machine operation 1000 hours.
6. Water level protection, detection and protection through the water level Sensor in the laboratory.
7. TANK pressure resistance design, the pressure resistance of the box body (140℃) 2.65kg, in line with the water pressure test 6kg.
8. Safety protection pressure discharge button, emergency safety device two-stage automatic pressure discharge button.
Structure
1. Inner drum material: stainless steel #SUS-316
2. The outer barrel is made of #SUS-304 stainless steel
3. Control system: RKC-CB100 microcomputer made in Japan is used to control saturated steam temperature, LED display is adopted for time controller, pressure gauge is displayed by pointer, PID microcomputer is used to automatically control saturated steam temperature, and manual water inlet valve is used.
Spec
| Model | B-PCT-30-L |
| Internal dim(cm) | 30x45 |
| External dim(cm) | 54x67x45 |
| Temperature range | 100℃~135℃ steam-saturation temperature |
| Humidity range | 100%RH |
| Pressure range | 0.5Kg~2.0Kg/cm2 Safety pressure 5Kg/cm*G |
| Time range | 000Hr~999Hr |
| Duration of sustained injection | 0.00Kg~2.00Kg/cm2 In about 45 minutes |
| Power source | single phase 220V 15A 50/60Hz |
| Temperature fluctuation | ±0.5℃ |
| Temperature display accuracy | 0.1℃ |
| Pressure fluctuation | ±0.02Kg |
| Humidity fluctuation | ±1%RH |
| Humidity uniformity | ±5%RH |
Certifications:
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Small High And Low Femperafure Fest Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
4.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
