Safety Protection: | Overload/ Overheating/ Leakage | Test Method: | ASTM B117 |
---|---|---|---|
Spray Nozzle: | 0.3mm~0.8mm | Spray Pressure: | 0.2Mpa~0.4Mpa |
Spray Distance: | 30cm~50cm | Product Name: | Salt Spray Test Chamber |
Test Humidity: | 95%RH | Test Time: | 48hrs~1000hrs |

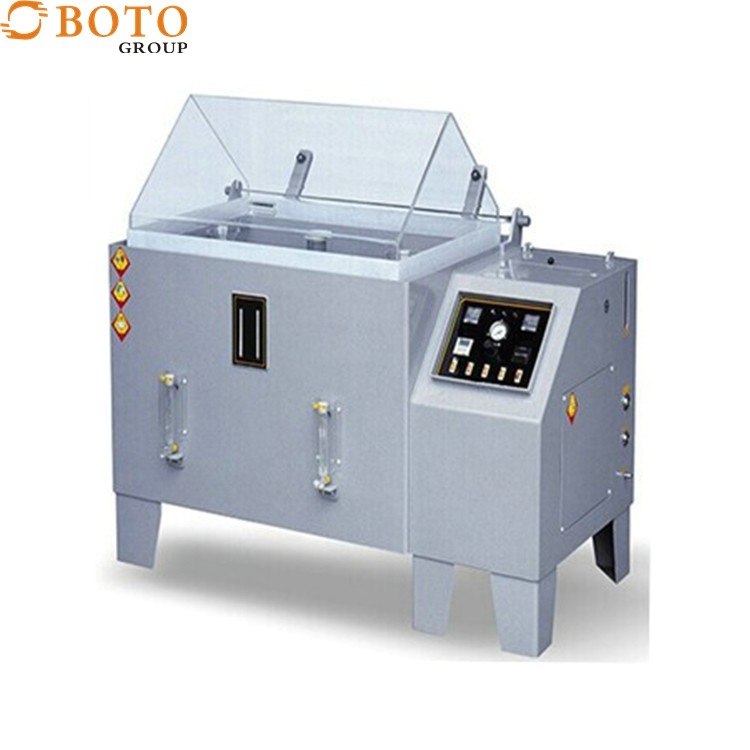

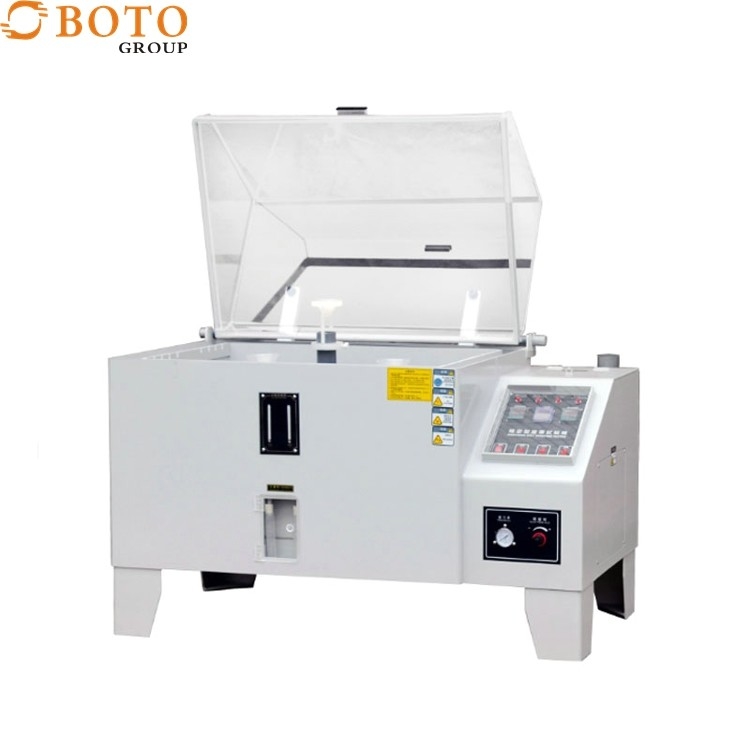

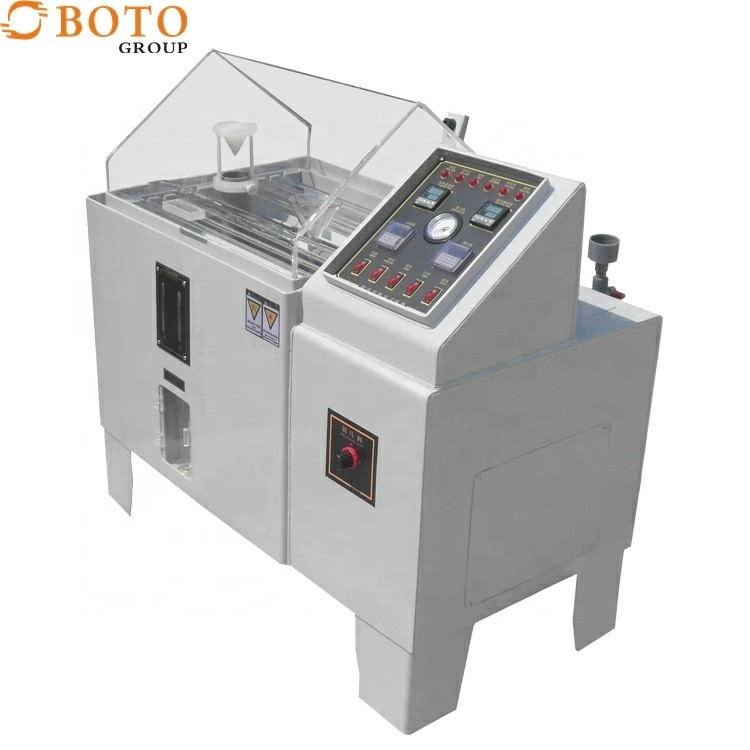

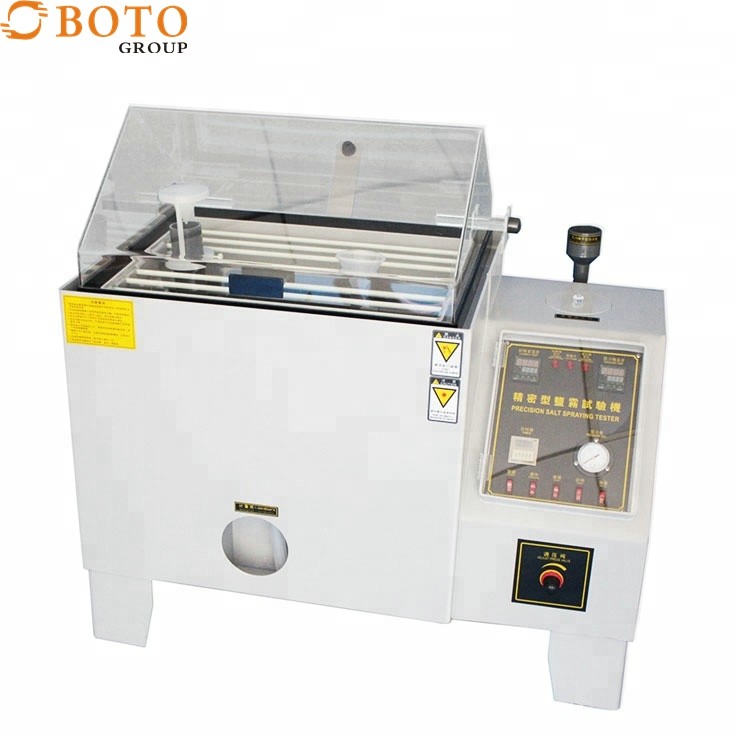

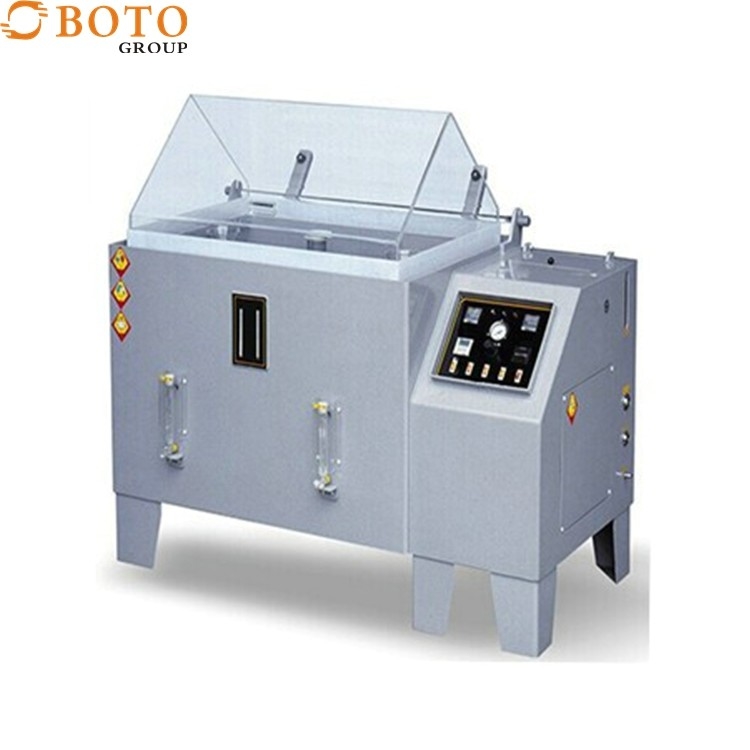

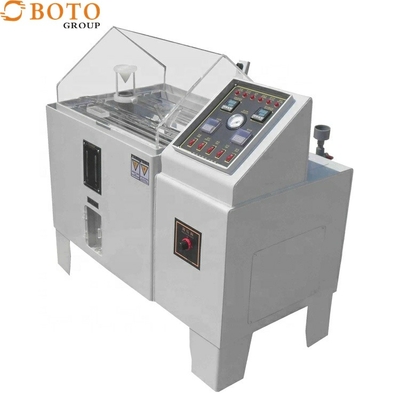

Salt Spray Test Chamber is a high-precision salt spray testing equipment with advanced anti-corrosion testing technology. It is designed for testing the corrosion resistance performance of various materials, such as corrosion resistant polymer materials. The testing chamber can provide a controlled environment with a temperature range of 35℃~55℃, humidity range of 95%RH and test area ranging from 0.09m2~2.25 m2. The spray volume can be adjusted between 1~2ml/80cm2/h, which is controlled by PLC/PC system for accuracy and efficiency.
Parameter | Value |
---|---|
Chamber Material | SUS304 |
Spray Pressure | 0.2Mpa~0.4Mpa |
Test Time | 48hrs~1000hrs |
Spray Volume | 1~2ml/80cm2/h |
Test Method | ASTM B117 |
Control System | PLC/PC |
Chamber Size | Customized |
Test Temperature | 35℃~55℃ |
Test Humidity | 95%RH |
Spray Nozzle | 0.3mm~0.8mm |
Salt spray corrosion test chamber is a high-precision salt spray testing equipment, developed by our company, with the brand name of B-SST-120. The model number is B-SST-120, which is made in China. The spray nozzle has a range of 0.3mm~0.8mm and the test area is 0.09m2~2.25m2, which makes it suitable for a variety of tests. The spray distance is 30cm~50cm, which ensures a wide coverage of the test area. The spray volume is 1~2ml/80cm2/h, which makes sure the test is accurate and reliable. The safety protection of this salt spray corrosion test chamber includes overload protection, overheating protection, and leakage protection, making it safe and secure to use. This anti-corrosion testing instrument is widely used for the corrosion protection of a variety of products, ensuring their reliability and longevity.
Brand Name: Salt spray corrosion test chamber
Model Number: B-SST-120
Place of Origin: China
Safety Protection: Overload/ Overheating/ Leakage
Spray Pressure: 0.2Mpa~0.4Mpa
Test Humidity: 95%RH
Product Name: Salt Spray Test Chamber
Test Method: ASTM B117
Our Salt Spray Test Chamber is a high-precision anti-corrosion testing instrument designed to simulate the natural environment of the atmosphere and assess the anti-corrosion property of the material in a short time. The salt spray test chamber is mainly used for salt spray test, corrosion test, anti-corrosion test, metal plating test, and so on. It is widely used in electroplating, paint, automobile, electronics, aerospace, and other industries.
The salt spray test chamber is equipped with safety protection devices, including overload protection, overheating protection, leakage protection, and others. It is precise and easy to use, with a wide range of temperature and humidity settings. The spray pressure of our salt spray test chamber is 0.2Mpa~0.4Mpa, and the test humidity is 95%RH. The test method is in accordance with the ASTM B117 standard.
Our Salt Spray Test Chamber is supported by a team of highly qualified and experienced technicians and engineers. We offer a range of services, including installation, commissioning, maintenance, repair, and calibration. We also provide technical support and advice to ensure that your Salt Spray Test Chamber is running optimally. We can provide training on the use of the system and can assist with troubleshooting any issues that arise. If you have any questions or concerns about your Salt Spray Test Chamber, please don’t hesitate to contact us.
The packaging and shipping of the Salt Spray Test Chamber shall be done in accordance with the following guidelines:
