Temperature Fluctuation: | ±0.3°C | Display: | LED Digital Display |
---|---|---|---|
Power(KW): | 2.5~7KW | Temperature Accuracy: | ±0.5°C |
Control System: | PID Microprocessor Control | Temperature Resolution: | 0.1°C |
Power Source: | AC:220V/380V 50/60Hz | Product Name: | Temperature Humidity Test Chamber |
The Temperature Humidity Test Chamber offers reliable and precise climatic control, with temperature accuracy up to ±0.5°C and temperature range from -70°C to +150°C (180℃). It provides a controlled environment for testing purposes which is suitable for a wide range of products. The pull-down time is about 0.7~1℃/min, and the exterior is coated with either SUS#304 stainless steel or other materials. The Precision Humidity and Temperature Control Chamber is ideal for various Controlled Environment Testing applications.
Parameter | Value |
---|---|
Temperature Range | -70°C To +150°C(180℃) |
Pull-down Time | About 0.7~1℃/min |
Temperature Accuracy | ±0.5°C |
Power Source | AC:220V/380V 50/60Hz |
Display | LED Digital Display |
Temperature Uniformity | ±0.5°C |
Power(KW) | 2.5~7KW |
Humidity Range | 20% To 98% RH |
Control System | PID Microprocessor Control |
Heat-up Time | About 3~5℃/min |
Specialized Tests | Climatic control test chamber, Environmental test oven, Temperature cycling chamber, Temperature and humidity chamber, Temperature shock chamber |

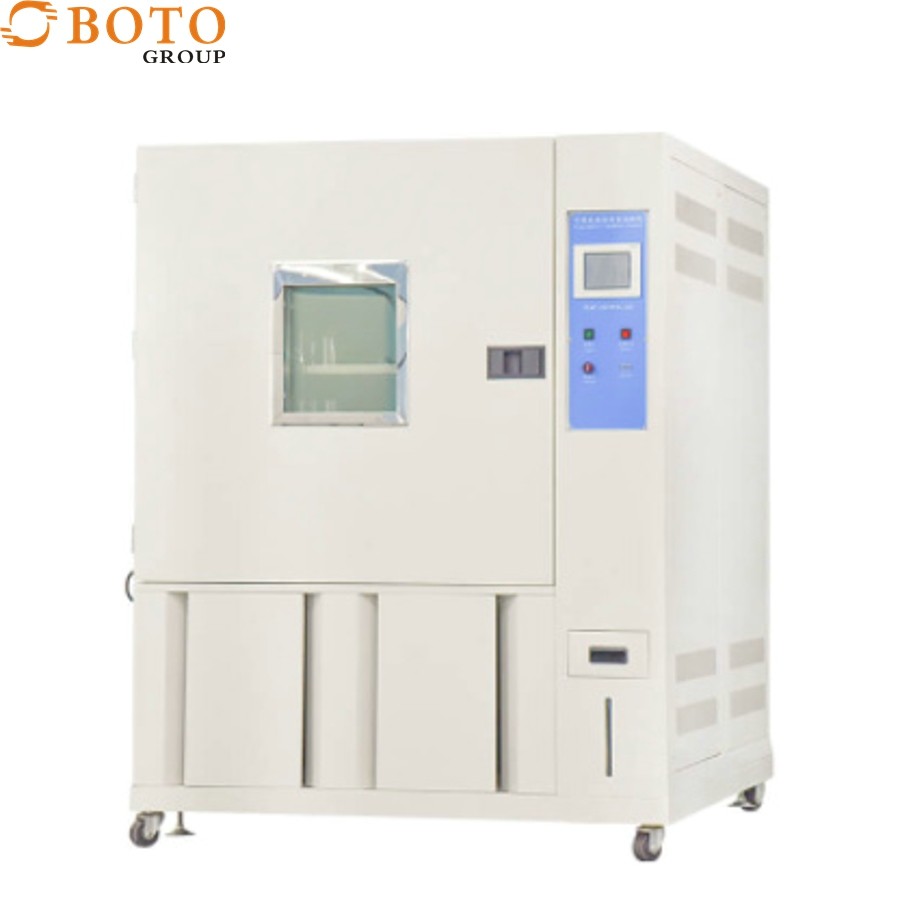

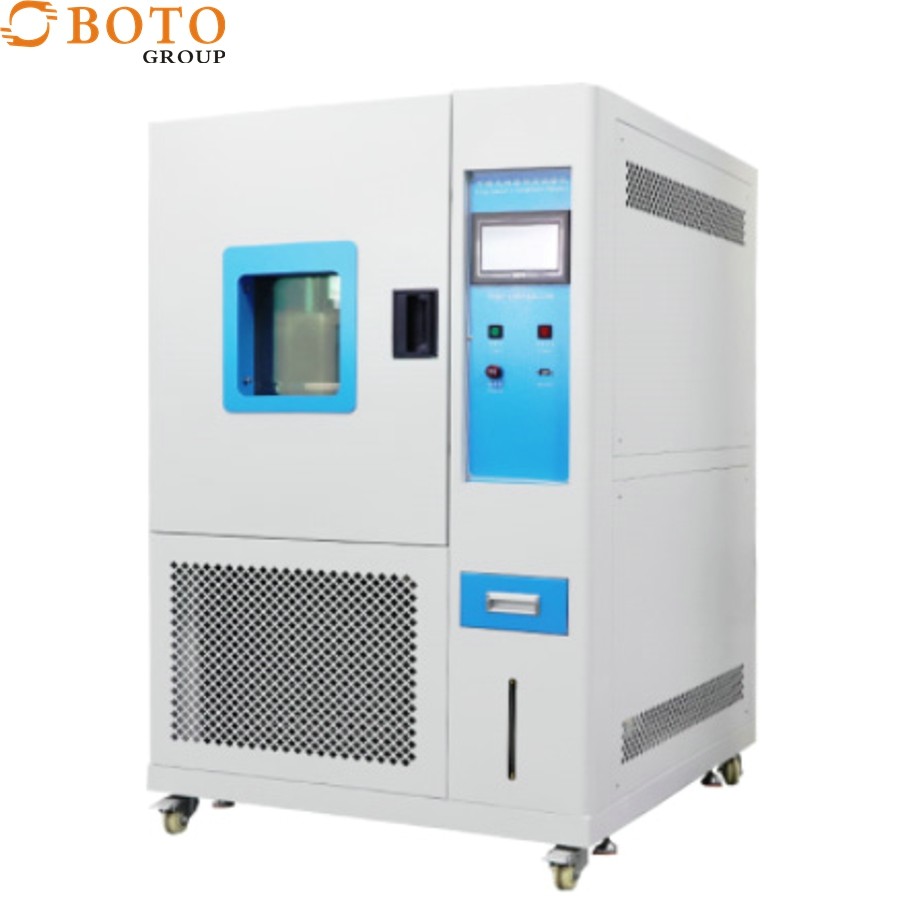

Temperature Humidity Test Chamber, branded BOTO with the model number B-TH-225, is the ideal solution for temperature and humidity stability test cabinet, controlled environment testing chamber and temperature cycling chamber. It is manufactured in China, and comes with ISO and CE certifications. It has an interior material of SUS#304 stainless steel, and with temperature accuracy of ±0.5°C and humidity accuracy of ±3.0% RH, it ensures precise temperature and humidity control with uniformity of ±0.5°C and pull-down time of about 0.7~1℃/min. The minimum order quantity for this product is 1 with a negotiable price, and it is packaged in a plywood wooden case for delivery within 10-15 days. The supply ability for this product is 1000/month and payment terms are done via T/T.
Brand Name: BOTO
Model Number: B-TH-225
Place of Origin: China
Certification: ISO CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood wooden case
Delivery Time: 10-15
Payment Terms: T/T
Supply Ability: 1000/month
Humidity Accuracy: ±3.0% RH
Safety Device: Over Temperature Protection
Product Name: Temperature Humidity Test Chamber
Temperature Range: -70°C To +150°C(180℃)
Pull-down Time: About 0.7~1℃/min
Climatic control test chamber, Humidity conditioning equipment, Temperature humidity stability test cabinet
At
If you need assistance with your Temperature Humidity Test Chamber, please don't hesitate to contact us. We are here to help!
Packaging and Shipping for the Temperature Humidity Test Chamber:
