| Place of Origin: | China |
|---|---|
| Brand Name: | UV aging test chamber |
| Model Number: | B-ZW |
| UV Wavelength: | 254nm | Humidity Fluctuation: | ±2.5%RH |
|---|---|---|---|
| Chamber Size: | Customized | Temperature Accuracy: | ±0.5℃ |
| UV Irradiance: | 0-1200mW/cm2 | Temperature Uniformity: | ±2℃ |
| UV Intensity: | 0-1.2W/m2 | Temperature Range: | RT+10℃-70℃ |

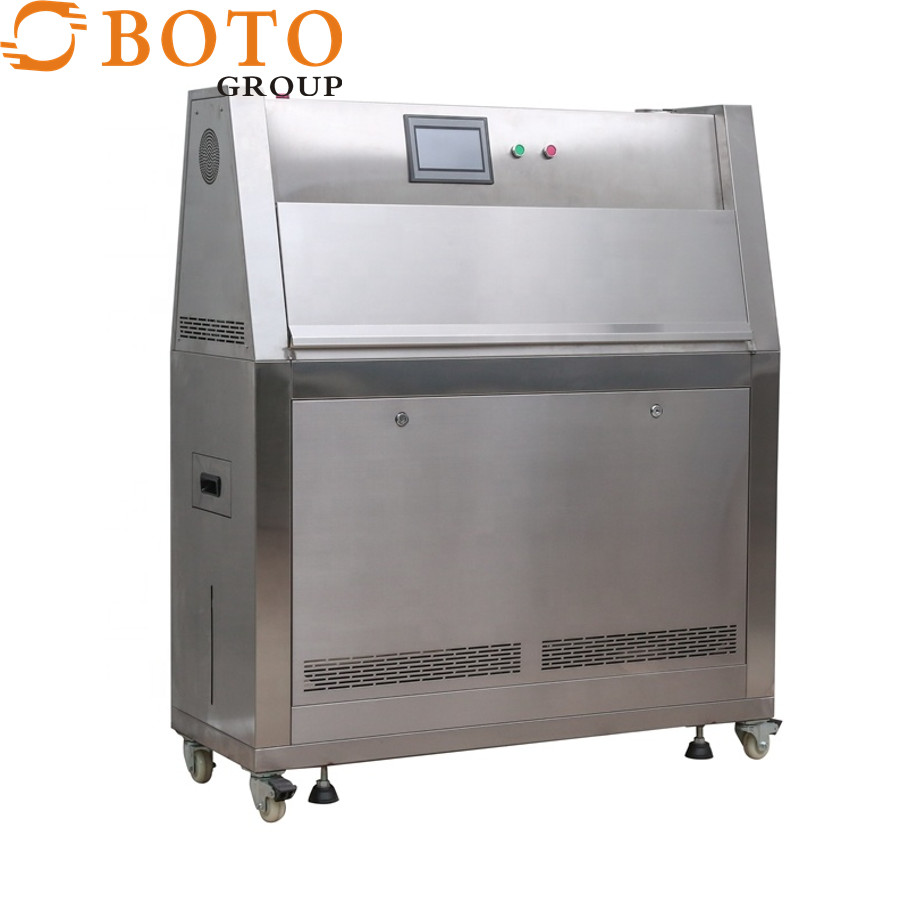

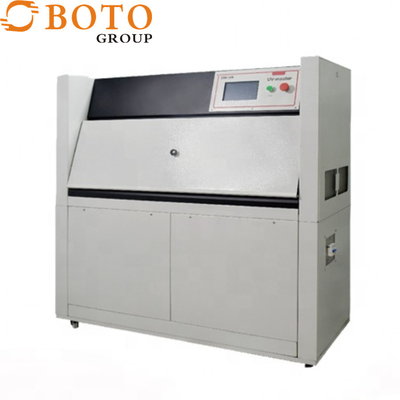

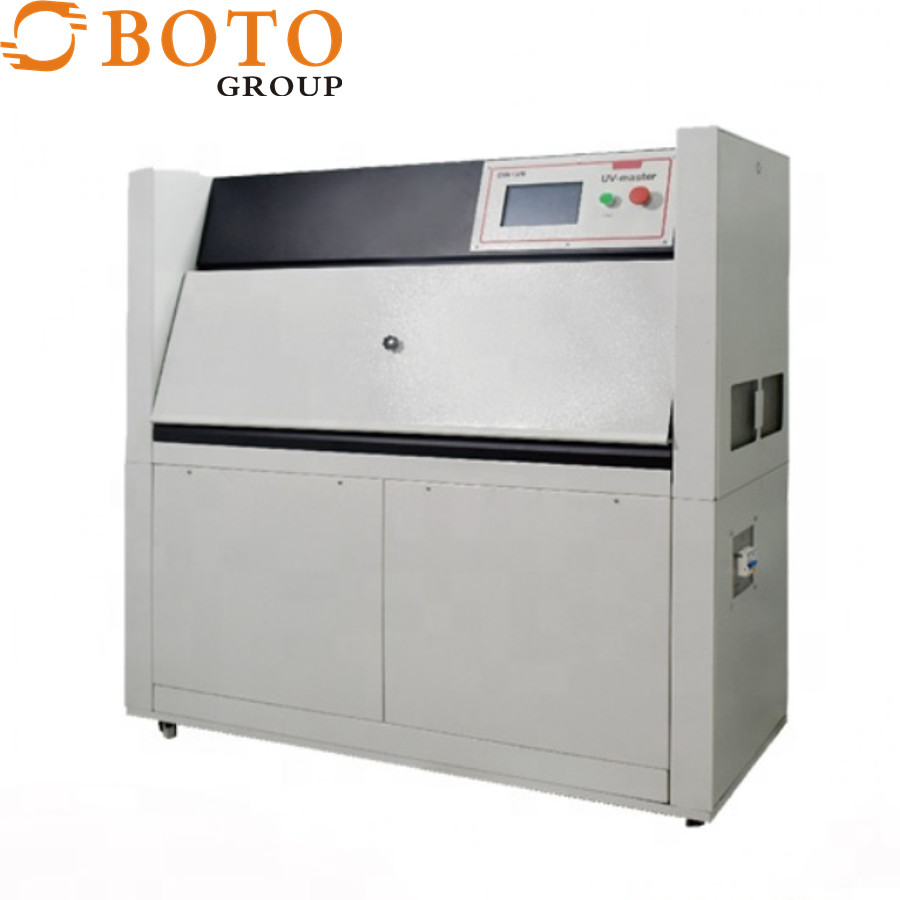

UV Test Chamber is an advanced UV aging test equipment, which is designed to test the product’s resistance to light aging performance. It is widely used for UV radiation aging test to simulate the natural environment and evaluate the physical properties and performance of materials or products. The test chamber is equipped with complicated control system which can provide accurate and reliable temperature and humidity control. The temperature range is from RT+10℃ to 70℃, and the temperature fluctuation and uniformity are both ±0.5℃ and ±2℃ respectively. The humidity range is from 20% to 95% RH, and the accuracy is ±2.5%RH. This UV Test Chamber is the ideal choice for evaluating the material or product’s performance under the simulated environment.
| Property | Value |
|---|---|
| Product Name | UV Test Chamber |
| Temperature Range | RT+10℃-70℃ |
| Humidity Range | 20-95%RH |
| Temperature Uniformity | ±2℃ |
| Temperature Fluctuation | ±0.5℃ |
| Humidity Fluctuation | ±2.5%RH |
| UV Wavelength | 254nm |
| UV Irradiance | 0-1200mW/cm2 |
| UV Irradiance Accuracy | ±5% |
| UV Irradiance Uniformity | ±5% |
The UV Test Chamber (Model Number: B-ZW) made by UV aging test chamber, is a product resistance to light aging performance testing device. It provides a highly controlled environment to test the UV radiation durability of products. It is designed with a humidity range of 20-95%RH, a temperature accuracy of ±0.5℃, a temperature fluctuation of ±0.5℃, and a UV irradiance accuracy of ±5%. Customers can choose the chamber size according to their needs. This high-performance testing equipment is widely used in various fields, such as automotive, aerospace, electrical and electronic products. It is a reliable and cost-effective testing device for manufacturers to measure the UV radiation durability of their products, making sure the quality of the products meets their requirements.
Brand Name: UV aging test chamber
Model Number: B-ZW
Place of Origin: China
Humidity Uniformity: ±3.5%RH
UV Irradiance Accuracy: ±5%
UV Irradiance: 0-1200mW/cm2
Humidity Accuracy: ±2.5%RH
Humidity Range: 20-95%RH
We provide comprehensive service for UV radiation aging test apparatus, UV radiation aging test apparatus and UV aging test equipment. Our UV Test Chamber is capable of providing highly accurate UV irradiance with uniformity and humidity accuracy.
We provide technical support and service for UV Test Chamber. Our services include:
UV Test Chamber Packaging and Shipping:
The UV Test Chamber is packaged in a cardboard box with foam inserts for protection. The box is sealed with tape and labeled with the product name and address of the shipper. The box is then placed in a larger cardboard box for shipping. The larger box is also sealed with tape and labeled with the product name, address of the shipper, and address of the recipient. The box is then ready for shipping.
