Control System: | PLC/PC | Spray Volume: | 1~2ml/80cm2/h |
---|---|---|---|
Test Humidity: | 95%RH | Test Temperature: | 35℃~55℃ |
Test Method: | ASTM B117 | Spray Distance: | 30cm~50cm |
Test Area: | 0.09m2~2.25m2 | Product Name: | Salt Spray Test Chamber |

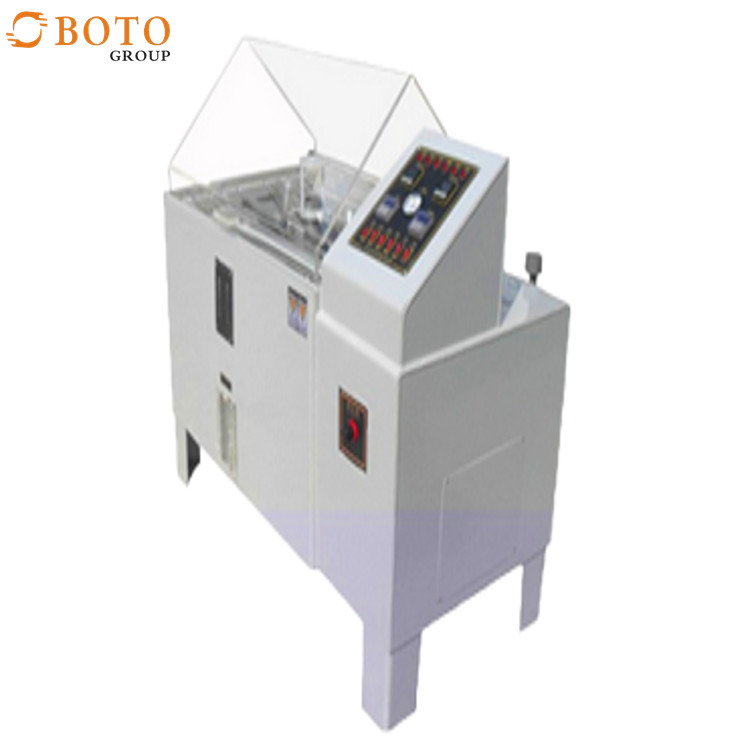

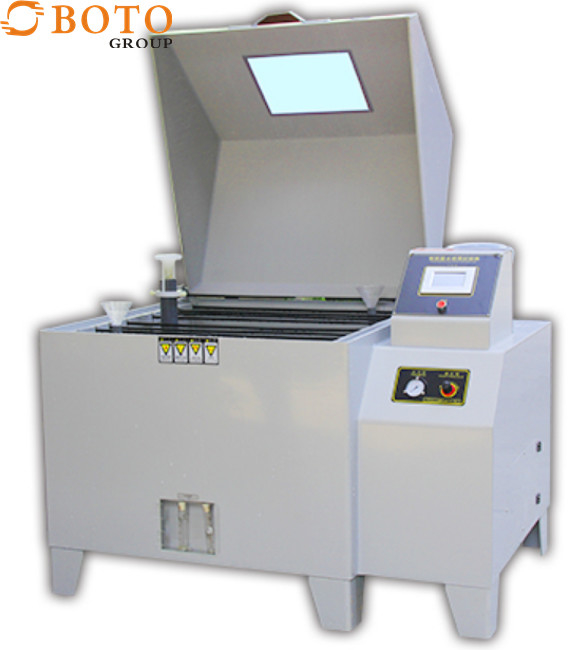

The salt spray test chamber is designed for durability testing of corrosion resistant polymer materials. It is a highly efficient equipment for evaluating the salt spray corrosion resistance of components, displaying the corrosion resistance of the polymer material in a simulated salt spray environment. The internal dimension of the chamber is 120x100x50, and it is made of corrosion-resistant SUS304 material, making it extremely durable and reliable. The chamber is also designed with adjustable temperature and humidity to accurately simulate the environment of 35℃~55℃ and 95%RH. The chamber is also equipped with a range of spray nozzles from 0.3mm to 0.8mm. With the salt spray test chamber, it is possible to test corrosion-resistant polymer materials with greater accuracy and reliability. It is an ideal testing tool for corrosion resistant coatings, and is capable of providing reliable and accurate results for high temperature salt spray tests.
Parameter | Specification |
---|---|
Power Source | AC:220V 50Hz |
Test Temperature | 35℃~55℃ |
Safety Protection | Overload/ Overheating/ Leakage |
Test Method | ASTM B117 |
Test Time | 48hrs~1000hrs |
Spray Nozzle | 0.3mm~0.8mm |
Test Area | 0.09m2~2.25m2 |
Spray Distance | 30cm~50cm |
Internal Dim | 120x100x50 |
Product Name | Salt Spray Test Chamber |
Keywords | Salt spray test chamber, Anti-corrosion testing instrument, corrosion resistant polymer material |
Salt Spray Test Chamber, a professional anti-corrosion testing instrument, is designed with high precision to provide reliable and accurate testing results. Model B-SST-120, a salt spray corrosion test chamber manufactured in China, is a reliable and precise corrosion testing equipment. It comes with a large test area, ranging from 0.09m2 to 2.25m2, with adjustable spray nozzle size from 0.3mm to 0.8mm, and adjustable test time from 48hrs to 1000hrs. The humidity of the chamber can reach up to 95%RH. It is an ideal testing solution to evaluate the performance of materials and products against corrosion and oxidation.
High-precision salt spray testing equipment: Our Salt Spray Test Chamber is an ideal corrosion testing equipment for testing the corrosion resistance of materials. It is mainly used for electroplated, anodized, organic and other surface treatments. The product model is B-SST-120, from China. With a test area ranging from 0.09m2 to 2.25m2 and a test time from 48hrs to 1000hrs, it can meet different needs. The test method is ASTM B117, and the spray distance is from 30cm to 50cm. The temperature can be adjusted from 35℃ to 55℃.
We provide technical support and service for Salt Spray Test Chambers. Our technical support team consists of highly qualified engineers who are experienced in troubleshooting, maintenance and repair of these chambers.
We provide comprehensive service and maintenance packages, including:
We are committed to providing quality service and support to ensure your Salt Spray Test Chamber is running at its best.
