| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO4892-3 |
| Model Number: | B-T-225L |
| Minimum Order Quantity: | 1SET |
| Price: | USD5000/SET |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 5-15DAYS |
| Payment Terms: | L/C, T/T, Western Union, D/P, D/P, D/A |
| Supply Ability: | 1000SET/MONTH |
| Power:: | Electronic | Internal Dim: | 60x75x50cm |
|---|---|---|---|
| External Dim: | 90x177x130cm | Relative Humidity: | 20%-98%RH |
| Temperature Range: | -70℃-180℃ | Heat-up Time: | 3-5℃/min |
| Pull-down Time: | 0.7-1℃/min | Warranty:: | 3 Years |
| High Light: | 20%RH Portable Climatic Chamber,Portable Climatic Test Chamber,304 Stainless Steel Plate Environmental Chamber |
||

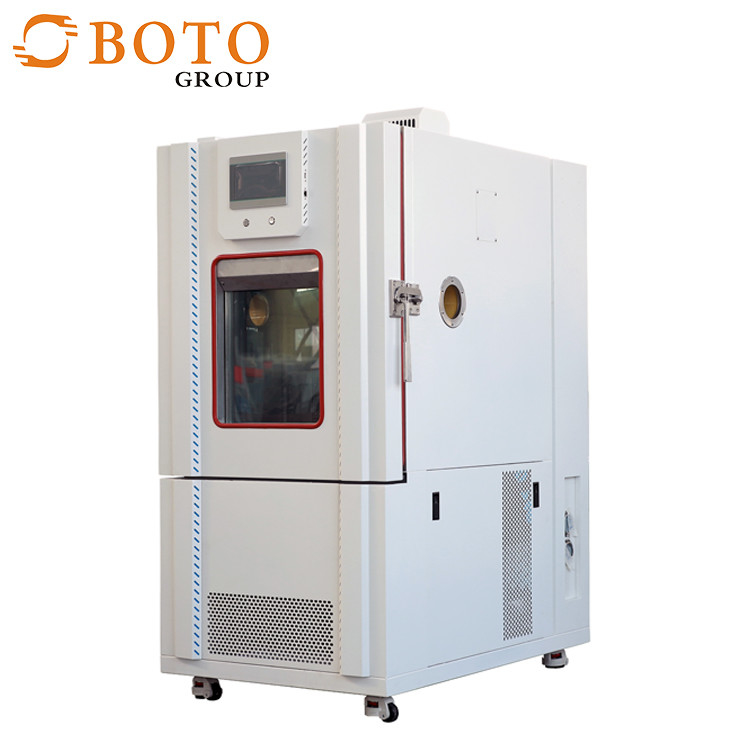

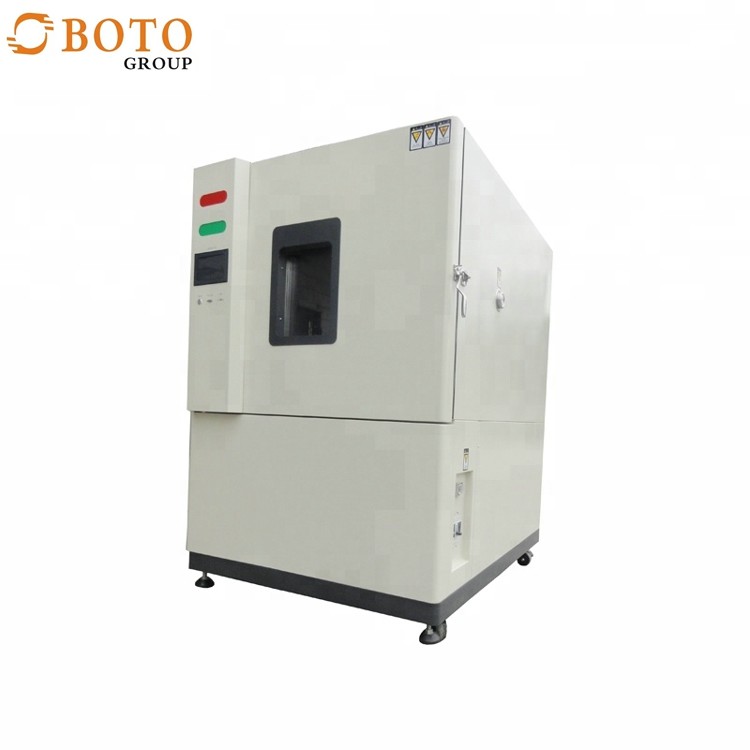

l This is a rapid temperature changing test chamber,it was mainly uesd to test the stability/performance of battery modules, battery packs, Li-ion battery,and other battery components;
l The GB/T2423.4 test method:Lithium-ion battery was placed in an alternating temperature environment of (-40±2)℃~(85±2 )℃,it takes within 30mins for the temperature changing from the highest to lowest ,or changing from the lowest to the highest . The test was maintained for 8h, and the cycle was repeated 5 times.
l With our new design and new manufacturing technology, the electricity consumption reduced by 30%.
l With optimized freezing design,the temperature changing speed can be chosen from 5° C /min~30° C /min. And the performance of this chamber is stable and reliable.
l With the using of European and American high efficiency air compressor and unique cold east loop design, the equipment running noise as low as 68dB.
Rapid temperature change test chamber refrigeration system and compressor:
In order to ensure the cooling rate of the test chamber and the minimum temperature requirements, the test chamber uses a set of Taikang fully enclosed compressor composed of binary overlapping air cooling refrigeration system. The overlapping refrigeration system consists of a high temperature refrigeration cycle and a low temperature refrigeration cycle, and its connecting vessel is the evaporative condenser. The evaporative condenser also plays the role of energy transfer, transferring the heat energy in the working room through the two-stage refrigeration system to achieve the purpose of long temperature. Refrigeration system design application of energy regulation technology, an effective treatment can ensure that in the normal operation of the refrigeration unit and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs and failure rate down to a more economic state.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail |
|||||
Why should i choose your company and your products?
we have been in this field for more than 17 years,and our quality is good.Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn,BYD,etc.
How to choose the most suitable products?
just tell me your temperature and other requirements ,we will find the suitable machine for you according to your requirements .
Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after sale service
