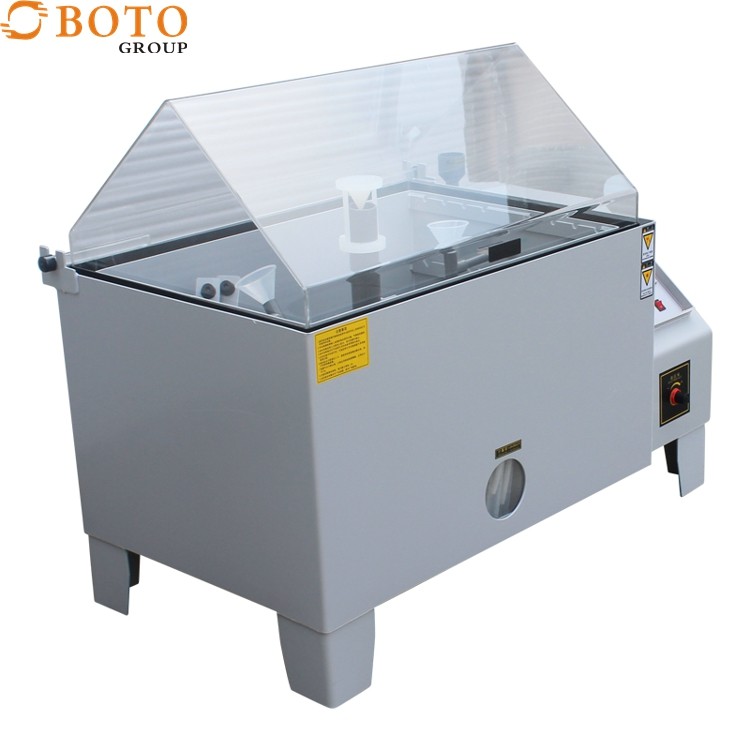

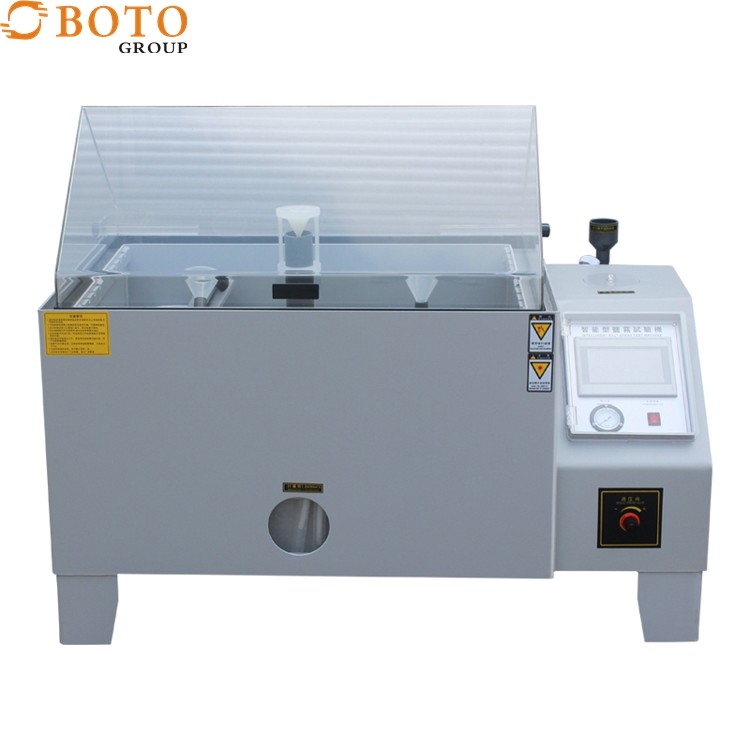

Salt Spray Test Chamber With Spray Volume Adjustment Heating Water Tank

Salt Spray Test Chamber with Spray Volume Adjustment, Heating Water Tank

Box structure

The whole molding by high temperature welding, corrosion resistance, easy to clean, no leakage phenomenon.

Tower spray system, and equipped with salt filtration system, no crystallization nozzle, salt spray distribution uniform, free adjustment of settlement.

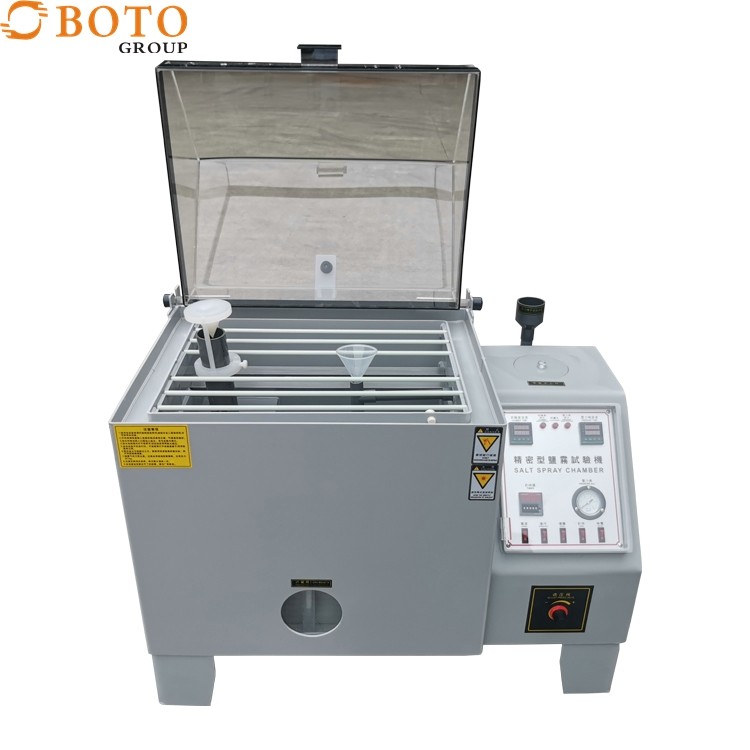

The lid is made of transparent material so that the test items and spray conditions can be clearly seen in the box.

Water seal structure is adopted between box cover and box, no salt spray overflow.

Line control board and other components are fixed in the convenient inspection and maintenance of the position, the use of door lock opening type side cover door, not only beautiful, but also convenient maintenance.

Internal structure

1, spray device: tower sprayer, containing glass nozzle, spray guided by the tower tube and then dispersed through the cone, evenly dispersed to the entire laboratory;

2. Spray volume adjustment: increase the spray volume of the conical diffuser on the spray tower, and reduce the spray volume on the lower;

3, collector: the spray spray nozzle, in free fall settlement, built-in one or several 80cm2 surface area of the funnel cup to collect salt spray, condensed into water by the pipe flow to the outside of the box measuring cylinder;

4, heating water tank: water tank attached to the bottom of the laboratory, for water heating to keep the temperature of the laboratory stable;

5, shelf: made of plastic steel, a single bearing capacity is not more than 2kg, such as scattered placement can bear the weight of 10kg, two rows of round holes on both sides of the shelf, is to place the bar with a vertical Angle of 15 degrees, 30 degrees.

Control system

High precision P.I.D. temperature control instrument, error is ±0.1℃, Fuji, RKC, Honeywell table (optional).

Continuous or periodic spray optional.

All circuits are fitted with circuit breakers and all heaters are equipped with electronic and mechanical overheat protection.

Multiple system protection, safe and reliable use. Environmental tests for electrical and electronic products -- Part 2: Test methods -- Ka: salt spray.

GB10587-89 salt spray test chamber technical conditions.

• environment:

Artificial accelerated simulation of salt spray environment test is to use a test equipment with a certain volume space -- salt spray test chamber, in the volume space with artificial methods to create salt spray environment to aging the product's salt spray corrosion resistance performance quality. Compared with the natural environment, the salt concentration of chloride in the salt spray environment is several times or tens of times of the salt spray content in the general natural environment, so that the corrosion rate is greatly improved, and the salt spray test on the product, the time to get the results is also greatly shortened.
