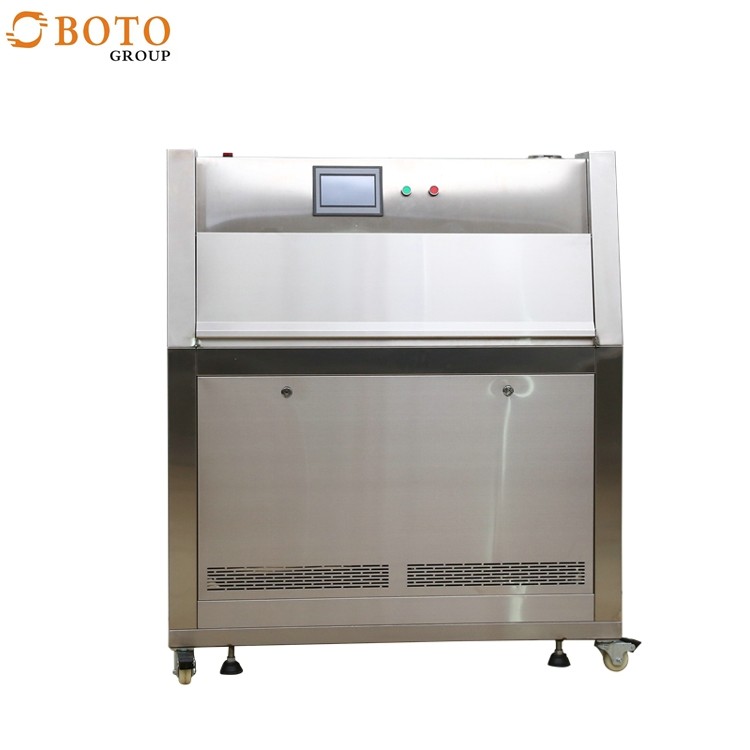

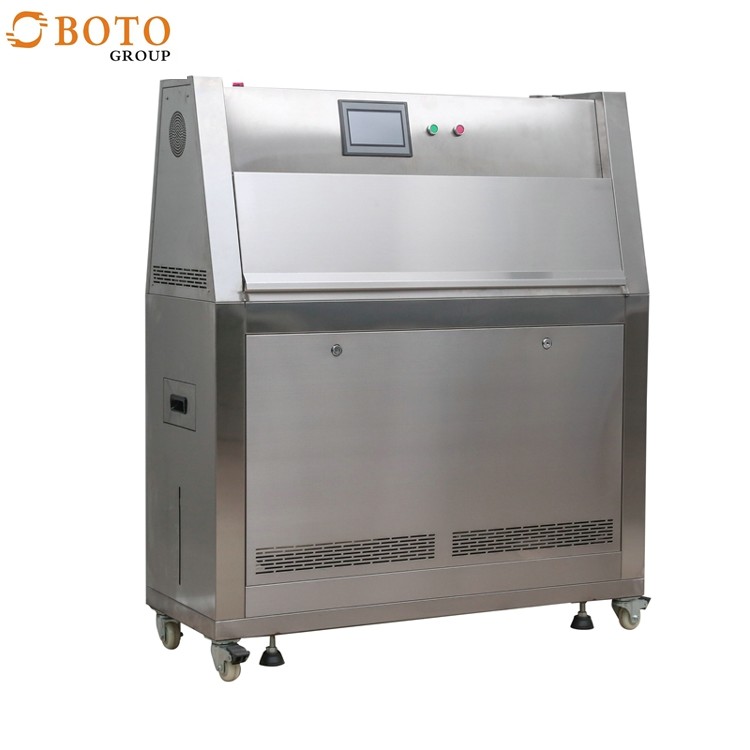

Name: ISO CE UV Accelerate Aging Test Equipment For Weathering Resistance
Brand: BOTO GROUP LTD
SKU: B-ZW
Price: 120000.00 USD
Availability: InStock

ISO, CE UV Accelerate Aging Test Equipment for Weathering Resistance

Product Description

Product description: This uv aging testing chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

Applications

1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature. 2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation. 3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

Item	Specification
Chamber dimension (WDH)	13005001460mm
Chamber material	SUS#304 stainless steel
Temperature range	RT to 70℃
Temperature fluctuation	≤±1.0℃
Temperature uniformity	3℃
Humidity range:	≥75%RH
Controller	Programmable controller, LCD touch screen
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	Exposure, condensation and water spray test cycle is programmable
Water spray cycle	Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage	8L/day
Distance from sample to lamp	55±2mm
Centre distance between lamps	65~70mm
Irradiance range	0.45~0.90W/m2
Lamp power	40W/Piece
UV lamps	Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Testing time	0~999H, adjustable
Specimen Size	75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Protection system	Overload short circuit protection
	Over temperature protection
	Water lacking protection
	Earth leakage protection
	Auto shut off protection

Chamber Structure

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System: Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature. The radiometer probe is fixed so as to avoid the frequent installation and disassembly. The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement. The radiation intensity is not more than 50W/m2. The illumination and condensation can be controlled independently or alternating and circularly. Test Specimen Mounting: The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, uv aging testing chamber is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

Product Effects

Packing & Delivery
PP film first

	2. Vacuum package

	3. PP film again

	4. 10mm thickness PU foam to avoid collision

	5. Strong wooden case

	6. Standard BOTO MACHINE MARK

Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.

Main equipment
Constant Temperature and Humidity Test Chamber
Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
UV Accelerated Aging Test Chamber
Mini Environmental chamber / Desktop Environmental Test Chamber
Walk in Constant Temperature and Humidity Lab
High Temperature Chamber and Other Lab Test Equipment etc.

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.

Main market

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.

Production Details

Factory Inspection

We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.

Workshop Machine

Certification

Cooperative partners

Tag:

Place of Origin:	CHINA
Brand Name:	BOTO
Certification:	CE ISO
Model Number:	B-ZW

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	PLY-WOODEN CASE
Delivery Time:	20-30workdays
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000Set/month

Power::	Electronic	Certification::	ISO, CE
Customized Support::	OEM, ODM	Material::	SUS#304 Stainless Steel Plate
Temperature Range::	Ange: RT+10℃~70℃	Irradiance::	1.0W/m2
Package:	Strong Wooden Package	Testing Time::	0~999H, Adjustable
Highlight:	UV Accelerated Aging Test Equipment , UV Accelerated Aging Test Chambers
