| Place of Origin: | China |
|---|---|
| Brand Name: | Salt spray corrosion test chamber |
| Certification: | IESICO |
| Model Number: | B-SST-160 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiable |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000set/month |
| Spray Volume: | 1~2ml/80cm2/h | Spray Distance: | 30cm~50cm |
|---|---|---|---|
| Safety Protection: | Overload/ Overheating/ Leakage | Control System: | PLC/PC |
| Test Time: | 48hrs~1000hrs | Test Temperature: | 35℃~55℃ |
| Test Area: | 0.09m2~2.25m2 | Product Name: | Salt Spray Test Chamber |

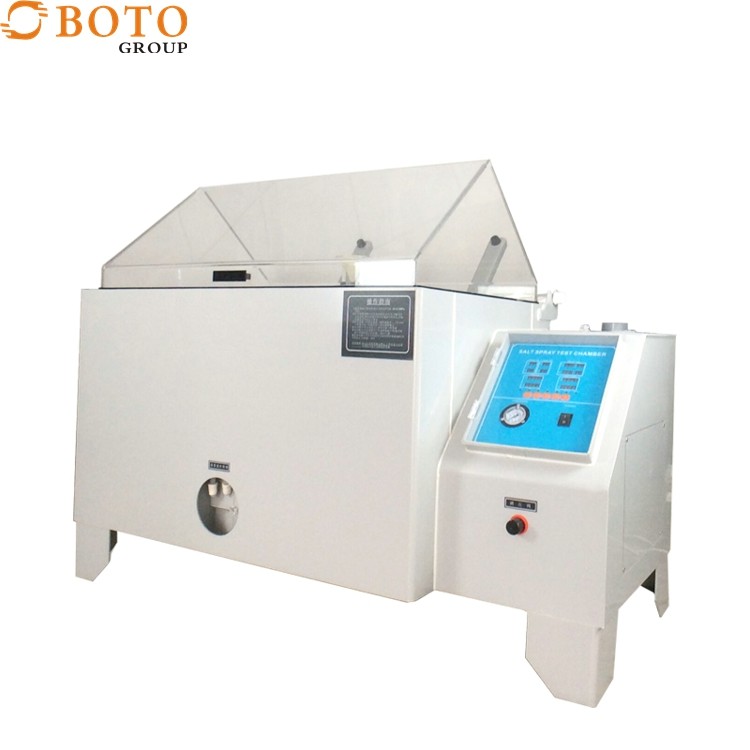

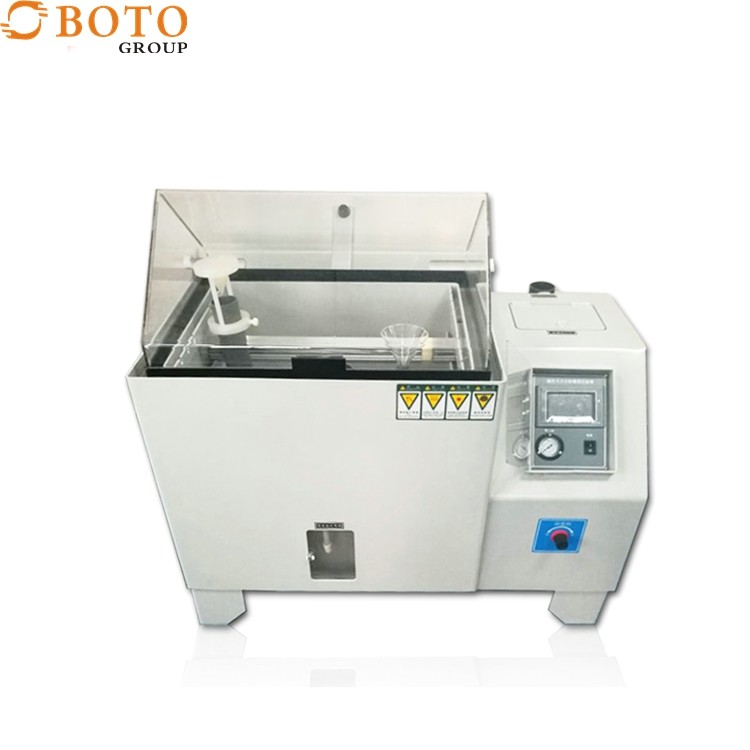

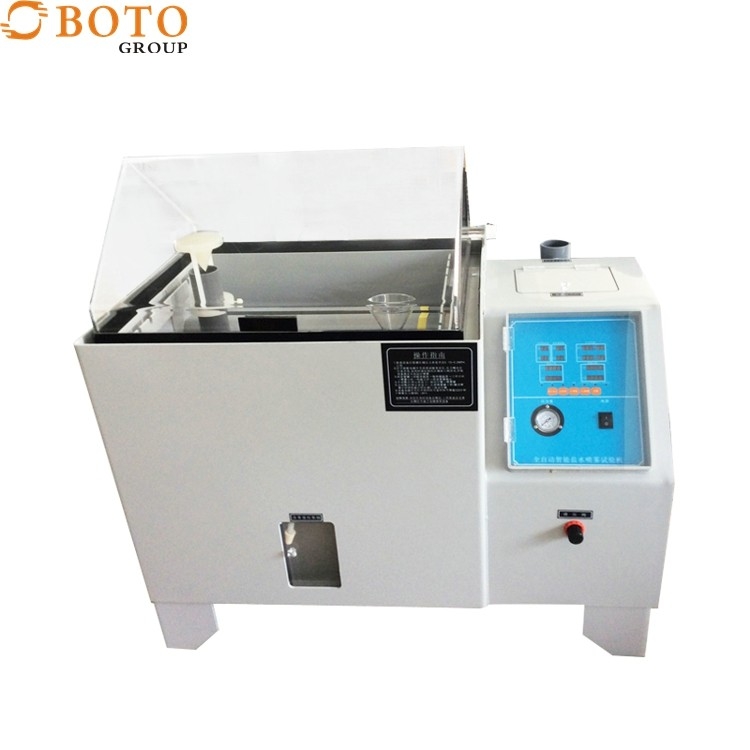

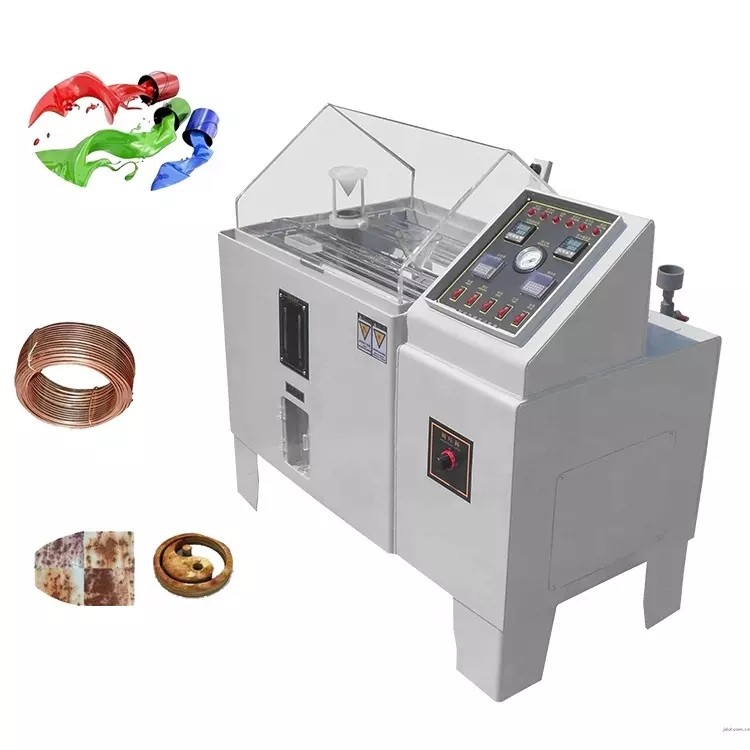

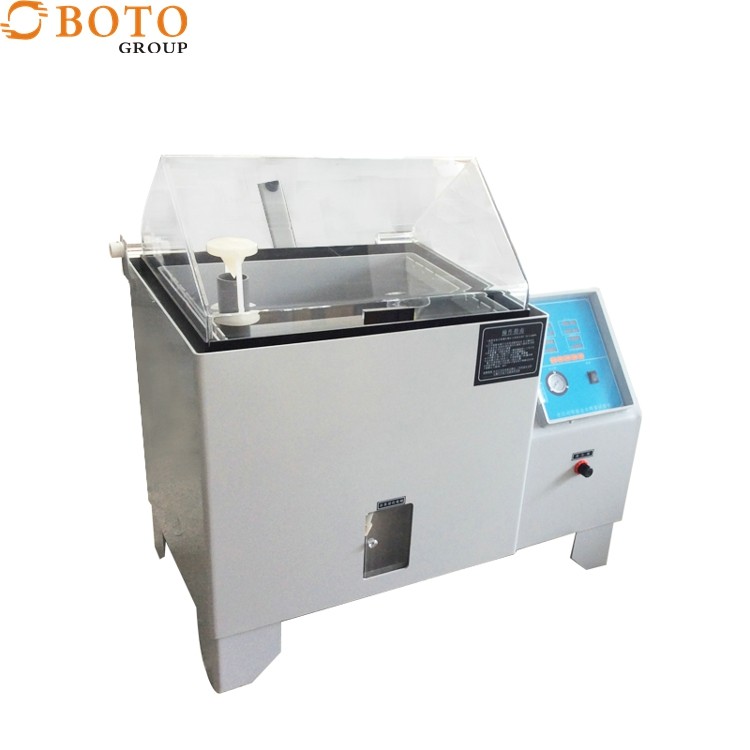

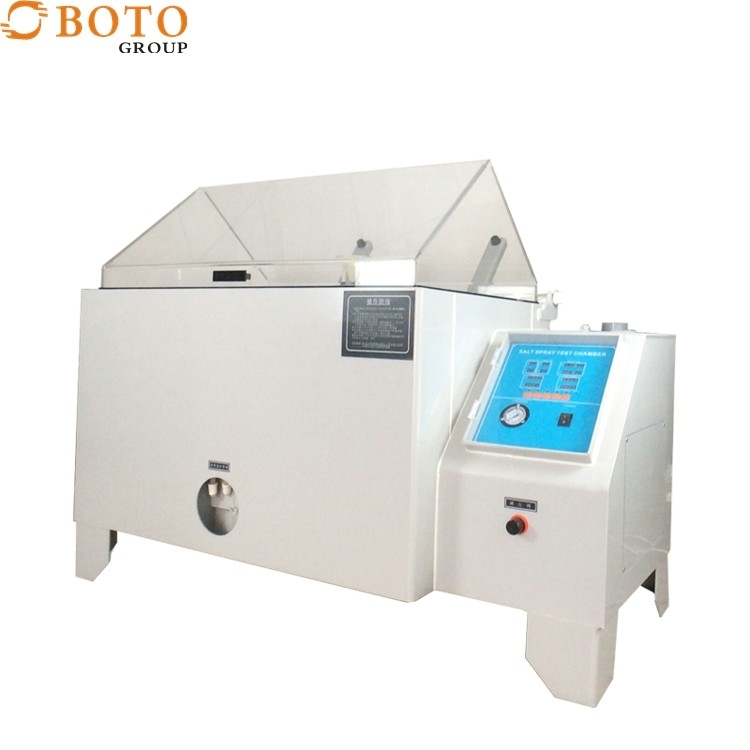

Our Salt Spray Test Chamber is an ideal corrosion testing equipment for industrial material corrosion resistance testing. Our salt spray test machine is equipped with advanced technology and high-precision salt spray testing equipment to meet different customer's requirements. It is also designed with comprehensive safety protection, such as overload, overheating, and leakage protection. The Chamber Material is made of SUS304 stainless steel and has multiple Spray Nozzle sizes, from 0.3mm~0.8mm for different tests. The size of the chamber can also be customized to fit different test requirements. Moreover, the temperature can be adjustable from 35℃~55℃ to simulate environmental conditions. Our Salt Spray Test Chamber is the perfect choice for corrosion testing and can provide reliable and accurate test results.
| Parameters | Specifications |
|---|---|
| Test Method | ASTM B117 |
| Control System | PLC/PC |
| Test Area | 0.09m2~2.25m2 |
| Test Temperature | 35℃~55℃ |
| Test Time | 48hrs~1000hrs |
| Chamber Material | SUS304 |
| Spray Volume | 1~2ml/80cm2/h |
| Test Humidity | 95%RH |
| Spray Nozzle | 0.3mm~0.8mm |
| Spray Distance | 30cm~50cm |
| Anti-corrosion testing instrument | Yes |
| Corrosion resistant polymer material | Yes |
| Corrosion resistant polymer material testing | Yes |
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Specifications:
| Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp |
Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C |
||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
|
Compressed air pressure
|
1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
|
Test room relative humidity
|
85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method |
Programmable spray (including the continuous spray interrupted spray)
|
||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
Salt Spray Test Chamber is an anti-corrosion testing instrument specially designed for the industrial material corrosion resistance tester. It can simulate the environment of the salt fog in the atmosphere, and evaluate the anti-corrosion properties of the material. The main features of this corrosion testing equipment are: Brand Name: Salt spray corrosion test chamber, Model Number: B-SST-160, Place of Origin: China, Test Method: ASTM B117, Spray Nozzle: 0.3mm~0.8mm, Control System: PLC/PC, Test Humidity: 95%RH, Spray Pressure: 0.2Mpa~0.4Mpa. It is extensively applied in the fields of aviation, aerospace, automotive, shipbuilding, medical, electronics, electrical, and other industries to test the corrosion resistance of their products. It is a reliable and professional industrial material corrosion resistance tester.
Our Salt Spray Test Chamber is a corrosion testing equipment designed to test the corrosion resistance of materials in a salt spray environment. It is manufactured to meet ASTM B117 standard, and has a spray volume of 1~2ml/80cm2/h, and spray pressure between 0.2Mpa~0.4Mpa. The chamber size can be customized according to your needs.
We provide technical support and services for Salt Spray Test Chambers. Our experienced technicians can assist you with any technical problem you may have in the use of a Salt Spray Test Chamber. We offer phone support, email support, and in-person service. We can also provide maintenance and parts replacement services as needed. Our technicians are available to answer any questions you may have and to provide guidance and advice on how to best maintain and use your Salt Spray Test Chamber.
Packaging and Shipping of Salt Spray Test Chamber:
The Salt Spray Test Chamber will be packaged securely in double-boxed cardboard containers to ensure safe arrival. It will be shipped using a reputable courier service. We will provide tracking information for the shipment.
