| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO CE |
| Model Number: | B-TH-225 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15 |
| Payment Terms: | T/T |
| Supply Ability: | 1000/month |
| Power Source: | AC:220V/380V 50/60Hz | Product Name: | Temperature Humidity Test Chamber |
|---|---|---|---|
| Temperature Fluctuation: | ±0.3°C | Temperature Range: | -70°C To +150°C（180℃） |
| Control System: | PID Microprocessor Control | Interior Material: | SUS#304 Stainless Steel |
| Temperature Resolution: | 0.1°C | Humidity Accuracy: | ±3.0% RH |
| High Light: | LED Digital Display Humidity Test Chamber,Coating Temperature Humidity Test Chamber,SUS304 Thermal Humidity Chamber |
||

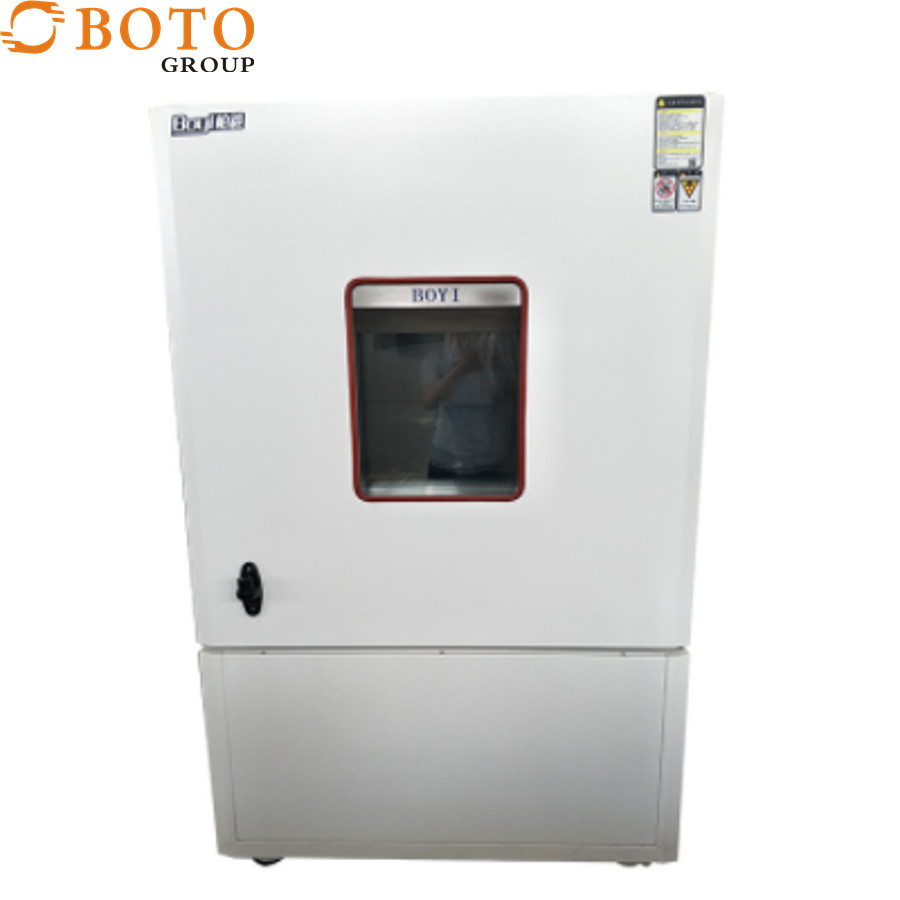

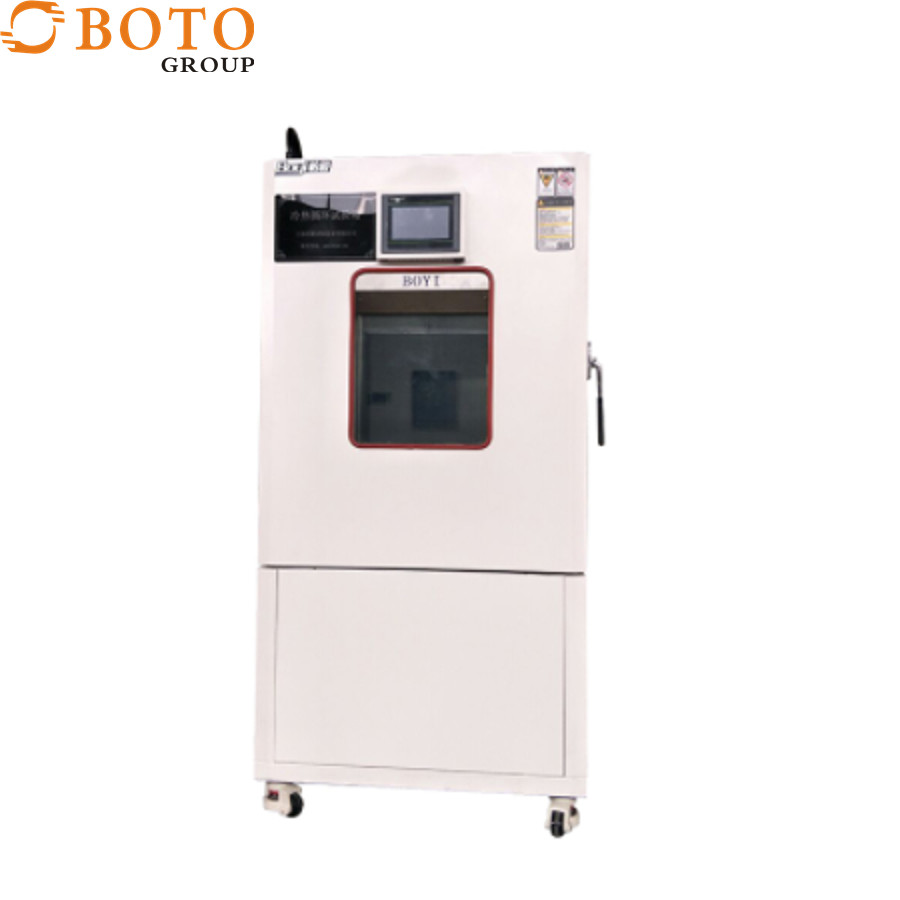

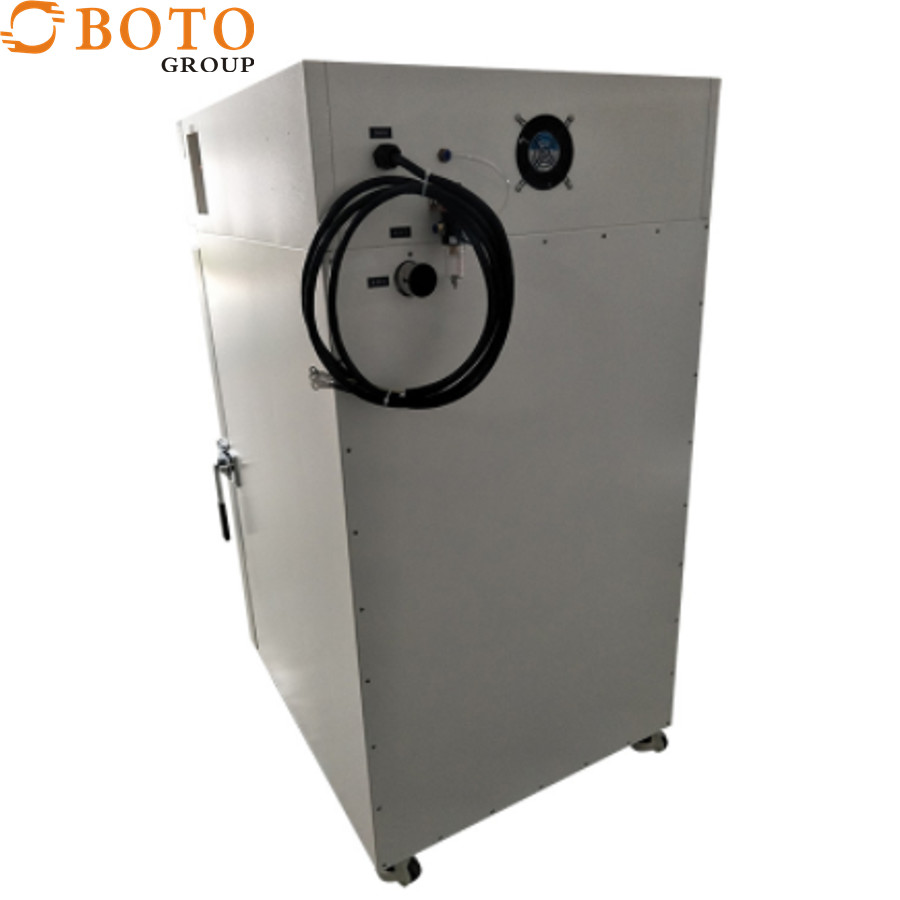

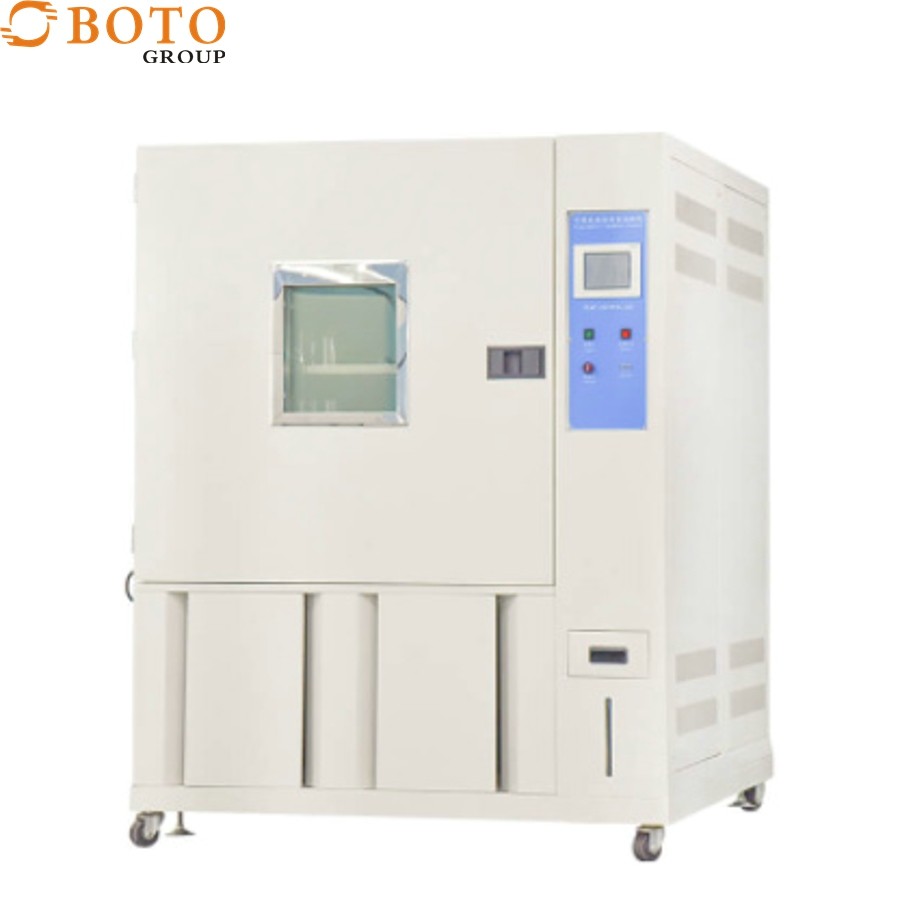

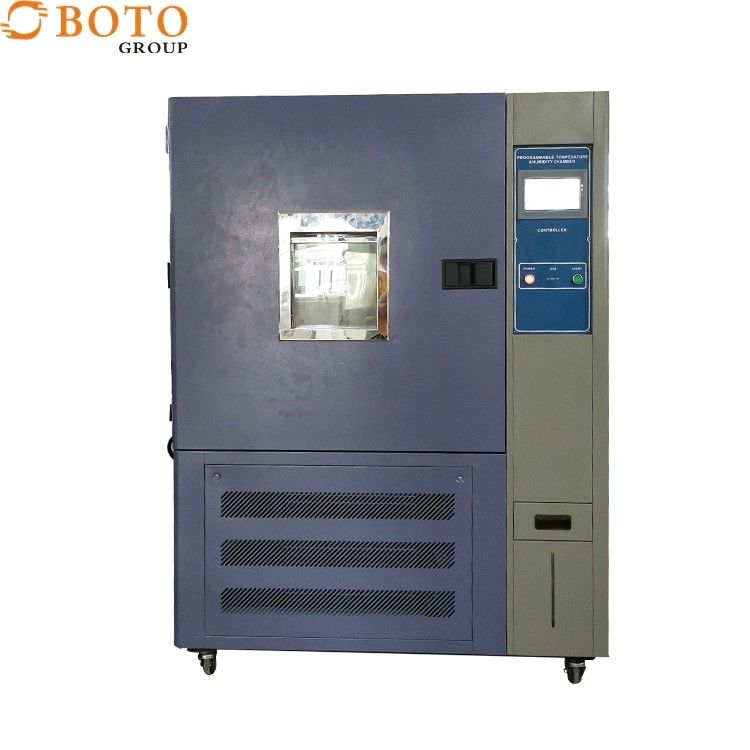

A Temperature Humidity Test Chamber is a controlled environment testing chamber designed for temperature humidity stability testing. It is constructed with interior SUS#304 stainless steel, and features an excellent temperature and humidity accuracy of ±3.0% RH and ±0.5°C respectively. Its power range is from 2.5~7KW and its temperature resolution is 0.1°C. This temperature humidity test chamber is applicable for evaluating the effects of temperature and humidity on the performance stability of materials, parts, products, components and assemblies. It can also be used for accelerated aging testing, storage, simulation and other various tests. With its reliable performance, it is ideal for industries such as automotive, electronic, aerospace, and new energy.
| Feature | Description |
|---|---|
| Exterior | Coating or SUS#304 Stainless Steel |
| Control System | PID Microprocessor Control |
| Heat-up Time | About 3~5℃/min |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.5°C |
| Humidity Range | 20% To 98% RH |
| Temperature Range | -70°C To +150°C (180℃) |
| Power(KW) | 2.5~7KW |
| Pull-down Time | About 0.7~1℃/min |
| Interior Material | SUS#304 Stainless Steel |
BOTO Temperature Humidity Test Chamber (B-TH-225) is a reliable and efficient temperature cycling chamber used for temperature cycling tests. It is widely used in a variety of industries, such as electrics, electronics, automobiles, chemicals, and pharmaceuticals. This temperature cycling chamber is designed to simulate a wide range of temperature and humidity conditions, providing accurate and reliable temperature and humidity data.
BOTO Temperature Humidity Test Chamber (B-TH-225) is a perfect solution for temperature cycling tests and humidity stability tests. It is suitable for a variety of industries, such as electrics, electronics, automobiles, chemicals, and pharmaceuticals. This temperature cycling chamber is designed to simulate a wide range of temperature and humidity conditions, providing accurate and reliable temperature and humidity data.
Brand Name: BOTO
Model Number: B-TH-225
Place of Origin: China
Certification: ISO CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood wooden case
Delivery Time: 10-15
Payment Terms: T/T
Supply Ability: 1000/month
Power(KW): 2.5~7KW
Pull-down Time: About 0.7~1℃/min
Interior Material: SUS#304 Stainless Steel
Temperature Uniformity: ±0.5°C
Humidity Range: 20% To 98% RH
Our Temperature Humidity Test Chamber is an environmental test oven which provides precision humidity and temperature control chamber, temperature cycling chamber, etc. It is designed with SUS#304 stainless steel interior material and 2.5~7KW power, with a pull-down time of 0.7~1℃/min and temperature uniformity of ±0.5°C. The humidity range is 20%-98% RH. All of our product is ISO and CE certified.
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood wooden case
Delivery Time: 10-15
Payment Terms: T/T
Supply Ability: 1000/month
Temperature Humidity Test Chamber should be packaged carefully and securely, taking into consideration the weight of the product and any accessories. The following precautions should be taken to ensure that the products arrive in good condition:
