| Place of Origin: | China |
|---|---|
| Brand Name: | UV aging test chamber |
| Certification: | ISO CE |
| Model Number: | BT-08 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15 |
| Payment Terms: | T/T |
| Supply Ability: | 1000/month |
| Temperature Range: | RT+10℃-70℃ | Temperature Uniformity: | ±1℃ |
|---|---|---|---|
| Chamber Size: | 550× 1300× 1480mm (D×W×H) | Temperature Fluctuation: | ±0.5℃ |
| UV Wavelength: | 290-400nm | Product Name: | UV Aging Test Chamber |
| Material: | 304 Stainless Steel | Standard Test Piece: | 75×150mm/21 Pieces |
| High Light: | UV Aging Test Chamber,Resistance To Light Aging Test Chamber,304SS UV Aging Test Chamber |
||

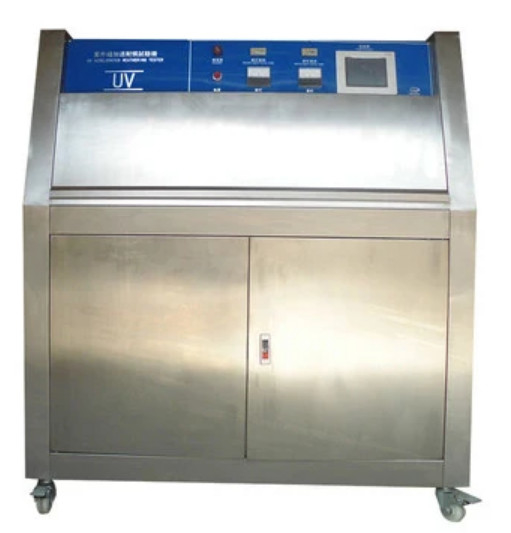

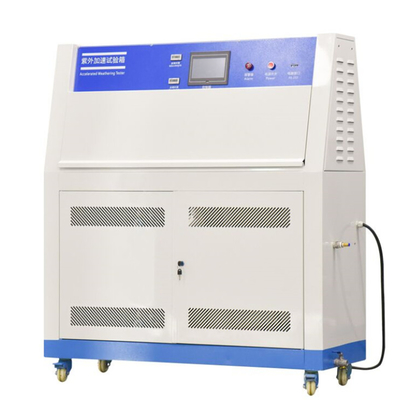

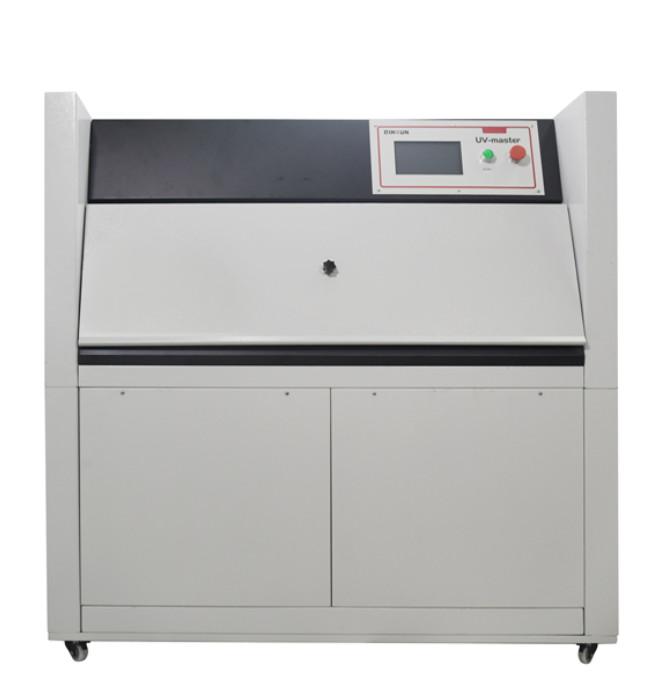

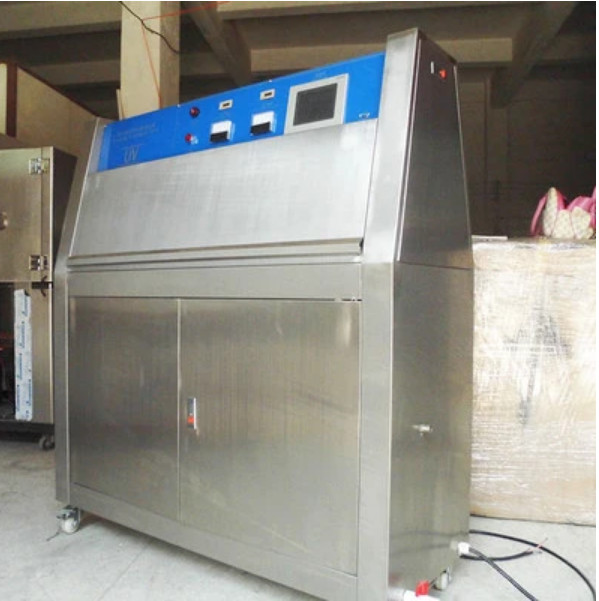

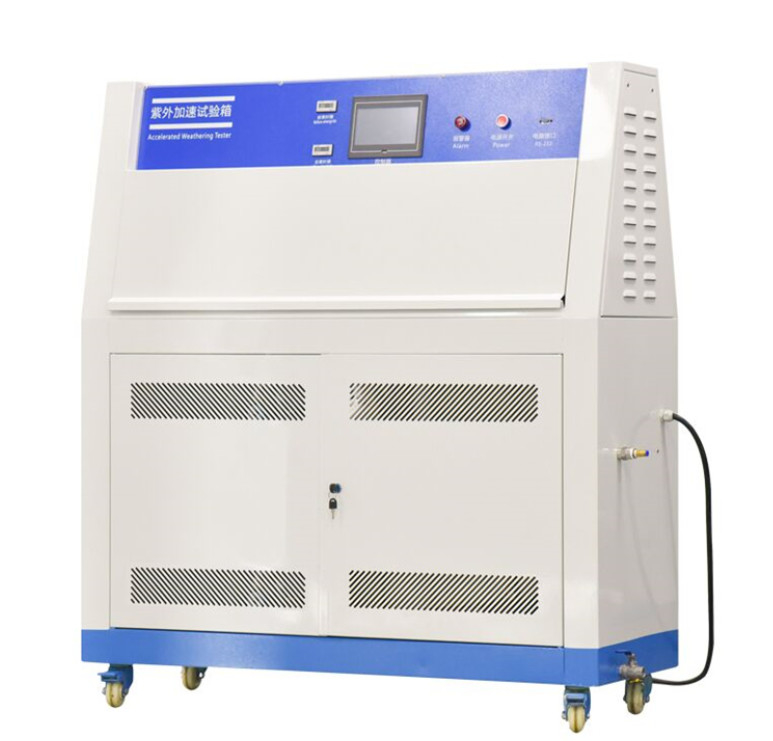

UV Test Chamber is a material aging performance testing instrument specially designed to test the product resistance to light aging performance. It has a temperature fluctuation of ±0.5℃, a standard test piece of 75×150mm/21 Pieces, a UV Wavelength range of 290-400nm, a temperature range of RT+10℃-70℃, and a humidity range of ＞90%RH. It can be used to simulate the natural environment of the product and accurately test the performance of the product in the process of light aging. It is widely used in the light aging performance test of a variety of products, such as optical materials, rubber, plastics and coatings, to ensure the quality and performance of products.
| Model | BT-08 UV aging testing machine |
| Temperature range: | RT+10℃～70℃ |
| Temperature fluctuation: | ±0.5℃ |
| Temperature uniformity: | ±1℃ |
| Humidity range: | ≥90%RH |
| Center distance in lamp tube: | 70mm |
| The distance between the test product and the center of the lamp tube: | 50±3mm |
| Ultraviolet tube: | UVA-340 wavelength range 290-400nm (its peak value is 340nm) UVB-313 wavelength range 280-315nm (Its peak is 313nm) |
| Standard test piece: | 75×150mm/21 pieces |
| Irradiation intensity: | 0.30-1.1W/㎡/adjustable 313nm, 340nm band (setting the irradiation intensity value through the touch screen) |
| Irradiation control: | Intelligent control of irradiance, real-time feedback of the irradiance value detected by the irradiance sensor, compared with the set value of the irradiation on the touch, and then the lamp ballast is controlled by the output voltage of the PLC , And finally realize the control of the brightness of the lamp tube, so as to adjust the irradiance PID setting and automatically compensate the set value. |
| Compliant with standards: | GB/T 14522-93 ASTM G 154, ISO 4892-1 ISO 11507 ASTMD 4329 |
The UV Aging Test Chamber BT-08 is a professional UV aging test equipment designed for product resistance to light aging performance testing. It is certified with ISO CE and made with 304 Stainless Steel material, offering a temperature range from RT+10℃-70℃ and temperature uniformity of ±1℃. The UV wavelength is from 290-400nm, making it ideal for long-term testing of products with UV exposure to simulate outdoor conditions. The minimum order quantity is 1, and the price is negotiable. Packaging is done with plywood wooden case, and the delivery time is 10-15 days after payment. The supply ability is 1000/month.
We provide technical support and service for our UV Test Chamber product. Our technical support team consists of highly trained and experienced professionals who are available to answer any questions you may have regarding your product. We strive to ensure that our customers receive the highest level of service and satisfaction.
Our technical support team can provide assistance with installation, troubleshooting, and general product maintenance. We are available 24 hours a day, 7 days a week, to provide technical support and answer any questions you may have regarding our UV Test Chamber product. Our technicians can also provide assistance with product customization, data analysis, and other related services.
For more information on our technical support services, please feel free to contact us. We are always happy to answer any questions you may have and provide the support you need.
The UV Test Chamber has a packaging and shipping system that ensures the product is delivered safely and securely. The chamber is packed in a strong cardboard box that is designed to protect the product from any damages, such as shocks and vibrations. The box is also labeled with the necessary information, such as product name, size, weight, etc. The chamber is then secured in the box with bubble wrap, foam, and other cushioning materials to ensure that it arrives intact. The box is then sealed with strong adhesive tape to prevent any tampering. Lastly, the chamber is shipped to the customer via an appropriate carrier.
