| Place of Origin: | China |
|---|---|
| Brand Name: | UV aging test chamber |
| Certification: | ISO CE |
| Model Number: | BT-08 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15 |
| Payment Terms: | T/T |
| Supply Ability: | 1000/month |
| UV Wavelength: | 290-400nm | Temperature Range: | RT+10℃-70℃ |
|---|---|---|---|
| Humidity Range: | ＞90%RH | Temperature Uniformity: | ±1℃ |
| Product Name: | UV Aging Test Chamber | UV Intensity: | 0.30-1.1W/㎡ |
| Chamber Size: | 550× 1300× 1480mm (D×W×H) | Temperature Fluctuation: | ±0.5℃ |
| High Light: | 290nm UV Test Chamber,90%RH Humidity UV Test Chamber,400nm UV Test Chamber |
||

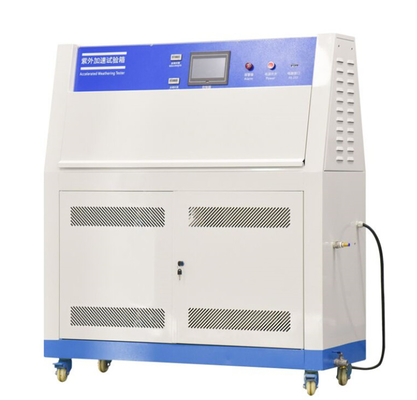

The UV Test Chamber is a material aging performance testing instrument, designed for product resistance to light aging performance testing device. With the temperature range from RT+10℃ to 70℃, the temperature uniformity of ±1℃, the humidity range of ＞90%RH, the UV wavelength of 290-400nm, and the chamber size of 550× 1300× 1480mm (D×W×H), the UV Test Chamber is able to simulate the UV light aging environment, providing the most accurate and reliable product performance test results. It can help to improve the material aging performance and product performance, and to ensure the product quality.
| Model | BT-08 UV aging testing machine |
| Temperature range: | RT+10℃～70℃ |
| Temperature fluctuation: | ±0.5℃ |
| Temperature uniformity: | ±1℃ |
| Humidity range: | ≥90%RH |
| Center distance in lamp tube: | 70mm |
| The distance between the test product and the center of the lamp tube: | 50±3mm |
| Ultraviolet tube: | UVA-340 wavelength range 290-400nm (its peak value is 340nm) UVB-313 wavelength range 280-315nm (Its peak is 313nm) |
| Standard test piece: | 75×150mm/21 pieces |
| Irradiation intensity: | 0.30-1.1W/㎡/adjustable 313nm, 340nm band (setting the irradiation intensity value through the touch screen) |
| Irradiation control: | Intelligent control of irradiance, real-time feedback of the irradiance value detected by the irradiance sensor, compared with the set value of the irradiation on the touch, and then the lamp ballast is controlled by the output voltage of the PLC , And finally realize the control of the brightness of the lamp tube, so as to adjust the irradiance PID setting and automatically compensate the set value. |
| Compliant with standards: | GB/T 14522-93 ASTM G 154, ISO 4892-1 ISO 11507 ASTMD 4329 |
UV Test Chamber, with its brand name of BT-08 and model number of BT-08, is a material aging performance testing instrument, product resistance to light aging performance testing device, UV radiation durability testing equipment and UV weather resistance testing machine manufactured in China and certified by ISO and CE. It has a minimum order quantity of 1, negotiable price and a delivery time of 10-15 days. Payment terms are T/T and the supply ability is 1000 pieces per month. The standard test piece size is 75×150mm/21 Pieces and the temperature range is RT+10℃-70℃. The chamber size is 550× 1300× 1480mm (D×W×H) and the temperature uniformity is ±1℃. The UV Wavelength is 290-400nm and the packaging is plywood wooden cases.
Brand Name: UV aging test chamber
Model Number: BT-08
Place of Origin: China
Certification: ISO CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood wooden case
Delivery Time: 10-15
Payment Terms: T/T
Supply Ability: 1000/month
Material: 304 Stainless Steel
UV Intensity: 0.30-1.1W/㎡
Standard test piece: 75×150mm/21 Pieces
UV Wavelength: 290-400nm
Temperature Uniformity: ±1℃
Features: Our UV Test Chamber is an ideal material aging performance testing instrument, specially designed for UV radiation aging test of samples. It is widely used to simulate and accelerate the UV radiation aging process of materials to test the material aging performance in the laboratory.
Application: UV Test Chamber is used to determine the material aging performance of plastics, coatings, inks, adhesives, printing products, leather, electrical insulation materials, automotive interior materials, etc.
Our team of experts is available to provide technical support and services for UV Test Chambers. Our services include:
The UV Test Chamber is carefully packaged before shipping to ensure that it reaches its destination in perfect condition. The following steps are taken during the packaging process:
