| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO900 |
| Model Number: | BT-80(A-F) |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/month |
| Temperature Range: | -70°C To 150°C | Power Supply: | AC 220V/380V 50Hz/60Hz |
|---|---|---|---|
| Temp Range: | -70°C ~ 150°C (Customize） | Operation: | LCD Or PC |
| Cable Port: | External Power | Humidity Display: | Digital LED Display |
| Power Source: | AC:220V/380V 50/60Hz | Chamber Material: | Stainless Steel |
| Safety Protection: | Over-temperature Protection, Water Shortage Protection | Insulaton Material: | PU Fiberglass Wool |
| Inner Chamber Material: | SUS304# Stainless Steel Plates | Exterior: | Coating Or SUS#304 Stainless Steel Plate |
| Accuracy: | In 0.3 Centigrade | Test Hole: | D50mm |

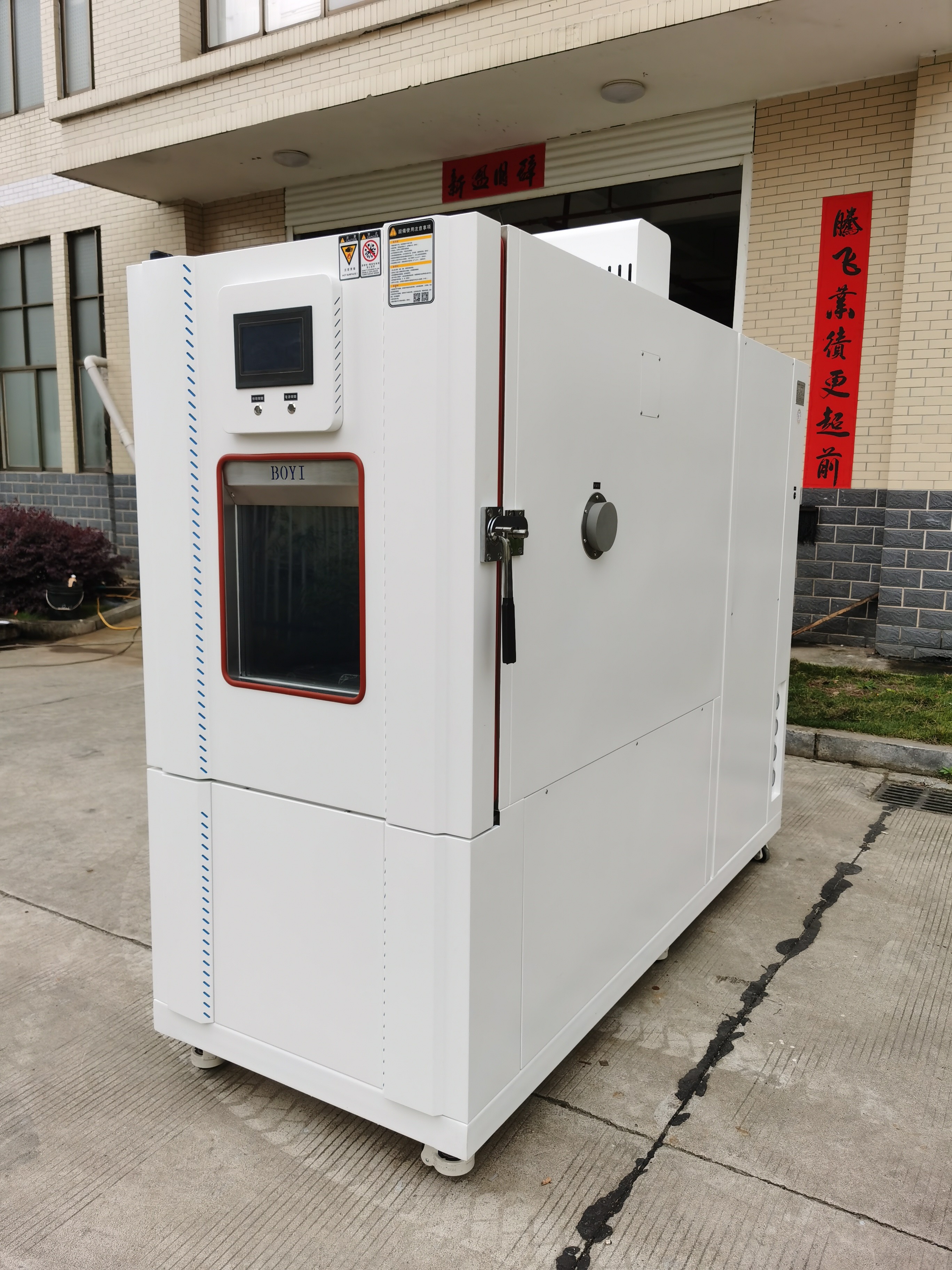

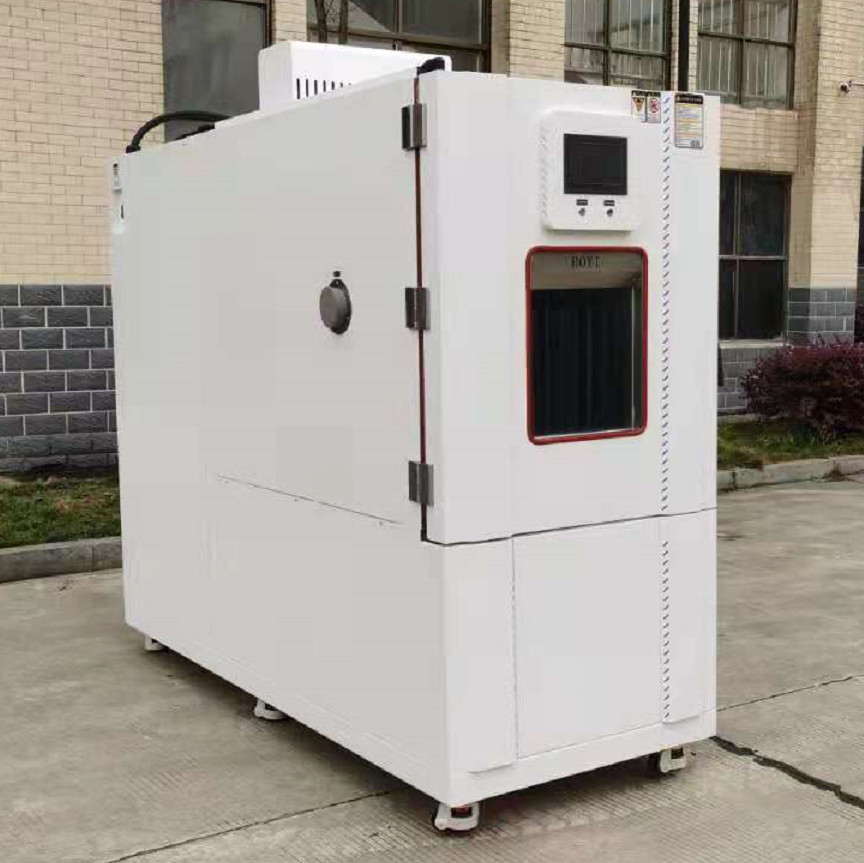

Rapid temperature change test chamber
Product Description
APPLICATIONS
1.To simulate test environment with different temperature and humidity
2.Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test
3.Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1.High performance and quiet operation (68 dBA)
2.Space-saving designed for flush installation to wall
3.Full thermal break around doorframe
4.One 50mm diameter cable port o left, with flexible silicone plug
5.Accurate wet/dry-bulb humidity measurement system for easy maintain
Specification
| Model | BT-80(A-F) | BT-150(A-F) | BT-225(A-F) | BT-408(A-F) | BT-800(A-F) | BT-1000(A~F) |
| Internal size WxHxD(cm) | 40x50x40 | 50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
| External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
| Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
Technical parameter
| Temperature range | Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-ZO°C) High temperature: 100°C(150°C) |
| Humidity range | 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition) |
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. |
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. |
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min |
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate |
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material |
| cooling system | Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C - 70 °C) |
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection |
| power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ |
1.Reasonable structural design, rapid cooling rate.
2. Imported refrigeration system, internal with SUS#304 high temperature resistant stainless steel.
3. More than 30% energy saving is achieved.
4. The test specimen can be easily observed via observation window,
5. Easy to Operate, install and maintain.
6.ational Construction and fast cooling rate
7.Frequency conversion control of wind speed.
8.Adopts international brand of imported parts for cooling system to improve operation reliability
9.Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
10.Standards Implemented and met
11.GB10592-89 Technical requirements for high and low temperature test chamber
12.GB2423.1-1989 Low temperature test
13.GB2423.2-1989 High temperature test mode
Characteristics:
1.High and Low temperature chamber test machineUse the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.High and Low temperature chamber test machinecontrol temperature&humidity well-distributed, precisely and steady.
3.High and Low temperature chamber test machine Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Our Services
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
FAQ
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer located in Hunan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
5. We haven't do business before, how can I trust your company and machine?
We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.
6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.
