| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO900 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15work days |
| Payment Terms: | T/T |
| External Materials: | SUS#304 Stainless Steel | Customized Support: | OEM, ODM |
|---|---|---|---|
| Safety Protection Device: | Protection For Leakage | Inner Box Volume: | 49L |
| Voltage And Frequency: | 380V±10% 50HZ | Internal Measurement: | 40*35*35 CM |
| Low Temperature Range: | -10~-60°C | High Temperature Range: | +80~+200°C |
| Test Temperature Range: | -40~+150°C | Recovery Time: | 3~5 Minutes |

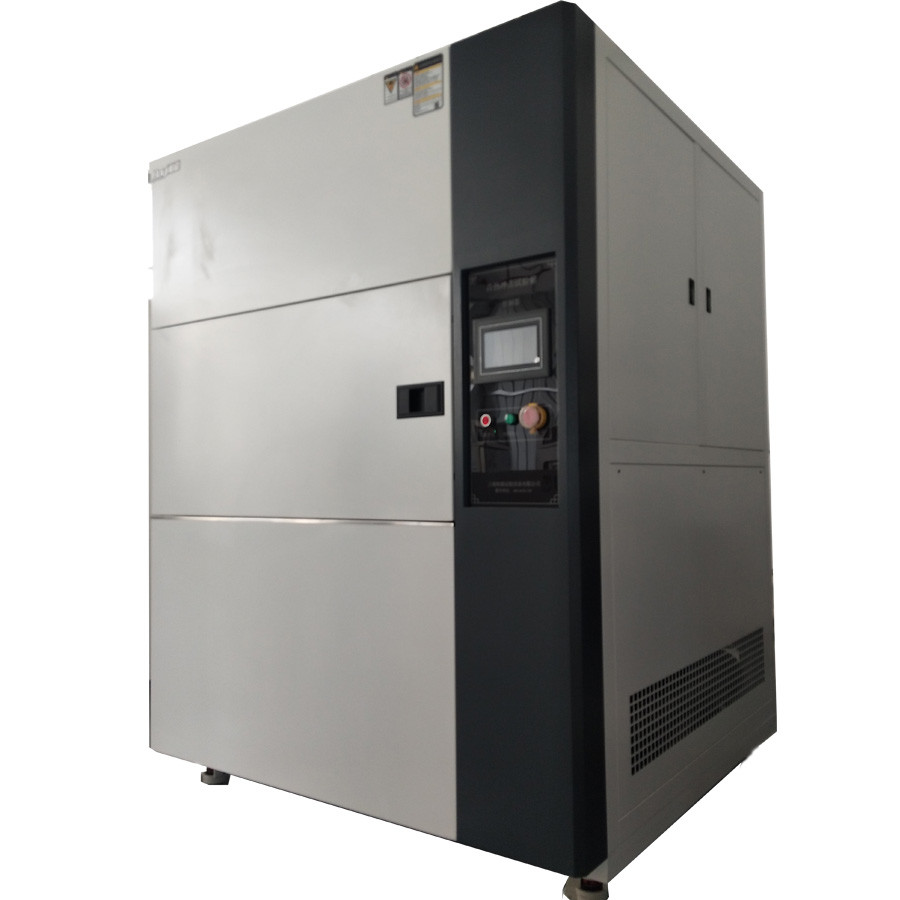

Three box- type hot and cold impact chamber or temperature schock chamber
Product Description
Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. The regenerative cold and hot shock tester is widely used in electronic parts, semiconductors, metals, chemicals, materials and other testing equipment. Its characteristics are as follows:

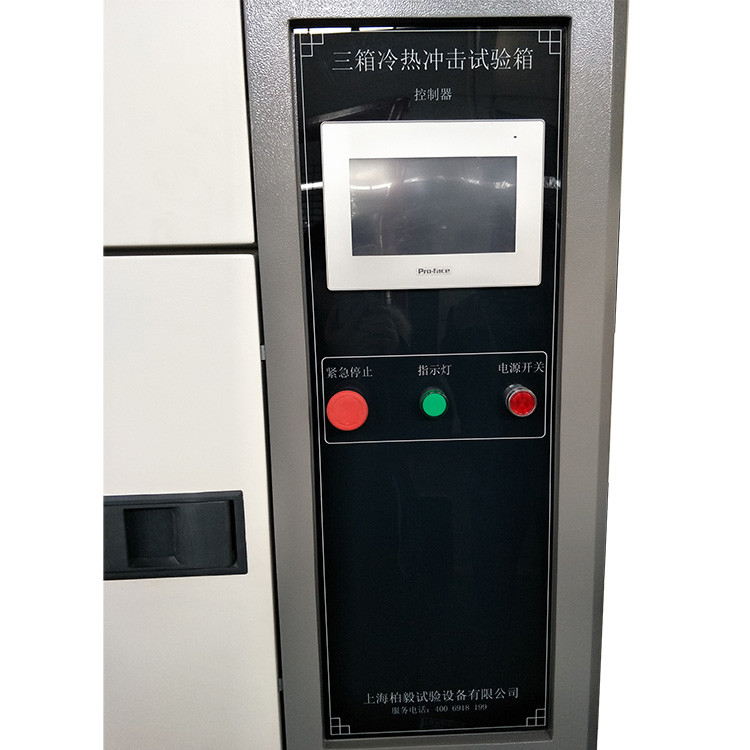

1. Touch-controlled color man-machine interface + PLC + J import temperature controller
2. Setting cycle and defrosting times;
3. Display of abnormal and fault points with simple teaching reminders for troubleshooting;
4. Comprehensive system safety protection and power outage memory;
5. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection
6. Air-cooled or water-cooled cooling can be selected according to customer's requirements.
Applicable Industries:
Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm.
The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., can be used as the basis of its product improvement or reference.
Features:
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
| Inner tank volume | 49L |
| Inner box size | 40cm*35cm*35cm |
| Low temperature range | -10~-60°C |
| High temperature range | +80~+200°C |
| Test temperature range | -40~+150°C |
| Recovery time | 3~5 minutes |
| Temperature fluctuation | ±2°C |
| Temperature uniformity | ±2°C |
FAQ
1. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.
2. Does your product have CE certification ?
Yes, we have the CE certification FCC,ISO,etc.
3. If there is not any size meet my need, can I customize?
Of course, we are the 20years factory that with rich experience in custom made service,not only can provide customiz serivice,but also can provide professional advice.
