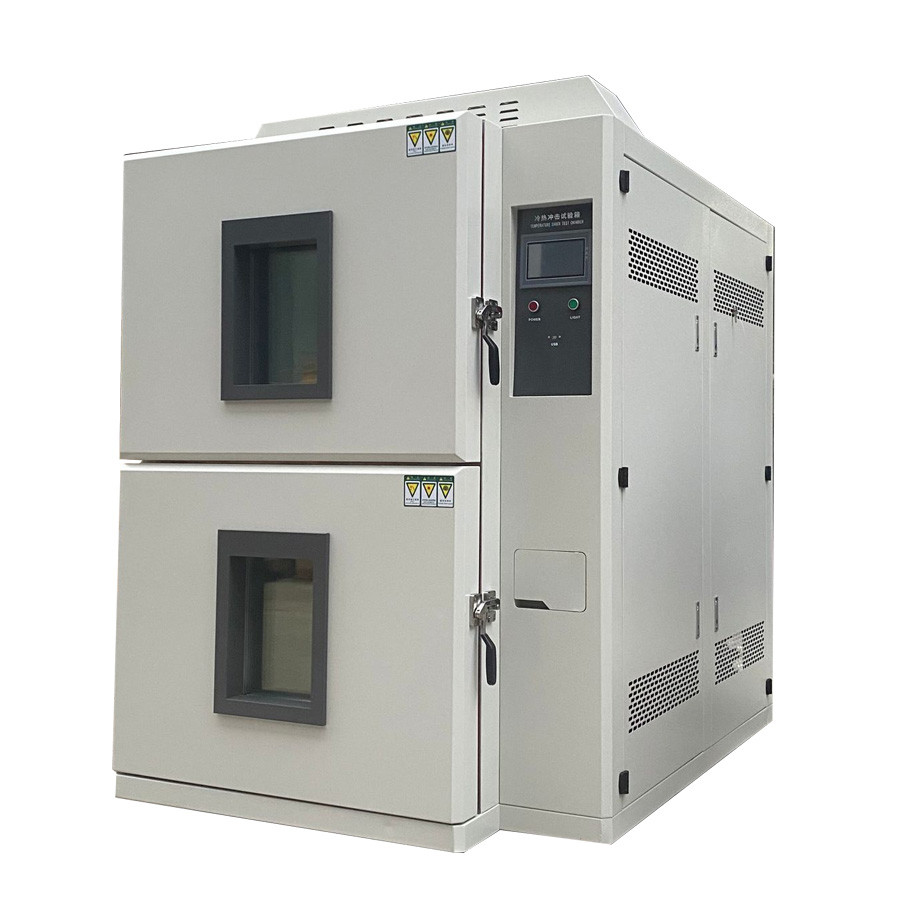

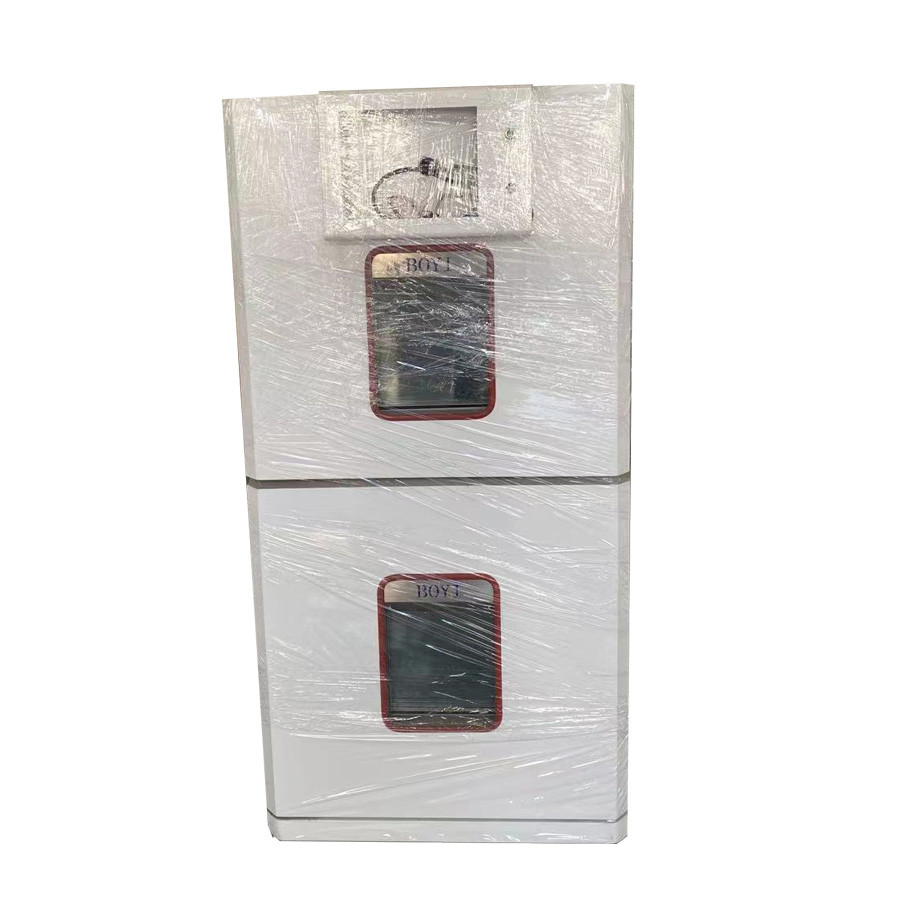

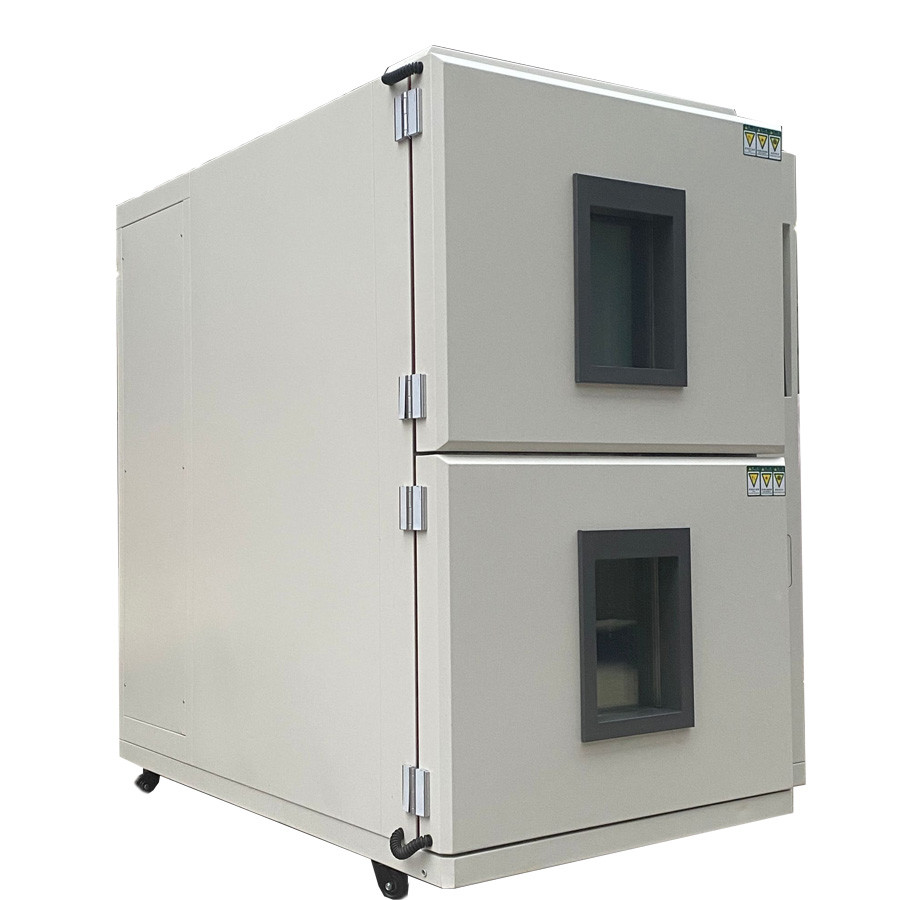

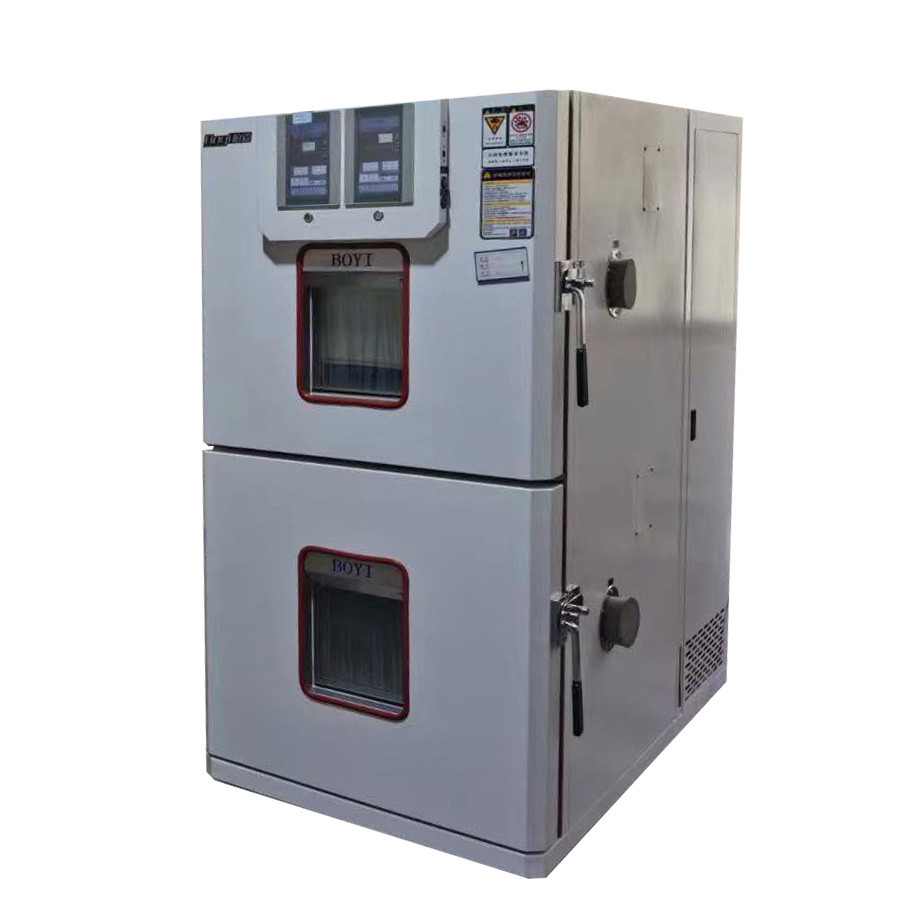

Two box- type hot and cold impact chamber or temperature schock chamber
Product Parameters:
Two-box temperature impact test chamber(vertical basket/horizontal basket type)
Product Usage:
The temperature impact test box is mainly used for the reliability test of high and low temperature constants and various temperature impacts and temperature changes of electricians, electronic products, components, parts, and metal materials.
Implementation and meeting standards:
GB/T 10592-2008 :high and low temperature test chamber technical conditions
GB/T 2423.22-2008 :temperature change rate test method
GJB 150.3A-2009 :high temperature test method
GJB 150.4A-2009 :low temperature test method
GJB 150.5A-2009 :temperature impact test method
GJB 360B-2009:test methods for electronic and electrical components 107 requirements for temperature shock tests
GB/T 5170.2-2008:test method for environmental test equipment of electric and
electronic products Temperature test equipment
Product features:
New type of refrigeration: -120°C ultra-low temperature cooling capacity to meet the ultra-low temperature shock requirements of users
Efficient and energy-saving: reduce power consumption by more than 30% during low temperature test
Excellent performance: performance indicators better than national and military standard requirements
Compact and flexible: compact, flexible movement, saving space
Simple operation: user-friendly operation interface, one-stop start-up, no professional training
Multiple Protection: Ensure the safety of personnel, test pieces and equipment, worry-free use
1.DESCRIPTION
Thermal shock test chamber is an indispensable test equipment for the metal, plastics, rubber, electronics and other materials industries. It is used to test the structure of materials or composite materials for endurance under extremely high temperature and extremely low temperature in an instant, to get the chemical change or physical damage caused by thermal expansion and contraction of the test specimen detected in the shortest time.
Features
1.Highly accurate temperature recovery
2.1000 cycles continuous operation (option: defrost-free operation)
3.Accurate and dependable test result (option: product temperature control*)
4.Monitoring product temperature (option: product temperature monitor with trigger function)
5.patent parallel refrigeration system improves reliability
6.Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
7.Minimizing defrosting burden with defrost-free operation (option: defrost-free operation)
8.Parallel refrigerator control system for energy-saving control
Product Usage:
The temperature impact test box is mainly used for the reliability test of high and low temperature constants and various temperature impacts and temperature changes of electricians, electronic products, components, parts, and metal materials.
Technical indicators
| Product name |
Two box type temperature impact test box |
| Product model |
BT-2TS100 |
BT-2TS180 |
BT-2TS300 |
BT-2TS1000 |
| Nominal volume |
Unit/L |
100 |
180 |
300 |
1000 |
| Inner size |
Width × depth × height (mm) |
500×500×400 |
600×600×500 |
700×700×600 |
1000×1000×1000 |
| External size |
Width × depth × height (mm) |
1020×1200×1850 |
1200×1500×1900 |
1350×1600×1980 |
2450×1800×1980 |
| Basket size |
Width × depth × height (mm) |
350×350×250 |
450×450×350 |
550×550×450 |
800×800×800 |
| Operating mode |
A.vertical basket B. horizontal basket type |
|
Performance
index
|
temperature range |
A,-75℃~200℃ B,-90℃~200℃ C,-120℃~200℃ |
| Impact range |
A,-55℃~160℃ B,-75℃~160℃ C,-85℃~160℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
≤±2.0℃ |
| Temperature deviation |
≤±2.0℃ |
| heating rate |
RT~+200℃,≤40Min |
| Cooling rate |
A,+25℃~-75℃,≤60Min;B,+25℃~-90℃,≤80Min;C,+25℃~-90℃,≤100Min; |
| Temperature conversion time |
≤15s |
| Temperature recovery time |
≤5Min |
| Exposure conditions |
High temperature exposure 30Mins; Low temperature exposure 30Mins |
| Refrigeration method |
Compressor refrigeration |
| Cooling method |
Air-cooled/water-cooled |
| Main components |
Control System |
Siemens programmable controller + touch screen + independent development program |
| Heating system |
Fully independent system, high efficiency stainless steel finned tube heater |
| Cooling System |
Importer-type scroll compressor |
| Circulatory system |
Temperature and low noise motor, stainless steel centrifugal impeller |
| Main materials |
Carton material |
High-quality carbon steel plate, phosphating electrostatic spray treatment |
| Inner box material |
International standard SUS304# stainless steel mirror treatment |
| Insulation material |
Hard flame retardant polyurethane foam |
| Sealing material |
High and low temperature environment-friendly silicone rubber seal |
| voltage |
380±10% VAC,50Hz;3L+N+G |
| Communication Interface |
RS232 communication interface, USB data interface |
| Standard configuration |
1 sample holder, 1 test lead hole, 1 silicone plug |
| Optional accessories |
Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge |
| safety devices |
Leakage, short circuit, motor overheating, heater overheating, humidification, water shortage, compressor overpressure, overload, multiple overtemperature protection |
| Environmental requirements |
Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around;
Water supply temperature: ≤ 30 °C, water pressure: 0.1 ~ 0.3MPa, water quality meets industrial water standards;
|
|
Note:
1. temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test;
2.according to the specific requirements of users customized non-standard high and low temperature impact test box;
3.This technical information is subject to change without notice.
|
