| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO900 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/month |
| Exterior Material: | Coating Or SUS#304 Stainless Steel Plate | Temperature Accuracy: | ±0.5°C |
|---|---|---|---|
| Controlling System: | Touch Screen Controller+SSR+PID | Inside Material: | Stainless Steel SUS 304 # |
| Heating System: | Stainless Steel Finned Heating Tube | Humidity Fluctuation: | ±2% RH |
| Type: | Temperature And Humidity Control System | Insulaton Material: | PU Fiberglass Wool |
| Standard: | ISO9001/ISO14001 | Exterior: | Coating Or SUS#304 Stainless Steel |
| Temperature Range: | -10℃~+150℃±2℃(or Requirement) | Inside size W*H*D (cm): | 20L; 36L; 62L; Customized |

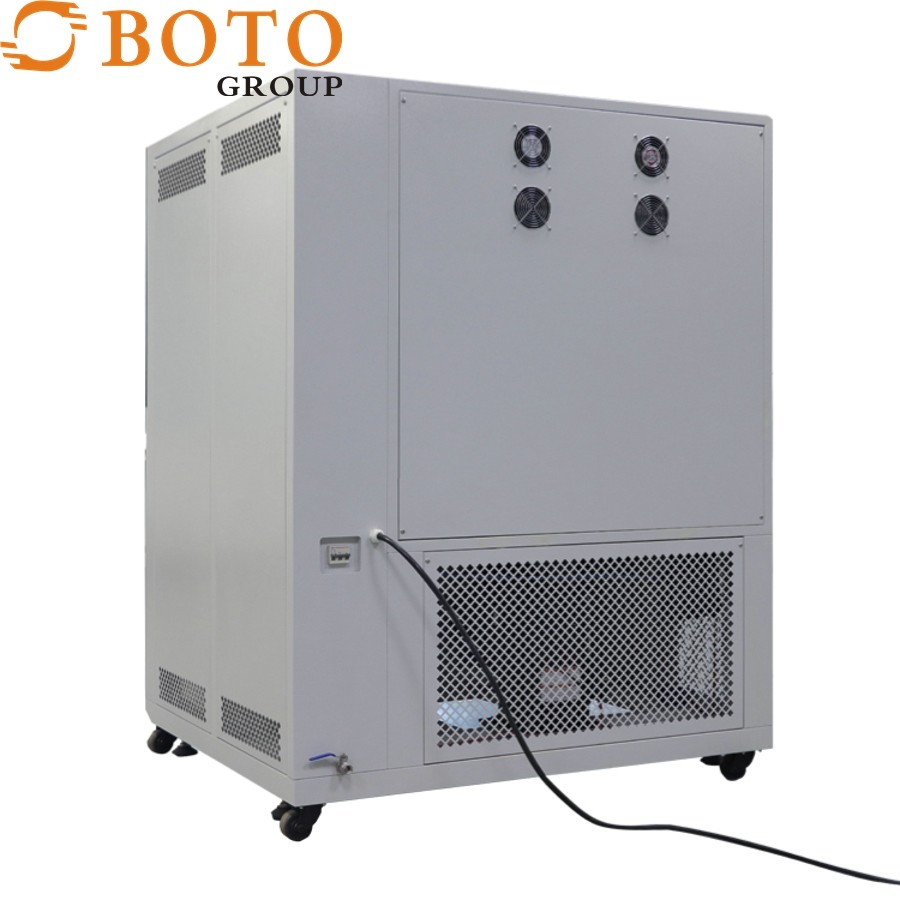

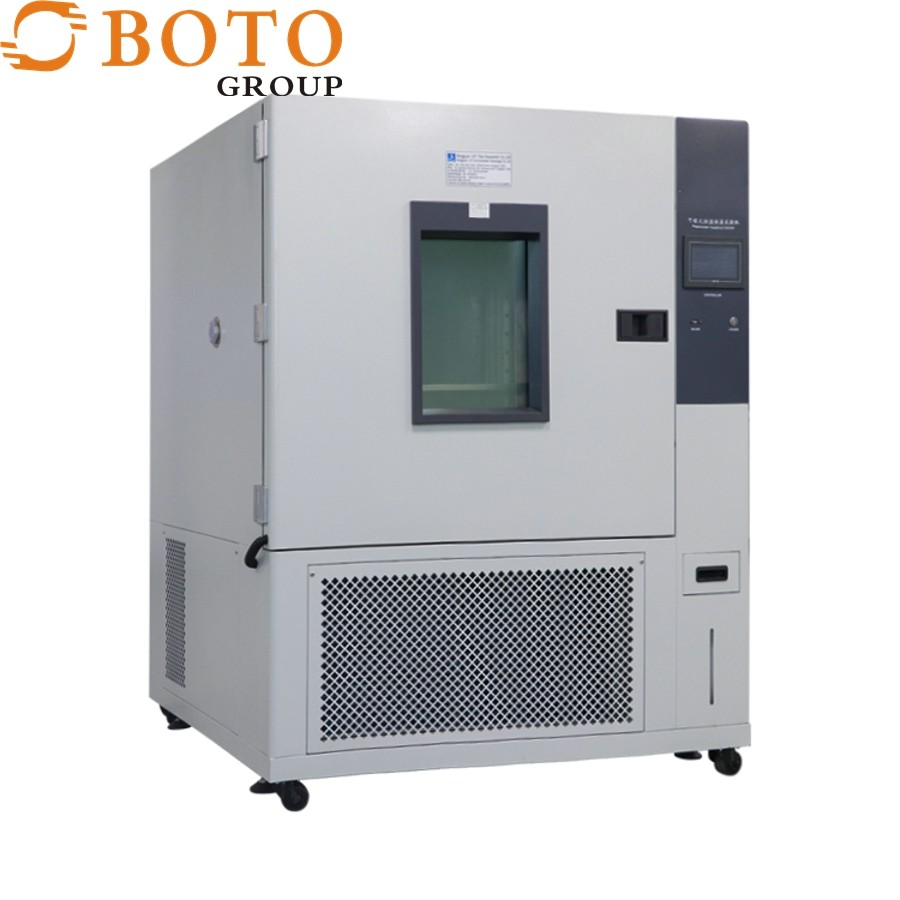

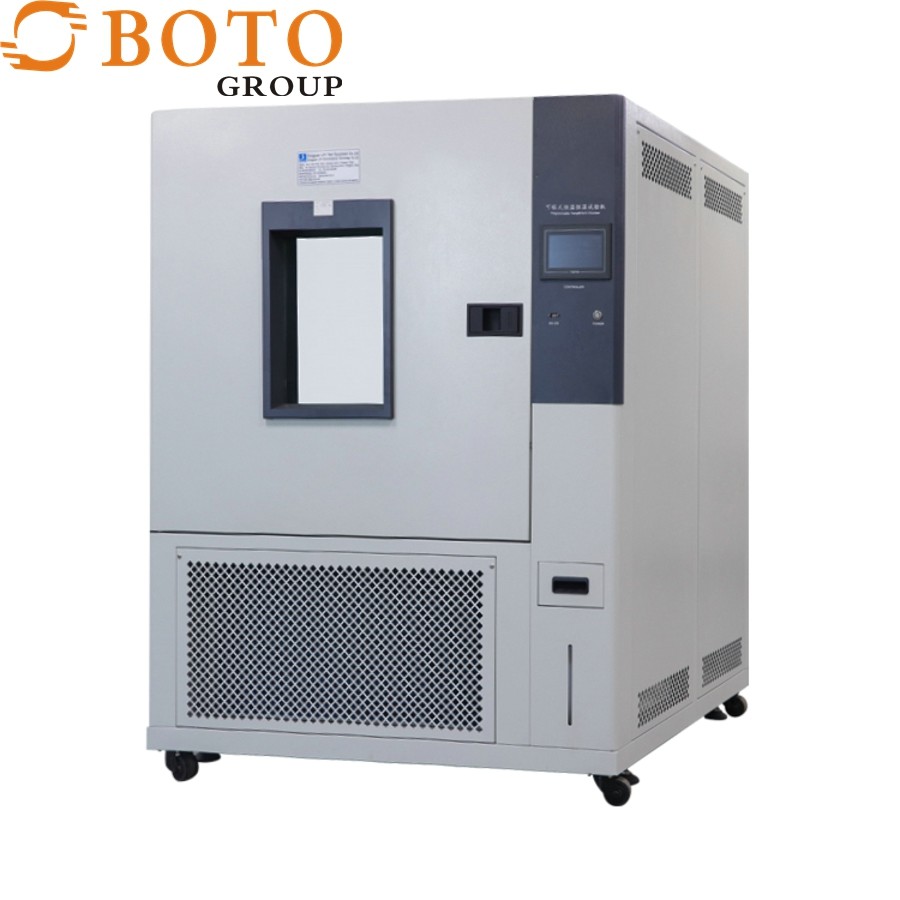

High temperature aging chamber Product Parameters:
Product Description
Mainly used in national defense industry, aviation industry'automobile parts, electronic parts, plastics industry, food industry and other related product development, straightening management engineering test specifications. Its characteristics are:
1. Adopt microcomputer electronic digital control mode, precise and accurate, stable and reliable.
2. Heating adopts forced circulation air supply mode, the temperature rises and accelerates and distributes evenly.
3. PID control system, double over temperature protection, safe and reliable;
4. Temperature setting is simple and easy to operate.
5. Multiple safety protection: current overload protection, over-temperature protection, leakage protection.
Equipment summary:
Our company focuses on development and production of constant temperature and humidity testing machine, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.
Applicable industries:
Environmental Temperature Humidity Aging Test Chamber pplied to test the products quality, such as
electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals,
building materials, aerospace, medical care.
Corresponding standard:
1 GB11158 high-temperature technical condition.
2 GB10589-89 low-temperature technical condition
3 GB10592-89 high-low-temperature technical condition
4 GB/T10586-89 humidity technical condition
5 GB/T2423.1-2001 low-temperature testing method
6 GB/T2423.2-2001 high-temperature testing method
7 GB/T2423.3-93 humidity and heat testing method
8 GB/T2423.4-93 method of humidity and heat alternating
9 GB/T2423.22-2001 temperature testing method
10 IEC60068-2-1.1990 low-temperature testing method
11 IEC60068-2-2.1974 high-temperature testing method
12 GJB150.3 high-temperature test
13 GJB150.4 low-temperature test
14 GJB150.9 humidity test
Equipment Characteristics:
1 perfect design: the arc shape and surface coating processing, high body appearance, and USES the
plane has no reaction, easy to operate, safe and reliable.
2 bright, large observation window: three layers of vacuum window energy-saving fluorescent
lamps, window without wiper mist, keep clear observation of the effect of the sample (s) to observe the
situation.
3 humidification system pipeline and control circuit separation: humidification system pipeline and power
supply, controller, PCB separation, avoid affected circuit by pipeline leakage, improve security.
4 advanced refrigeration and control system: closed compressor imported from Europe and US, import
environmental protection refrigerant, the world famous brand refrigeration devices, original installation
import LCD touch screen controller, friendly interface, easy operation.
Technical parameter:
| Product Name | High temperature aging chamber |
| Inside size W*H*D (cm) | 20L; 36L; 62L; Customized |
| Temperature range | -10℃~+150℃±2℃(or requirement) |
| Humidity range | 30%~95%RH±2%RH(or requirement) |
| Volatility / uniformly | ≤±0.5℃/≤±2℃ |
| Accuracy | +0.5℃,-3%R.H |
| heated/cooling |
About 4.0℃/min / about 1.0℃/min(specific condition is cooling 5~10℃/min) |
| Heated speed | 1.0~3.0℃/min |
| Cool speed | 0.7~1.0℃/min |
| Material | SUS 304# stainless steel |
FAQ
1.How is the after-sales service?
Our support is guaranteed for 12 months.
For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.
If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.
