| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO900 |
| Model Number: | BT-120 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/month |
| Solution: | Solution Consistence NaCl 5% | Room Environment: | +5℃ ~ +35℃ / <85%RH |
|---|---|---|---|
| Meet Standard: | ASTM: B117,B268 | Cabinet Material: | Corrosion-resistant Polymer Material |
| Temperature Uniformity: | ≦1.0℃ | Safety Device: | Over-temperature Protection |
| PH: | 6.5~7.2 3.0~3.2 | Humidity Uniformity: | ±3%R.H |
| Inner size (cm): | 120x100x50 | External size(cm): | 190x130x140 |
| Brine temp: | 35°C±1°C 50°C±1°C | Material: | Coeeosion-resistant Polymer |
| High Light: | Coatings Salt Spray Test Chamber,600L Salt Spray Test Chamber,Corrosion Resistance Salt Spray Tester |
||
Introduction:

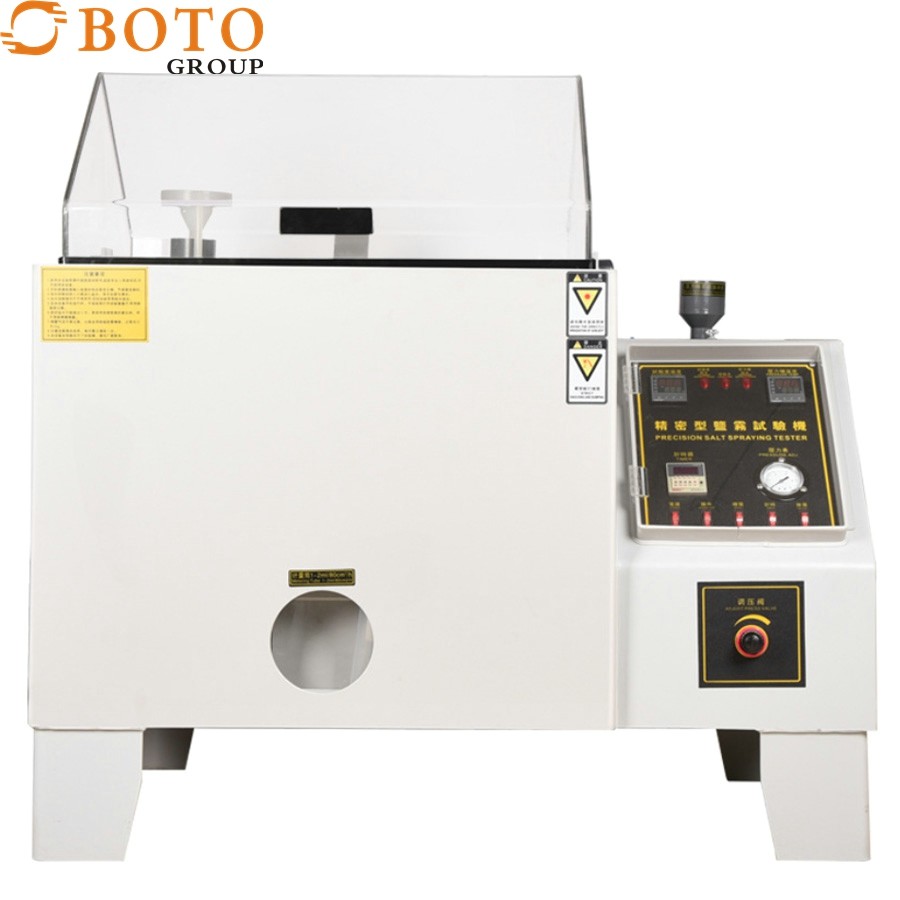

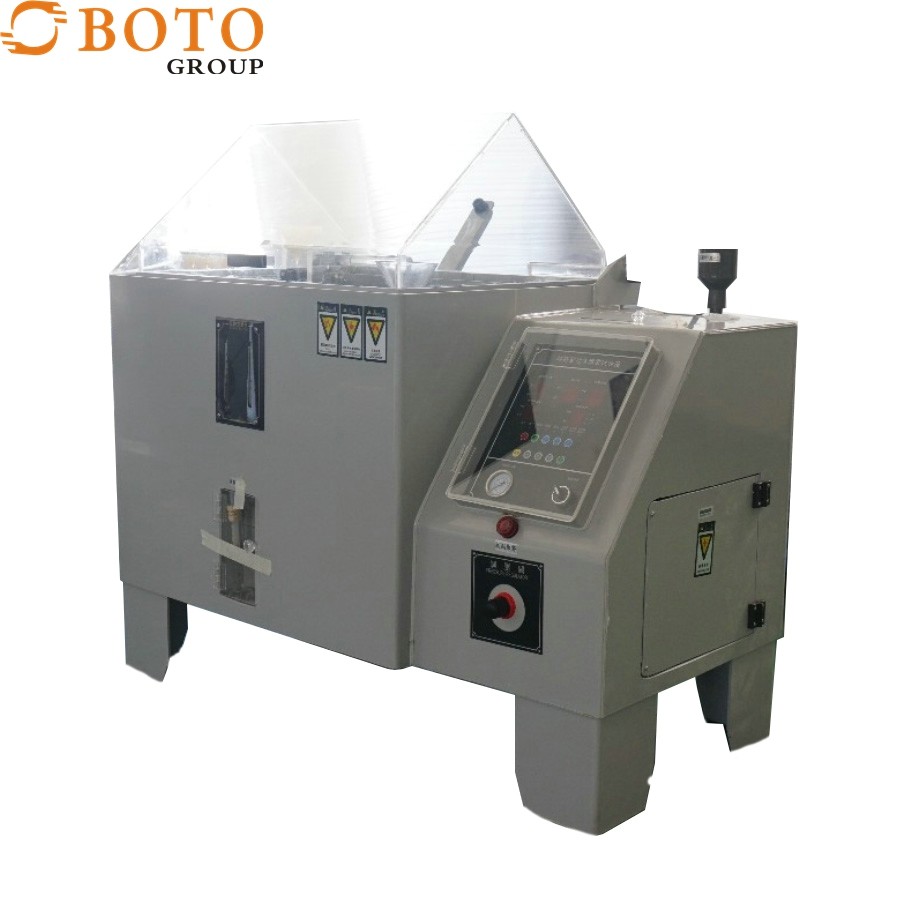

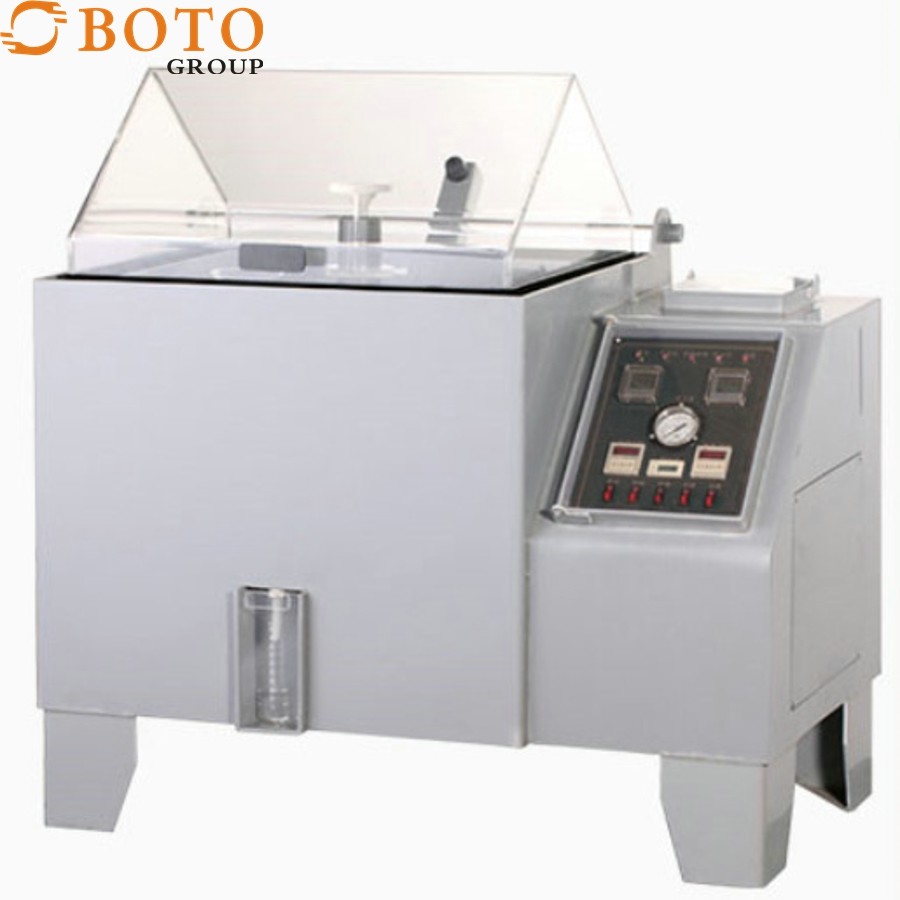

Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Packaging Dimensions: (WxDxH) 1610*1050*1400mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 150kg
HS Code: 8479899990
Specifications:
| Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp |
Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C |
||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
|
Compressed air pressure
|
1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
|
Test room relative humidity
|
85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method |
Programmable spray (including the continuous spray interrupted spray)
|
||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
