Name: Climatic Test Chamber For Auto Parts Rain Spray Test Chamber Environmental Test Chamber
Brand: BOTO GROUP LTD
SKU: BT-800
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

Climatic Test Chamber For Auto Parts Rain Spray Test Chamber Environmental Test Chamber

Auto Parts Rain Spray Test Chamber

Auto Parts Climatic Test Chamber

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-800

Request A Quote

Climatic Test Chamber For Auto Parts Rain Spray Test Chamber Environmental Test Chamber

Product Details

Inner Size:

900*900*900 D*W*H

Outside Size:

1120*1460*1660 D*W*H

Oscillating Tube Radius:

400mm

Spraying Hole Diameter:

φ0.4mm

Hole Spacing:

50 Mm

Oscillating Tube Range:

±45°, ±60°, ±90°, ±180°(theoretical Value)

Turntable Rotation Speed:

1r/min, Or Steeples Speed Regulating (optional)

Controller:

Programmable Color Display Touch Screen Controller, PC Link With Software, R-232 Interface

Highlight:

Auto Parts Rain Spray Test Chamber

Auto Parts Climatic Test Chamber

Payment & Shipping Terms

Minimum Order Quantity

1set

Packaging Details

wooden case

Delivery Time

10-15days

Payment Terms

T/T, Western Union

Supply Ability

800set/year

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

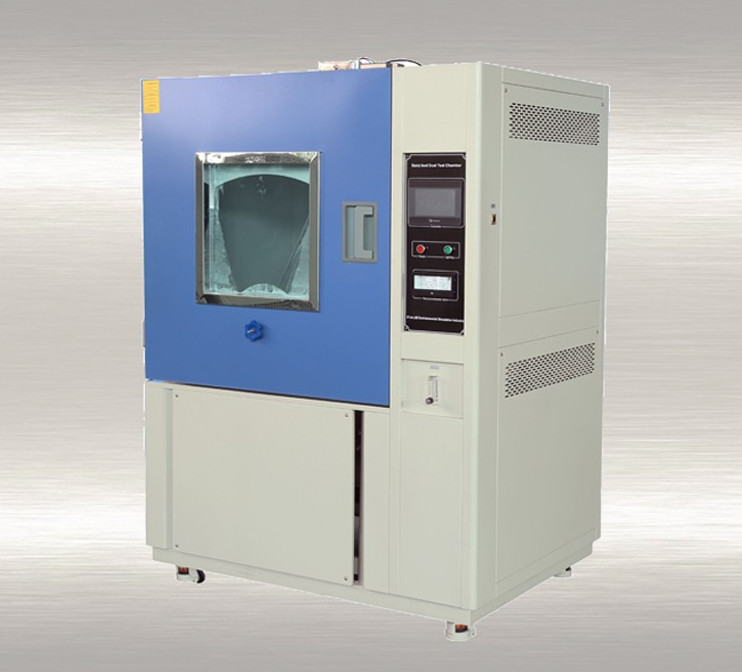

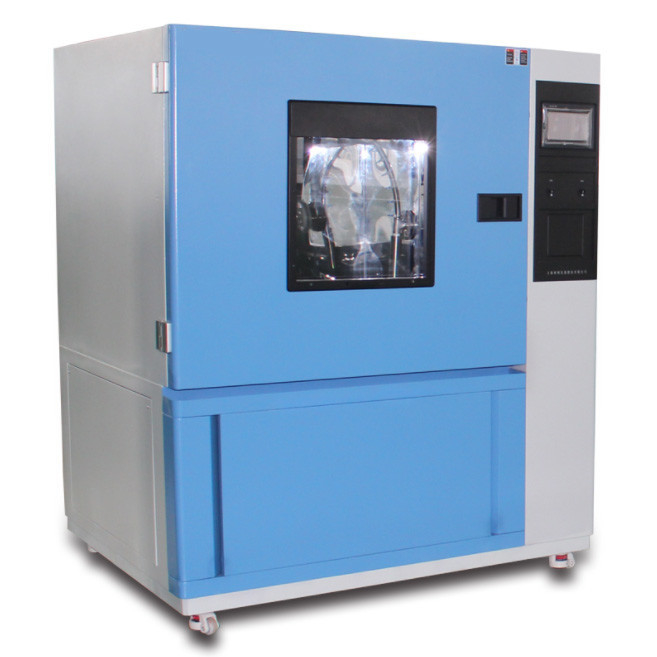

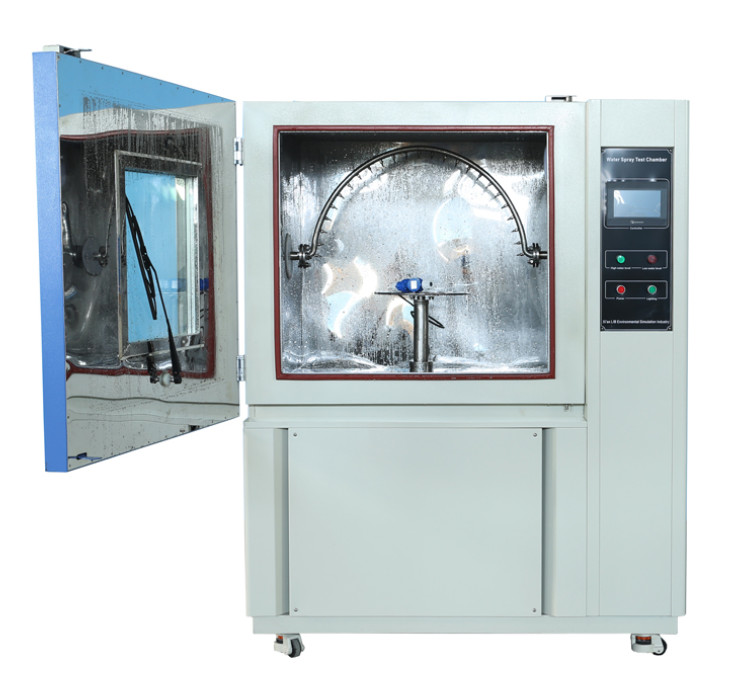

Rain Test Chamber For Auto Parts Rain Spray Test Chamber environmental test chamber

Advantage of IPX4 IP Waterproof Water Resistance Test Rain Spray Chamber

● Large viewing window with Interior lighting, easy to observe.

● Standard and Custom, We have different types for different sizes of samples.

● Water circulation system to save water and cost.

Product Name	Rain Test Chamber rain spray test chamber
Model	BT-800
Internal dimensions(mm)	900900900 DWH
Overall dimensions(mm)	112014601660 DWH
Oscillating tube radius	400mm
Spraying hole diameter	φ0.4mm
Hole spacing	50 mm
Oscillating tube range	±45°, ±60°, ±90°, ±180°(theoretical value)
Turntable rotation speed	1r/min, or steeples speed regulating (optional)
Controller	Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control	Flow meter
Observation window	Large viewing window with wiper
Water supply system	Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device	Electric leakage, short circuit, motor overheating, over-current protection
Interior material	SUS304 Stainless steel
Exterior material	Steel plate with protective coating
Power Supply	380V 50HZ
Standard	ISO 20653, IEC 60529

Climatic Test Chamber For Auto Parts Rain Spray Test Chamber Environmental Test Chamber 0

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

Climatic Test Chamber For Auto Parts Rain Spray Test Chamber Environmental Test Chamber 1

Climatic Test Chamber For Auto Parts Rain Spray Test Chamber Environmental Test Chamber 2
