Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing

Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing

thermal shock test chamber

cold hot environmental test chamber

climatic testing chamber with warranty

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-80

Contact Us
Request A Quote
Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing
Product Details
Product Name:
Thermal Shock Test Chamber
Internal Size:
80L:W500*H400*D400mm(Can Be Customized According To Customer Needs)
External Size:
80L:W1400*H1850*D1500mm(Can Be Customized According To Customer Needs)
Temperature Shock Range:
High Temperature +60℃~ +150℃ Low Temperature -40℃~ -10℃
Preheating Temperature Range:
60℃--200℃
High Temperature Tank Heating Time:
RT~+200℃≤30min (RT:+10~+30℃)
Precooling Temperature Range:
(-10)℃~ (-70)℃
Low Temperature Tank Cooling Time:
RT~-70℃≤50min (RT:+10~+30℃)
Temperature Fluctuation:
±1.0℃
Temperature Uniformity:
±2.0℃
Throttle Conversion Time:
≤5S
Impact Recovery Time:
(-40)℃~(+150)℃≤5min
Heating System:
Fin-type Radiating Tube-shaped Stainless Steel Electric Heater 1、 High Temperature Tank 9KW 2、 Low Temperature Tank 6KW
Compressor:
Original Imported French "Taikang" Brand Fully Enclosed Compressor
Condenser:
Water-cooled Condensing Agent
Evaporator:
Multi-stage Automatic Load Capacity Adjustment Of Bullying Fins
Expansion Valve:
Danvers Imported Original Components From Denmark
Refrigerant:
The Latest Environment-friendly Refrigerant R404A Imported From USA
Highlight:

thermal shock test chamber

,

cold hot environmental test chamber

,

climatic testing chamber with warranty

Payment & Shipping Terms
Minimum Order Quantity
1set
Packaging Details
wooden case
Delivery Time
1-10 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
30 Set/Sets per Day
RELATED PRODUCTS
Good price Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber online

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price
Good price B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage online

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price
Good price High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber online

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price
Good price High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz online

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price
Contact Us
Contact Now
Product Description

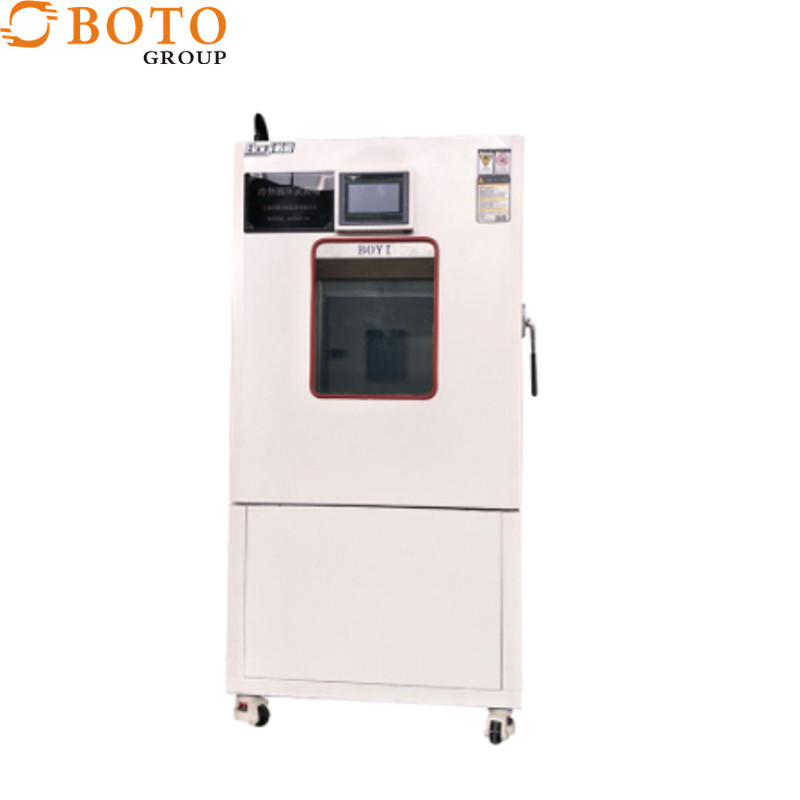

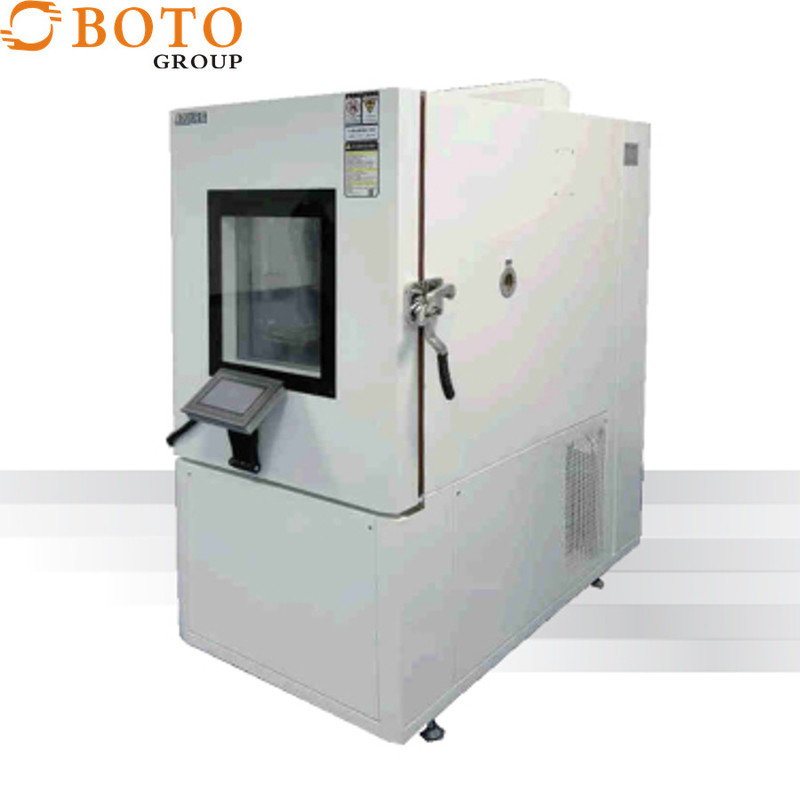

Latest Technology Cold Hot Thermal Shock Climatic Test Chamber



Product Description


Product Name
Thermal Shock Test Chamber
Internal size
80L:W500*H400*D400mm(Can be customized according to customer needs)
External size
80L:W1400*H1850*D1500mm(Can be customized according to customer needs)
Temperature shock range
High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃
Preheating temperature range
60℃--200℃
High temperature tank heating time
RT~+200℃≤30min (RT:+10~+30℃)
Precooling temperature range
(-10)℃~ (-70)℃
Low temperature tank cooling time
RT~-70℃≤50min (RT:+10~+30℃)
Temperature fluctuation
±1.0℃
Temperature uniformity
±2.0℃
Throttle conversion time
≤5S
Impact recovery time
(-40)℃~(+150)℃≤5min
Heating system
Fin-type radiating tube-shaped stainless steel electric heater
1, high temperature tank 9KW
2, low temperature tank 6KW
Compressor
Original imported French "Taikang" brand fully enclosed compressor
Condenser
Water-cooled condensing agent
Evaporator
Multi-stage automatic load capacity adjustment of bullying fins
Expansion valve
Danvers imported original components from Denmark
Refrigerant
The latest environment-friendly refrigerant R404A imported from USA



Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing 0Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing 1

Company profile

Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing 2

company honor and certification



Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing 3Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing 4



company cooperative partners

Environmental Test Chambers for Latest Technology Cold Hot Thermal Shock Climatic Testing 5
