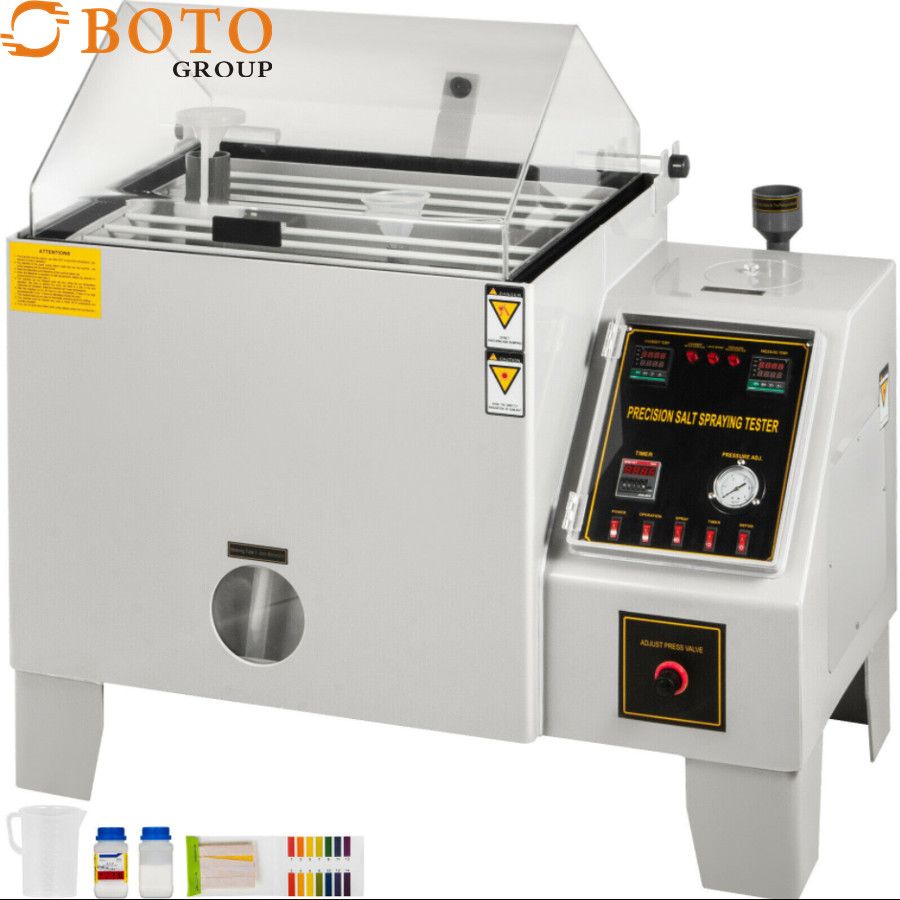

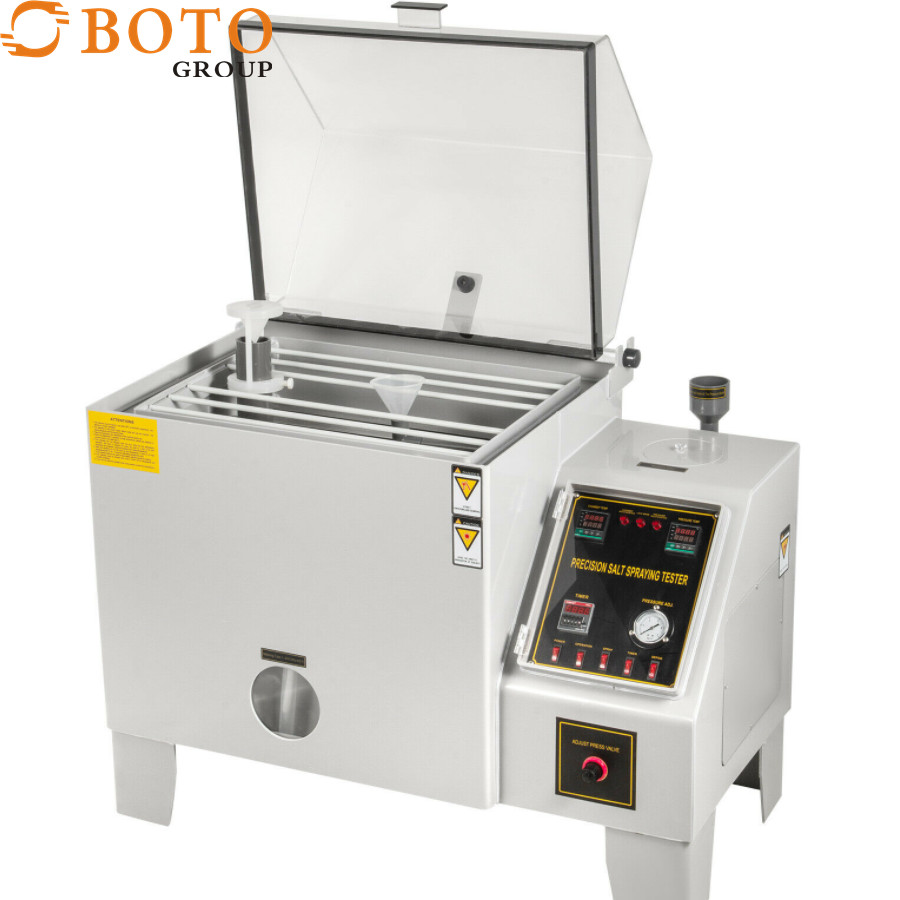

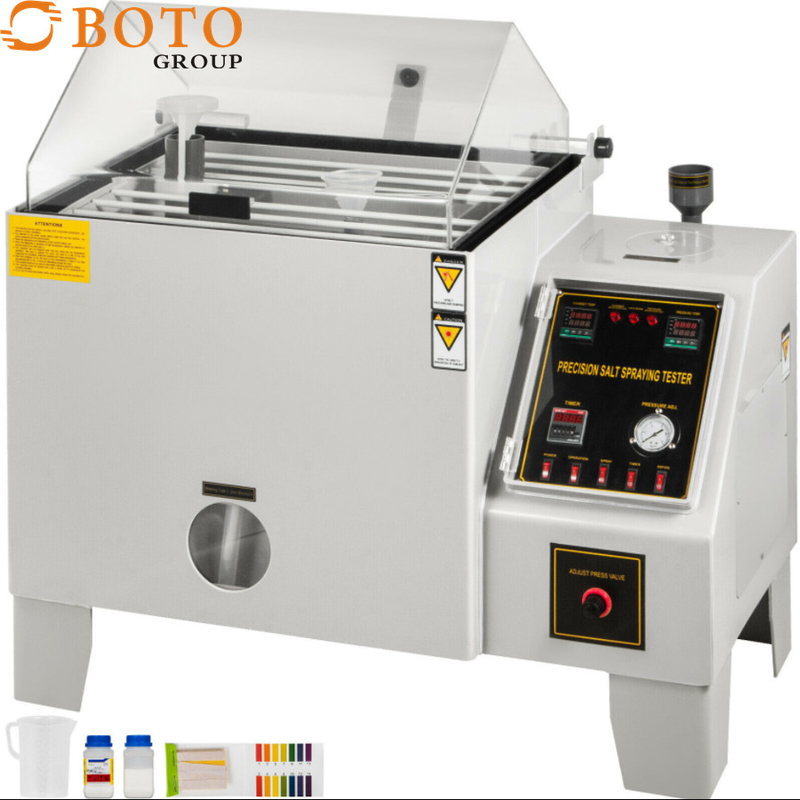

Anti-Corrosion Material Lab Equipment 800L Salt Spray Test Chamber Environment Test Machine
Equipment summary:
Salt Spray Corrosion Chamber used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.
Corresponding standard :
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Detailed configurations as follows:
1, according to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control
(A) Salt spray test: NSS, ACSS
1. testing room : 35 ℃ ± 1 ℃
2 saturated air barrels : 47 ℃ ± 1 ℃
(B) anti-corrosion test: CASS (copper acetate)
1.testing room: 50 ℃ ± 1 ℃
2 saturated air barrels: 63 ℃ ± 1 ℃
2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).
(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.
(B) Testing configuration is switch connector designed for SO2.
3, spray form:
(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.
(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.
(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).
Technical parameters:
| Model |
B-SST-108 |
B-SST-270 |
B-SST-480 |
| Inside box size(cm) |
60x45x40 |
90x60x50 |
120x80x50 |
| Outside box size(cm) |
107x60x118 |
141x88x128 |
190x110x140 |
| Testing room temperature |
Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ |
| Pressure barrel temperature |
Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ |
| Brine temperature |
35℃±1℃ 50℃±1℃ |
| Testing room Capacity |
108L |
270L |
480L |
| Brine tank capacity |
15L |
25L |
40L |
| Salt concentration |
The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) |
| Air pressure |
1.00±0.01kgf/cm2 |
| Spray volume |
1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) |
| Testing room relative humidity |
85% above |
| PH |
6.5~7.2 3.0~3.2 |
| Spray form |
Programmable spray (Including continuous and intermittent spray) |
| power |
AC220V1Φ10A |
AC220V1Φ15A |
AC220V1Φ20A |
