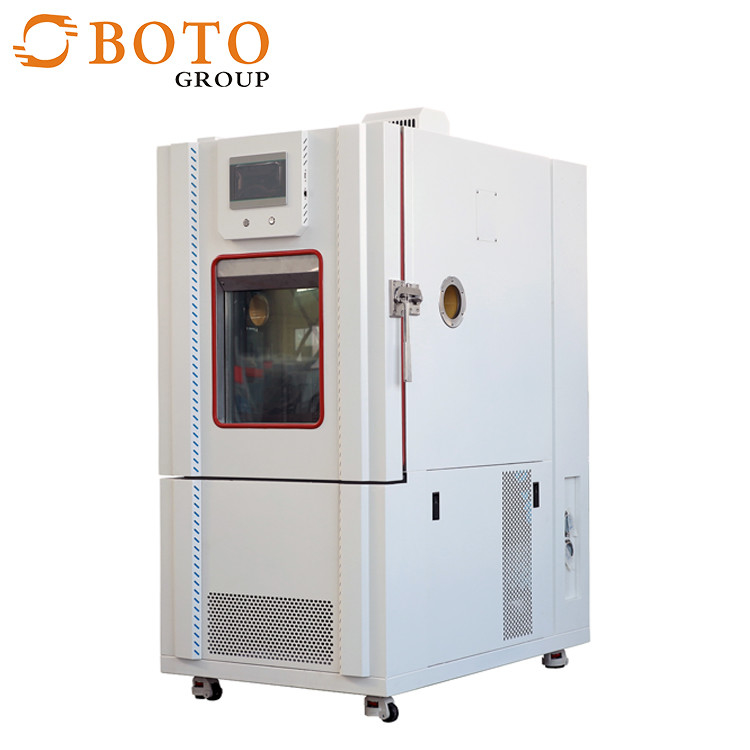

Stability Environmental Climatic Constant Temperature and Humidity Test Chamber
Product Description
Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals, food, chemicals, building materials, medical care, aerospace, etc.
TEST CHAMBER STANDARD FEATURES
| Model |
BT-E702-100-7 |
| Internal dimension (W*D*H) |
400*500*500mm |
| External dimension (W*D*H) |
600*1280*1380mm |
| Temperature range |
-70~+150℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
2℃ |
| Humidity range |
20~98%RH (Refer Image below) |
| Humidity fluctuation |
±2.5%RH |
| Humidity uniformity |
3%RH |
| Cooling speed |
1℃/min in average (without loading) |
| Heating speed |
3℃/min in average (without loading) |
| Internal chamber material |
SUS#304 stainless steel, mirror finished |
| External chamber material |
Stainless steel |
| Cooling method |
Air cooling |
| Controller |
LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test
|
| Insulation material |
50mm high density rigid Polyurethane foam |
| Heater |
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor |
France Tecumseh compressor x 2sets |
| Lighting |
Heat resistance |
| Temperature sensor |
PT-100 dry and wet bulb sensor |
| Observation window |
Tempered glass |
| Testing hole |
Diameter 50mm, for cable routing |
| Sample tray |
SUS#304 stainless steel, 2pcs |
| Safety protection device |
Protection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage
|
TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
TEST CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
TEST CHAMBER PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Company introduction
BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
