Name: Nonmetallic Materials Sunlight Resistant And Aging Testing Apparatus
Brand: BOTO GROUP LTD
SKU: B-ZW
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

Nonmetallic Materials Sunlight Resistant And Aging Testing Apparatus

Aging Resistant Testing Apparatus

Sunlight Resistant Testing Apparatus

Nonmetallic Materials Testing Apparatus

Place of Origin:

CHINA

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

B-ZW

Request A Quote

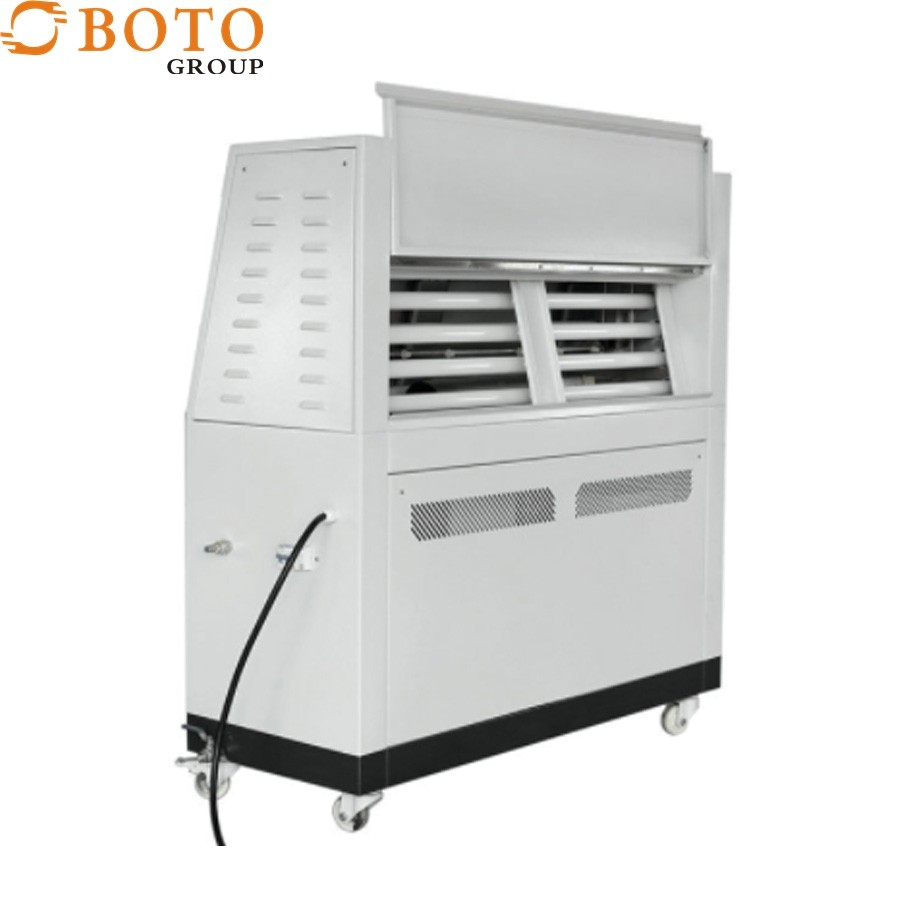

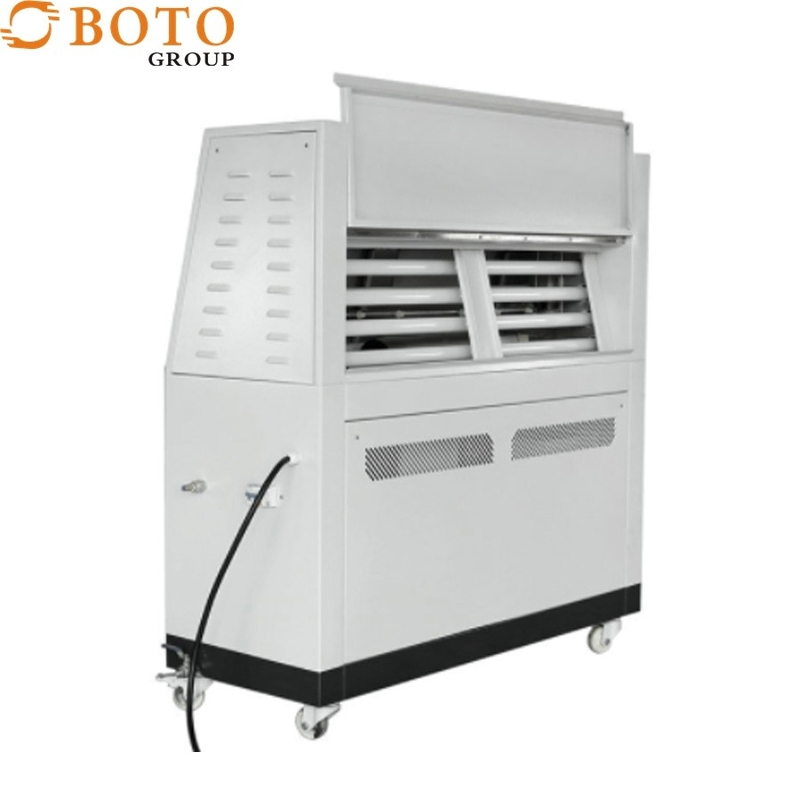

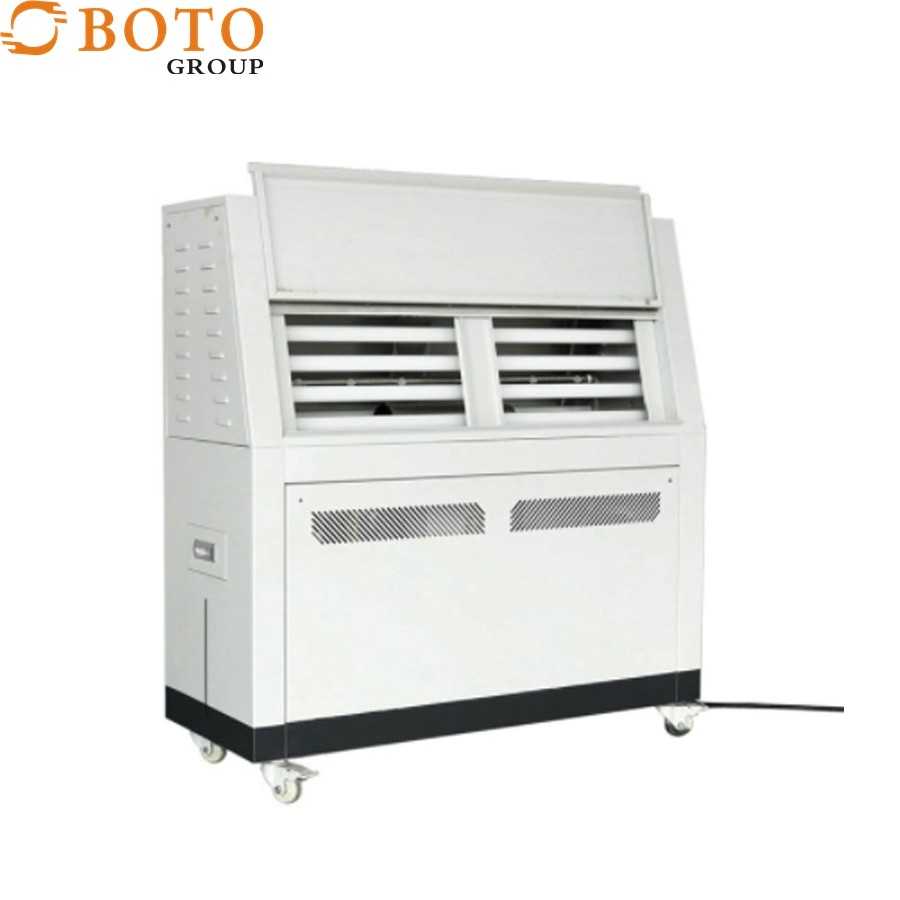

Nonmetallic Materials Sunlight Resistant And Aging Testing Apparatus

Product Details

Power::

Electronic

Certification::

ISO, CE

Customized Support::

OEM, ODM

Material::

SUS#304 Stainless Steel Plate

Temperature Range::

Ange: RT+10℃~70℃

Irradiance::

1.0W/m2

Package:

Strong Wooden Package

Testing Time::

0~999H, Adjustable

Highlight:

Aging Resistant Testing Apparatus

Sunlight Resistant Testing Apparatus

Nonmetallic Materials Testing Apparatus

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiation

Packaging Details

PLY-WOODEN CASE

Delivery Time

20-30workdays

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000Set/month

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

Product description: This uv aging testing chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

Applications

1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature. 2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation. 3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

Item	Specification
Chamber dimension (WDH)	13005001460mm
Chamber material	SUS#304 stainless steel
Temperature range	RT to 70℃
Temperature fluctuation	≤±1.0℃
Temperature uniformity	3℃
Humidity range:	≥75%RH
Controller	Programmable controller, LCD touch screen
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	Exposure, condensation and water spray test cycle is programmable
Water spray cycle	Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage	8L/day
Distance from sample to lamp	55±2mm
Centre distance between lamps	65~70mm
Irradiance range	0.45~0.90W/m2
Lamp power	40W/Piece
UV lamps	Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Testing time	0~999H, adjustable
Specimen Size	75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Protection system	Overload short circuit protection
	Over temperature protection
	Water lacking protection
	Earth leakage protection
	Auto shut off protection

Chamber Structure

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System: Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature. The radiometer probe is fixed so as to avoid the frequent installation and disassembly. The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement. The radiation intensity is not more than 50W/m2. The illumination and condensation can be controlled independently or alternating and circularly. Test Specimen Mounting: The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, uv aging testing chamber is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

Product Effects

FAQ

 1. How can we guarantee quality?

Continuous testing is performed after production is completed to ensure product stability.

All parts come from manufacturers of world-renowned brands.

2.What can you buy from us?

Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?

We are a manufacturer with ISO9001, CE international certificates, *12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.

Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;

Language Spoken:English,Chinese
