Place of Origin: | China |
---|---|
Brand Name: | BOTO |
Certification: | CE certificate |
Model Number: | B-T-225(A~E) |
Minimum Order Quantity: | 1 Set |
Price: | Discussible |
Packaging Details: | Plastic+wooden case |
Delivery Time: | 5-15 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 set/ Month |
Temp Fluctudtiont: | ±0.5℃ | Relative Humidity: | 20%~98%RH |
---|---|---|---|
Pull Down Time: | About0.7~1℃/min | Heat-up Time: | About3~5℃/min |
Power Source: | 2.5KW~7KW | Temp Uniformity: | ±1.0℃ |
Temp&Humi.Deviation: | ±1.0℃/±3.0℃RH | Interior: | SUS#304Stainless Steel Plate |
High Light: | Temperature Humidity Test Chamber,Environmental Conditions Test Chamber,Simulate Environmental Conditions Test Chamber |

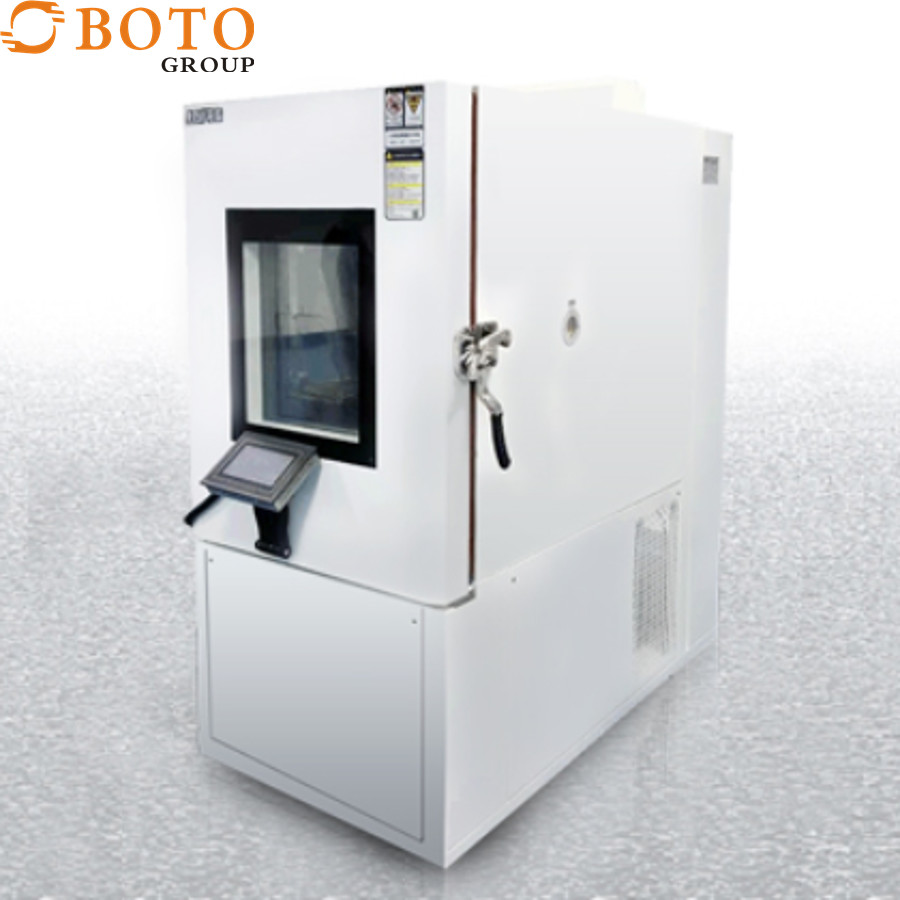

GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006
Product introduction
A temperature humidity test chamber is a piece of equipment used to simulate different environmental conditions such as temperature and humidity. It is commonly used in the manufacturing industry to test the durability and reliability of various products under different environmental conditions.
The chamber is designed to maintain a specific temperature and humidity level, which can be programmed and controlled by the user. The temperature and humidity can be set to different levels, depending on the requirements of the test.
The chamber typically consists of a sealed chamber, a temperature control system, and a humidity control system. The sealed chamber is made of a durable material such as stainless steel or aluminum and is insulated to prevent heat loss or gain.
The temperature control system consists of a heating and cooling system that maintains the desired temperature level within the chamber. The humidity control system consists of a humidifier and dehumidifier that maintain the desired humidity level.
Some temperature humidity test chambers also have additional features such as a programmable controller, data logging capabilities, and alarms to alert the user if the temperature or humidity levels deviate from the set parameters.
Features
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A
Model:
(Model) | dry heat | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
damp and hot | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
Internal Dim | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
External Dim(W*H*D) | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
Relative Humidity | 20%~98%RH(10%~98%RH非标可选) | ||||
heat-up time | About3~5℃/min | ||||
Pull down time | About0.7~1℃/min | ||||
Temp Fluctudtiont | ±0.5℃ | ||||
Temp Uniformity | ±1.0℃ | ||||
Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | ||||
Interior | SUS#304Stainless steel plate | ||||
Exterior | Coating or SUS#304Stainless steel plate | ||||
Power Source | AV:220V/380V 50/60Hz | ||||
power(KW) | 2KW~6.5KW | 2.5KW~7KW | 3KW~8KW | 4KW~10KW |
FAQ
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
