Name: 14k/min Temperature Changing Rate Environmental Test Chambers For Reliability Testing
Brand: BOTO GROUP LTD
SKU: BT-TH-100
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

14k/min Temperature Changing Rate Environmental Test Chambers For Reliability Testing

Temperature Changing Rate Environmental Test Chambers

14k/min Environmental Test Chambers

Reliability Testing Environmental Test Chambers

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO9001

Model Number:

BT-TH-100

Request A Quote

Product Details

Model:

BT-TH-100

Internal Dimension (mm):

400*500*500

Overall Dimension (mm):

860*1050*1620

Interior Volume:

100L

Low Type:

A: -40℃ B:-70℃ C ：-86℃

Temperature Range:

-20℃ ～+150 ℃

Temperature Fluctuation:

± 0.5 ℃

Temperature Deviation:

± 2.0 ℃

Cooling Rate:

1 ℃ / Min

Heating Rate:

3 ℃ / Min

Refrigerant:

R404A, R23

Controller:

Programmable Color LCD Touch Screen Controller

Temperature Sensor:

PTR Platinum Resistance PT100Ω/MV A-class, Accuracy 0.001℃

Exterior Material:

Steel Plate With Protective Coating

Interior Material:

SUS304 Stainless Steel

Standard Configuration:

1 Cable Hole (Φ 50,) With Plug; 2 Shelves

Power Supply:

220V 50Hz / 380V 50Hz

Maximum Noise:

65 DBA

Environmental Conditional:

5℃～+35 ℃ ≤85% RH

Highlight:

Temperature Changing Rate Environmental Test Chambers

14k/min Environmental Test Chambers

Reliability Testing Environmental Test Chambers

Payment & Shipping Terms

Minimum Order Quantity

1set

Packaging Details

wooden case

Delivery Time

5-25 days

Payment Terms

L/C, T/T

Supply Ability

100 Set/Sets per Month

Climate Controlled Test Chambers Temperature Uniformity ±1°C Customizable Available

Get Best Price

Environmental Test Chambers Wide Temperature Range -70℃~+180℃ High Precision For Reliability Testing

Get Best Price

Environmental Simulation Chambers Humidity Range 20% ~ 98% Suitable for Testing and Research Purposes

Get Best Price

Environmental Testing Chambers Featuring Programmable Control System for Product Testing Applications

Get Best Price

86-021-69588263

Contact Now

Product Description

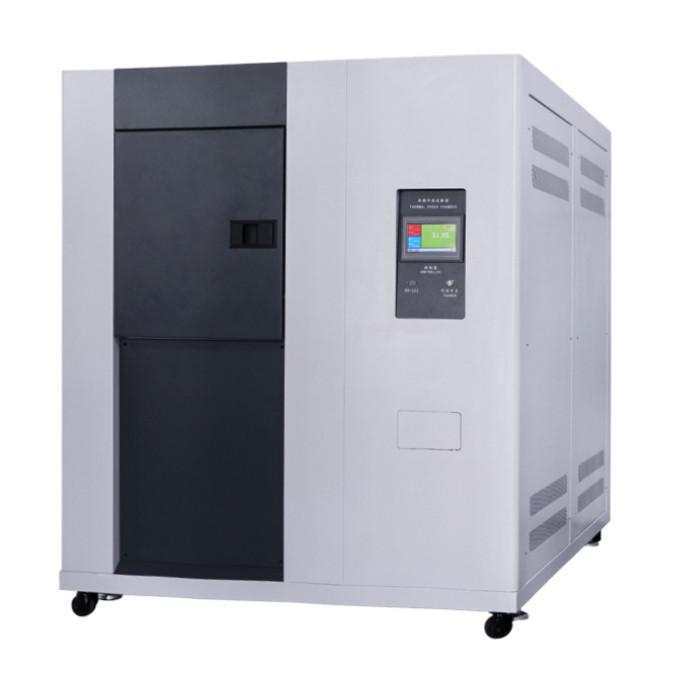

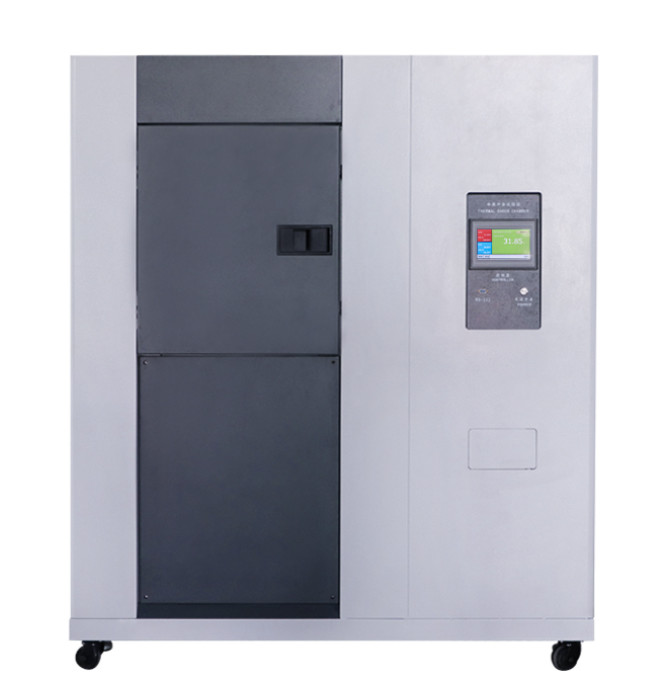

14k/min Temperature changing Rare Rapid Rate Temperature Cycle Test Chamber

Technical Parameters

Name	14k/min Temperature changing Rare Rapid Rate Temperature Cycle Test Chamber
Model	BT-TH-100	BT-TH-225
Internal Dimension (mm)	400500500	500600750
Overall Dimension (mm)	86010501620	96011501860
Interior Volume	100L	225L
Low type	A: -40℃ B:-70℃ C -86℃
Temperature Range	-20℃ ～+150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Refrigerant	R404A, R23
Controller	Programmable color LCD touch screen controller
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply	220V 50Hz / 380V 50Hz
Maximum Noise	65 dBA
Environmental Conditional	5℃～+35 ℃ ≤85% RH

Detail Design

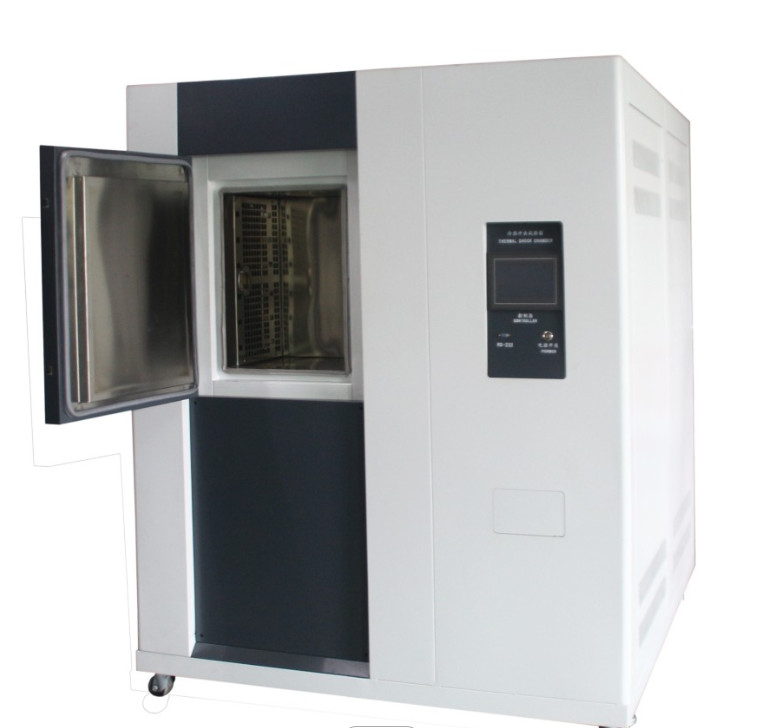

Test Area

1.SUS304 stainless steel 2.Internal Dimension:50L and 80L 3.Rust-proof to high and low temperature and moisture corrosion; 4.Adjustable sample shelves, facilitate the various sizes of test samples.

Cable Hole

1.Inner hole diameter is 50mm. 2.Convenient for the cable to pass through,and provide power for the test piece 3.Reliably Sealing 4.Customizable test hole size

Controller

1.PID programmable color touch screen controller 2.Can be network connection computer 3.Can edit 100 programs 100 segments 4.Multiple languages are available

Advantage

1.Multiple model:T-100,T-225,T-500,T-800,T-1000 2.Testing small and large test pieces,Can be powered 2.Low types: -20℃/-40℃/-60℃/-70℃/-86℃ 3.Free calibration 4. 72 hours commissioning before delivery to ensure product performance
