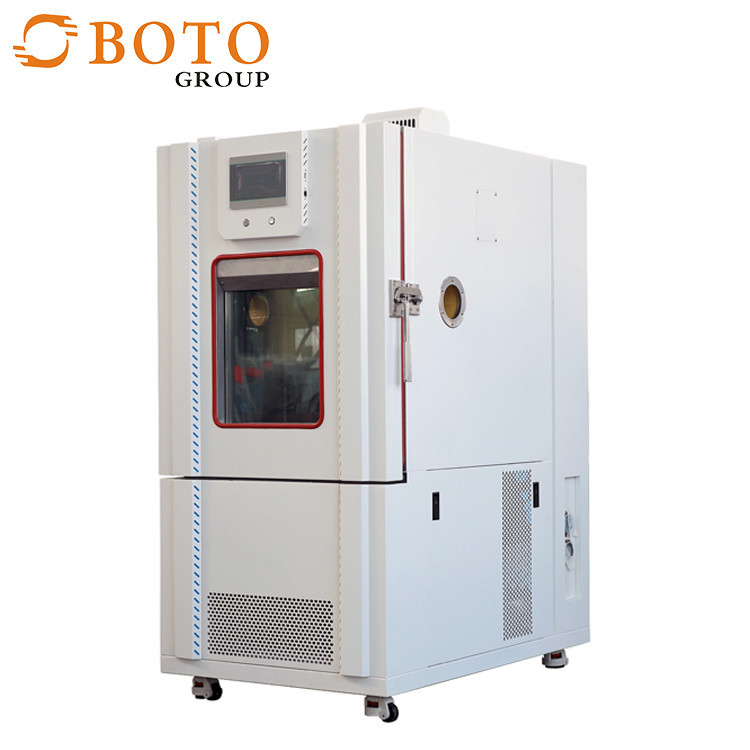

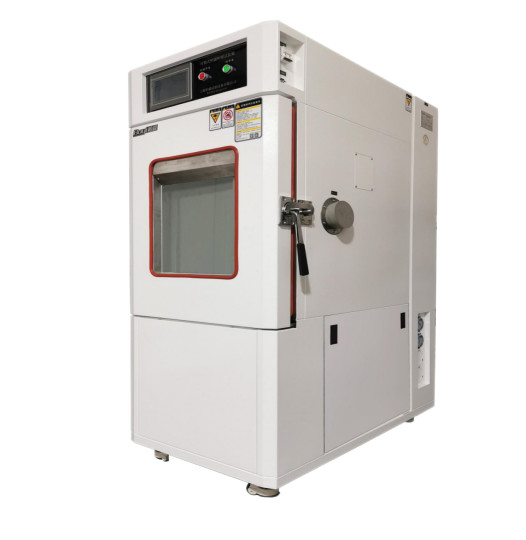

Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing

Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-E708-1000
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Cooling Speed (+150℃~-20℃): 5℃/min, Non-linear Control (without Loading) Heating Speed (-20℃~+150℃): 5℃/min, Non-linear Control (without Loading)
Compressor: Germany Bock Expansion System: Electronic Expansion Valve
Refrigerant: R404A, R23 Internal Dimension (W*D*H): 1000*800*1000mm
External Dimension (W*D*H): 1580*1700*2260mm Working Capacity: 800 Liter
Material Of Internal Chamber: SUS#304 Stainless Steel, Mirror Finished Material Of External Chamber: Stainless Steel With Paint Spray
Temperature Range: -20℃~+120℃ Temperature Fluctuation: ±1℃
Heating Rate: 5℃/min Cooling Rate: 5℃/min
Sample Tray: SUS#304 Stainless Steel, 3pcs Testing Hole: Diameter 50mm, For Cable Routing
Power: Three-phase, 380V/50Hz Safety Protection Device: Leakage Over-temperature Compressor Over-voltage And Overload Heater Short Circuit
Highlight:

High Temperature Thermal Cycle Shock Chamber

,

High Temperature Test Chamber

,

Thermal Cycle Shock environmental test chambers

Thermal Cycle Shock Rapid Temperature Change Test Chamber



Products Description



Thermal Cycle Shock Rapid Temperature Change Test Chamber is ideally suited for specimen test requiring quick changes of temperature. It can evaluate the failure of thermal mechanical properties of product. Normally, the temperature rate is less than 20℃/min, which can achieve the real application environment of testing sample by the fast ramp rate.

APPLICATION

1. To simulate test environment with different temperature and humidity.

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, and drying test.

DESIGN FEATURES OF THE CHAMBER

1. It has cable ports are provided on the left side to allow easy wiring of specimens for measurement or voltage application.

2. The door equipped with hingespreventing auto-closing.

3. It can designed to comply with major environmental test standards like IEC, JEDEC, SAE and etc.

4. This chamber is safety tested with CE certificate.

PROGRAMMABLE CONTROLLER

1. It adopts high-precision programmable touch screen controller for easy and stable operation.

2. Step types includes ramp, soak, jump, auto-start, and end.

TEST STANDARD

IEC60068-2-14 and etc.
TEMPERATURE RAMP SYSTEM (HEATING & COOLING)
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 0
Item
Specification
Cooling Speed
(+150℃~-20℃)
5℃/min, non-linear control (without loading)
Heating Speed
(-20℃~+150℃)
5℃/min, non-linear control (without loading)
Refrigeration Unit
System
air-cooled
Compressor
Germany Bock
Expansion System
electronic expansion valve
Refrigerant
R404A, R23
Details Images
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 1
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 2
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 3
Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 4
Product Paramenters
Item
Specification
Internal Dimension (W*D*H)
1000*800*1000mm
External Dimension (W*D*H)
1580*1700*2260mm
Working Capacity
800 liter
Material of Internal Chamber
SUS#304 stainless steel, mirror finished
Material of External Chamber
stainless steel with paint spray
Temperature Range
-20℃~+120℃
Temperature Fluctuation
±1℃
Heating Rate
5℃/min
Cooling Rate
5℃/min
Sample Tray
SUS#304 stainless steel, 3pcs
Testing Hole
diameter 50mm, for cable routing
Power
three-phase, 380V/50Hz
Safety Protection Device
leakage
over-temperature
compressor over-voltage and overload
heater short circuit

Company profile

Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 5Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 6

Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 7Thermal Cycle Shock Rapid Temperature Change Test Chamber For High Temperature Testing 8
