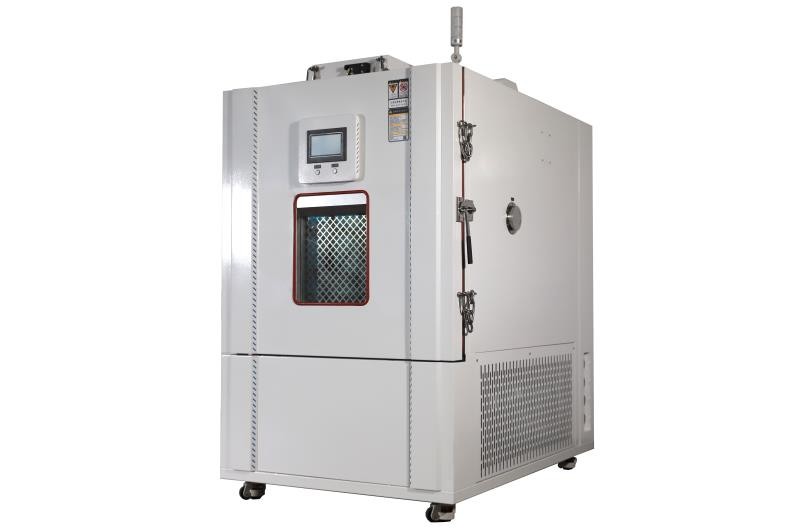

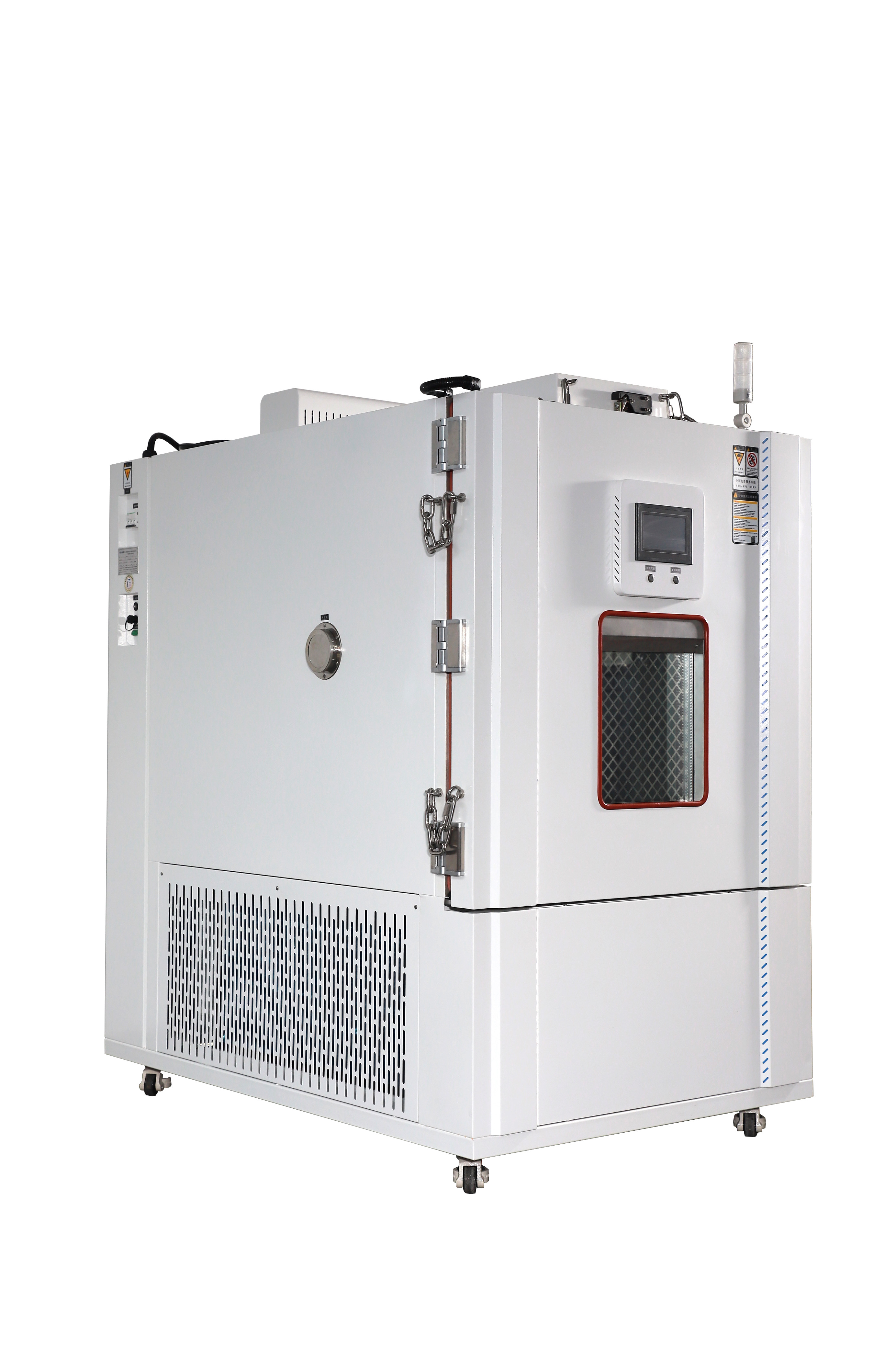

Accurate BOTO Environmental Test Chambers For Reliability Testing

Accurate BOTO Environmental Test Chambers For Reliability Testing
Accurate BOTO Environmental Test Chambers For Reliability Testing
Accurate BOTO Environmental Test Chambers For Reliability Testing Accurate BOTO Environmental Test Chambers For Reliability Testing Accurate BOTO Environmental Test Chambers For Reliability Testing
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-LY-228
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Volume: 228L Inner Size(W*H*D): 735*700*443mm
Temperature Humidity Range: -70℃~+180℃ 10-98%RH(when Temperature Range 10℃-95℃) Temperature Fluctuation: ≤±0.5℃
Temperature Uniformity: ≤2℃ Departure: ≤2.0℃
Temperature Control Accuracy: ≤±0.1℃ Heating Rate: 15℃/min In Linear Way(-55-100℃)
Cooling Rate: 15℃/min In Linear Way(-55-100℃)
Highlight:

Accurate BOTO Environmental Test Chambers

,

Reliability Testing BOTO Environmental Test Chambers

,

BOTO Environmental Test Chambers

BOTO Rapid Temperature Change Ess Environment Test Chamber

Product Description



The equipment is a device for environmental stress screening (temperature cycle), high and low temperature environmental adaptability and reliability test. For various electromechanical, electronic products are used to detect early faults, simulate the actual temperature environment and assess the ability of the product to withstand temperature.

Standards:

GB/T 2423.1-2008, GJB150.4A-200, GB/T 2423.22-2012/IEC60068-2-14:2009, ISO2423.22-1987

Specifications



Model BT-LY-2228
Volume 228L
Inner Size(W*H*D) 735*700*443mm
Temperature Humidity Range

-70℃~+180℃

10-98%RH(when temperature range 10℃-95℃)
Temperature Fluctuation ≤±0.5℃
Temperature Uniformity ≤2℃
Departure ≤2.0℃
Temperature Control Accuracy ≤±0.1℃
Heating Rate 15℃/min in linear way(-55-100℃)
Cooling Rate

15℃/min in linear way(-55-100℃)
