Name: Programmable Temperature And Humidity Test Chamber Environmental Test Chambers
Brand: BOTO GROUP LTD
SKU: B-T-225L
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers

Programmable Environmental Test Chambers

Programmable Temperature Test Chamber

Programmable Humidity Test Chamber

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

B-T-225L

Request A Quote

Product Details

Inner Box Size W*H*D（cm）:

50*75*60

Carton Size W*H*D（cm）:

107*161*117

Inner Box Volume:

225L

Temperature And Humidity Control Range:

A:-20℃~150℃ B：-40℃~150℃ C:-60℃~150℃ D: -70℃~150℃ (Special Temperature And Humidity Specifications Can Be Customized)

Temperature And Humidity Fluctuation:

±0.5℃；±2.5%RH

Temperature And Humidity Deviation:

±0.5℃-±2℃；±3%RH（>75%RH）; ±5%RH(≤75%RH)

Controller Resolution:

±0.3℃；±2.5%RH

Controller Brand:

Programmable Korea TEMI880 Touch Screen Controller

Inner Wall:

SUS304#steel Plate

Outer Wall:

SUS304#steel Plate Mist Treatment

Thermal Insulation Material:

High Temperature Resistant High Density Ethyl Chloroformate Foam Insulating Material

System Air Circulation Mode:

Centrifugal Fan-broadband Forced Air Circulation

Cooling Mode:

Single Stage Mechanical Compression System

Refrigerating Machine:

Fully Enclosed Piston French Taikang Compressor

Refrigerant:

R404A Or American DuPont Environmental Refrigerant (R23+R404)

Condensation Method:

Air-cooled

Heater:

Ni-Cr Wire Heater

Humidifier:

Semi-closed Steam Humidification

Water Supply Mode:

Automatic Circulating Water Supply

Safety Device:

No Fuse Switch,( Compressor Overload, Refrigerant High And Low Pressure, Ultra-humidity And Over-temperature) Protection Switch, Fuse Failure Warning System)

Power:

220V AC±10% 50HZ

Highlight:

Programmable Environmental Test Chambers

Programmable Temperature Test Chamber

Programmable Humidity Test Chamber

Payment & Shipping Terms

Minimum Order Quantity

1set

Packaging Details

wooden case

Delivery Time

5-25 days

Payment Terms

L/C, T/T, Western Union

Supply Ability

50 sets/ per day

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

Programmable Temperature And Humidity Test Chamber Weathering Test Chamber

Product Name	Constant Temperature and Humidity Test Chamber
Inner box size WHD(cm)	507560
Carton size WHD(cm)	107161117
Inner box volume	225L
Temperature and humidity control range	A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D: -70℃~150℃ (Special temperature and humidity specifications can be customized)
Temperature and humidity fluctuation	±0.5℃；±2.5%RH
Temperature and humidity deviation	±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller resolution	±0.3℃；±2.5%RH
Controller Brand	Programmable Korea TEMI880 touch screen controller
Inner wall	SUS304#steel plate
Outer wall	SUS304#steel plate mist treatment
Thermal insulation material	High temperature resistant high density ethyl chloroformate foam insulating material
System air circulation mode	Centrifugal fan-broadband forced air circulation
Cooling mode	Single stage mechanical compression system
Refrigerating machine	Fully enclosed piston French Taikang compressor
Refrigerant	R404A or American DuPont environmental refrigerant (R23+R404)
Condensation method	Air-cooled
Heater	Ni-Cr wire heater
Humidifier	Semi-closed steam humidification
Water supply mode	Automatic circulating water supply
Safety device	No fuse switch,( compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse failure warning system)
Power	220V AC±10% 50HZ

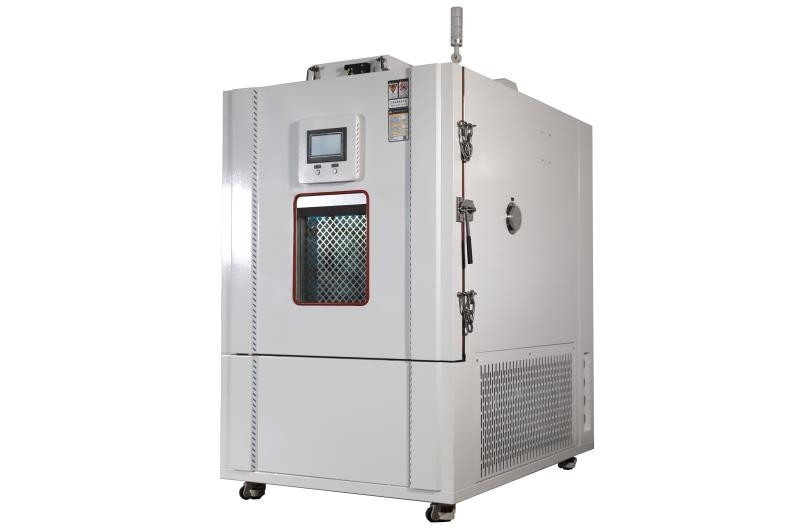

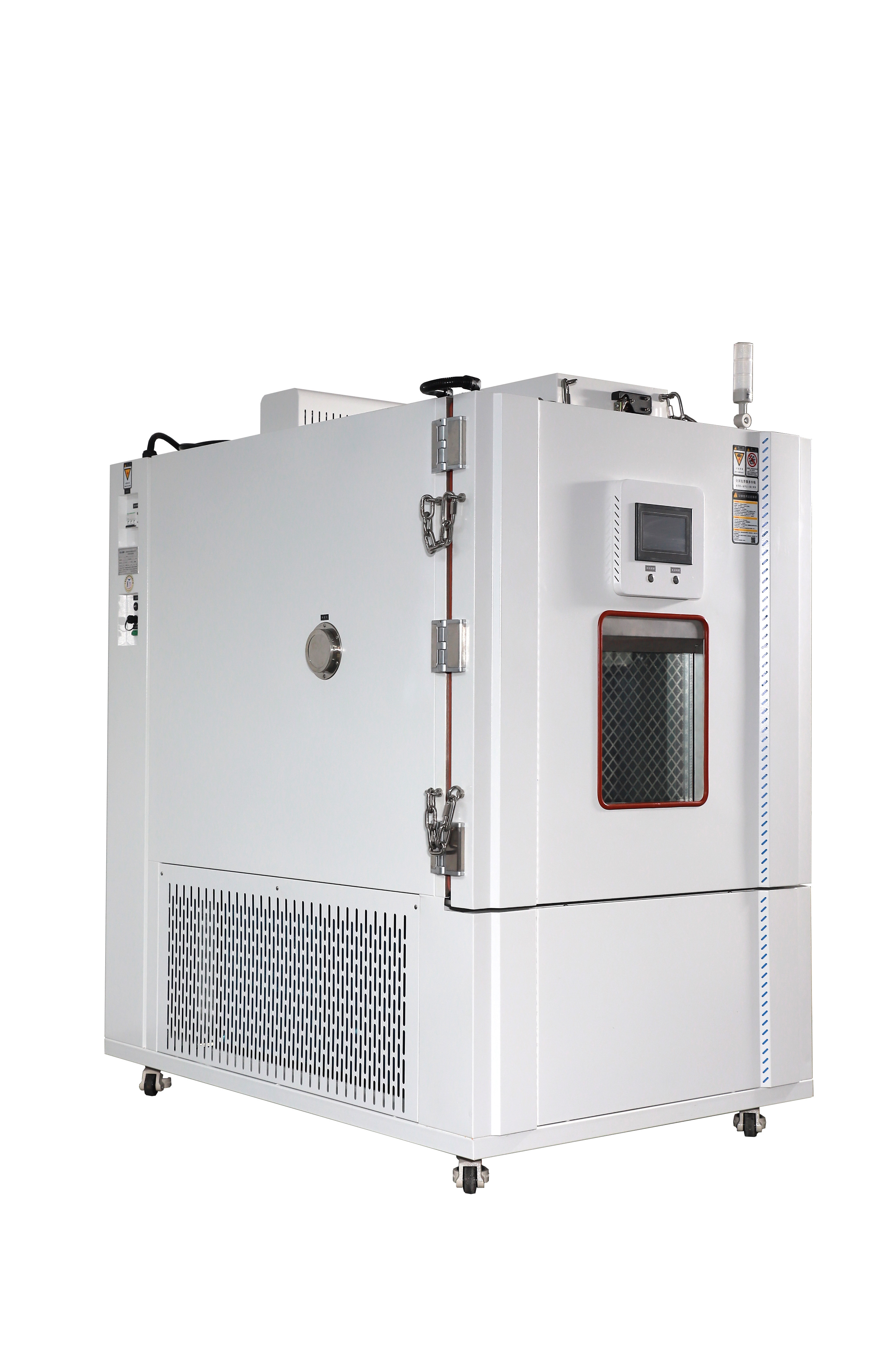

Product pictures

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 0

Production Process

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 3

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 4

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 5

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.

Main equipment

Constant Temperature and Humidity Test Chamber
Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
UV Accelerated Aging Test Chamber
Mini Environmental chamber / Desktop Environmental Test Chamber
Walk in Constant Temperature and Humidity Lab
High Temperature Chamber and Other Lab Test Equipment etc.

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 6

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.

Main market

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 7

Certification

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 8

Cooperative partners

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 9

BOTO ADVANTAGE

Programmable Temperature And Humidity Test Chamber Environmental Test Chambers 10
