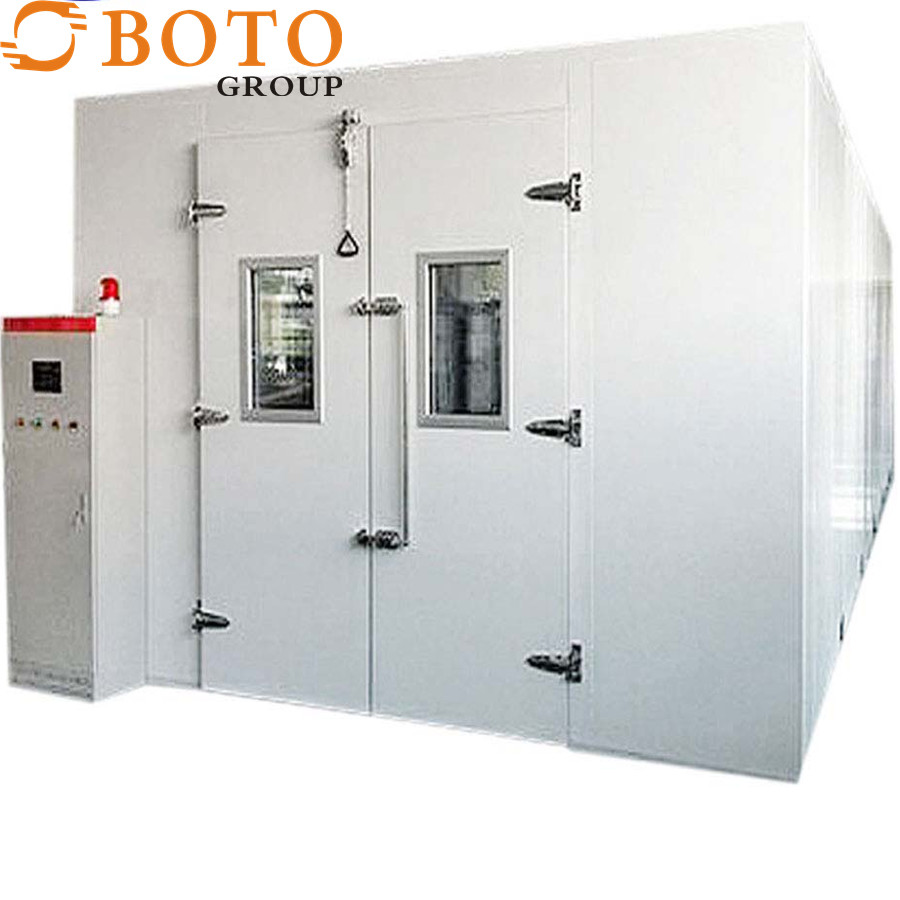

Constant Temperature And Humidity Room Walk In Test Chamber Environment Chamber
Short Dscription:
The Constant Temperature and Humidity Room Walk-in Test Chamber, also known as the Environment Chamber, is an advanced environmental testing solution designed to simulate various climatic conditions for a wide range of applications. This walk-in test chamber allows for the assessment of large-scale products and materials under controlled temperature and humidity levels, making it ideal for industries such as electronics, telecommunications, automotive, and more.
Key Features:
- Large Capacity: With customizable interior dimensions, the walk-in test chamber can accommodate large test samples, making it suitable for quality inspection of big test samples like electronic products, home appliances, and automotive components.
- Temperature and Humidity Control: The chamber offers precise control over temperature and humidity, with the ability to set and maintain conditions that replicate real-world environmental stresses.
- Energy Efficiency: Designed with energy-saving technologies, the chamber reduces power consumption while improving reliability and performance.
- User-Friendly Operation: Equipped with a large LCD touch panel, the chamber allows for easy operation and programming of testing parameters, including temperature cycles and combined programs.
- Data Logging: The chamber is capable of recording and storing data logs, which can be exported for analysis, ensuring traceability and quality control.
- Safety Features: It includes multiple safety interlocks and alarms to ensure operator safety and equipment integrity.
- Customization: The chamber can be customized to meet specific industry standards and testing requirements, including the ability to control up to 50 environmental testing chambers with a central control system.
Technical Specifications:
| Model |
BT-K-A |
| Volume |
10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
| Temperature range |
-65 °C ~+80 °C |
| Humidity range |
20%~95%R.H. |
| Accuracy/uniformity |
±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/volatility |
±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling time |
5.0 °C /minute |
| Inside material |
SUS#304 Stainless Steel |
| Insulation material |
High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system |
Water-cooled / two-stage compressor |
| Protection |
No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories |
recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller |
German Siemens PLC or TH-900C Korea or TEMI |
| Compressor |
France's Tecumseh Brand or Germany Bitzer |
| Power |
1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Optional accessories:
1. Cable Port: Two size of cable port is available: &50mm, &100mm.
2. Double door
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)
8. Dehumidifier
9. The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21°C,23%RH)for electrostatic reliability tests.
10. Temperature and humidity recorder
11. 100mm width recording paper with 6 dots
12. 180mm width recording paper with 12 dots
13. Status indication lamp
14. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
15. Water purifier
16. Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
17. Power socket
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
