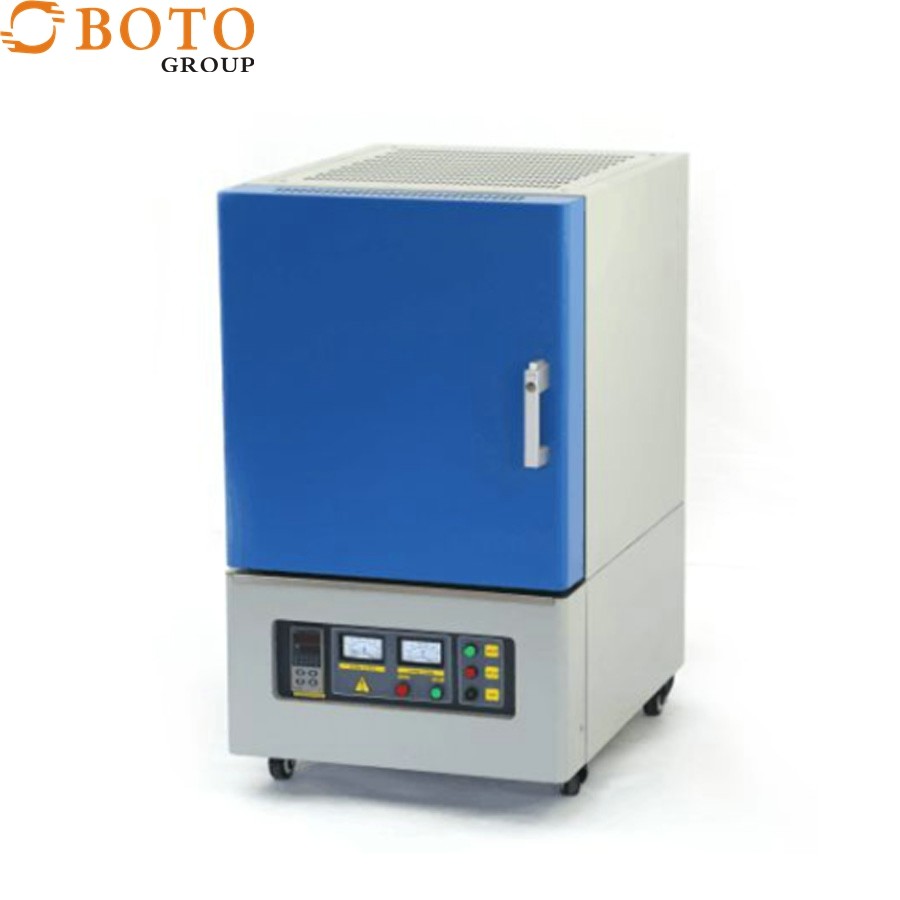

Low Energy Consumption High Temperature Laboratory 1800°C Muffle Furnace

Key Features:

• High-Temperature Capability: With a maximum temperature of 1800°C, this furnace is suitable for high-temperature processes and material analysis.
• Energy Efficiency: The multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, ensures low heat loss and low energy consumption.
• PID Temperature Control: Equipped with a PID and SCR control mode, the furnace offers precise temperature control within a range of 50-1800°C.
• Durable Construction: The shell is made of metal Q235 low-carbon steel, providing a strong and corrosion-resistant structure.
• Safety Features: Includes a door-opening power-off safety protection switch and over-temperature and fault alarms with automatic safety protection.
• Programmable Controller: Advanced controllers meet complex process requirements, with programmable 32 program segments for flexible operation.
• Heating System: High-quality MoSi2 heating elements are safely installed on both sides of the furnace, providing free heat radiation heating in the cavity for energy-saving and high efficiency

,

Technical Specifications:

Safety:

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Characteristic:

11) high temperature BOX series muffle furnace, the control system is an international leading, with safe and reliable, simple operation, convenient maintenance.
2) Use 708P type temperature controller (Professional PID programmable control) for automatic temperature control with high temperature control precision (±1ºC). the temperature range is wide, and high uniformity of furnace temperature.
3) Furnace chamber adopts the vacuum suction molding alumina fiber, has the characteristics of energy saving, light volume, high cooling speed, the temperature field balancing, good thermal shock resistance ability.
4) Furnace body have the internal and external double-layer structure, heat insulation effect is good, the outer furnace wall temperature is low. Fast heating and heat preservation performance is good, the energy saving effect is obvious.
5) Equipped with rapid air cooling system. Oven door and oven door frame to cool the air cooling design, guarantee the oven door use for a long time not out of shape.
6) The stove top can install vent, furnace and control system integration design, compact and beautiful.
