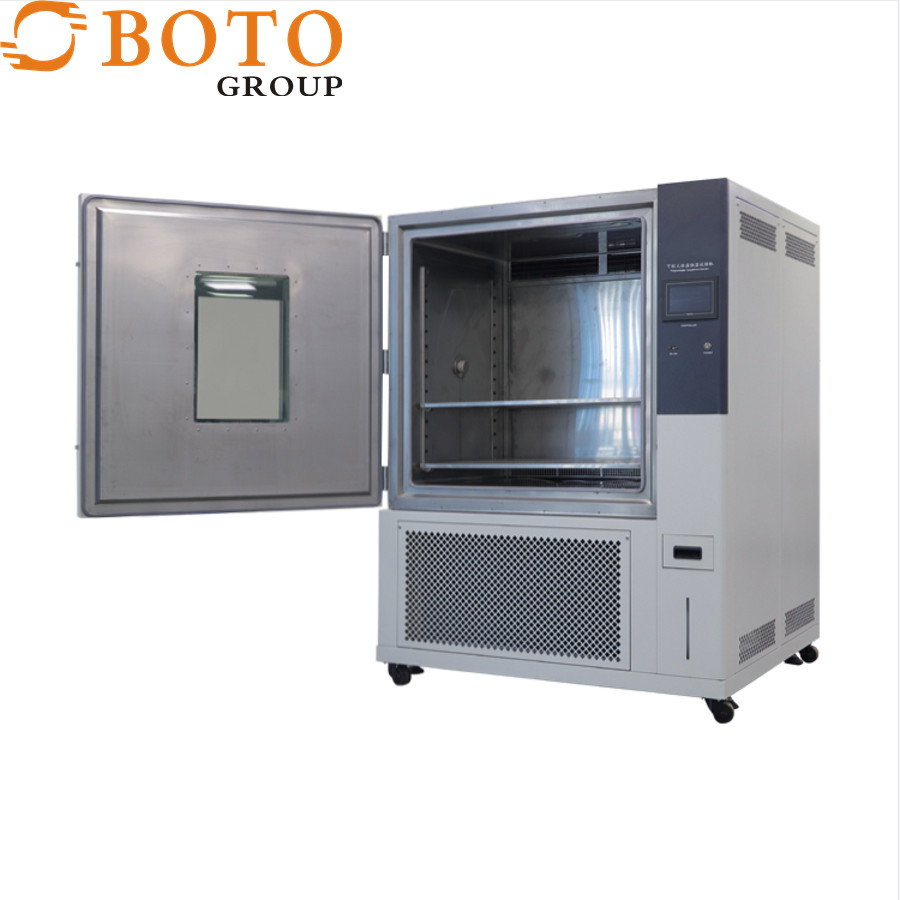

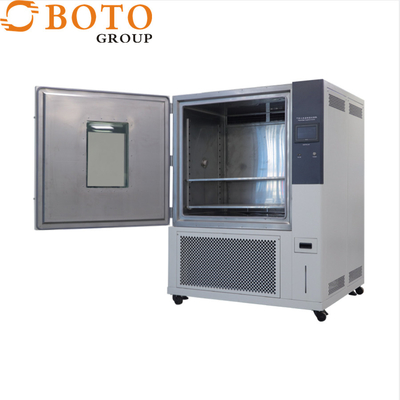

Industrial High And Low Temperature Simulated Environmental Aging Test Chambe
Short description:
The High Temperature Aging Chamber is a critical piece of equipment used to simulate high-temperature environments for testing the lifespan and stability of various products. It is widely applied in industries such as electronics, electrical, communication, power, automotive, and aerospace for quality assurance of products. This chamber accelerates the aging process of items, providing insights into their long-term performance under stress conditions typically within a shorter timeframe.
Characteristics:
1. Adopt microcomputer electronic digital control mode, precise and accurate, stable and reliable.
2. Heating adopts forced circulation air supply mode, the temperature rises and accelerates and distributes evenly.
3. PID control system, double over temperature protection, safe and reliable;
4. Temperature setting is simple and easy to operate.
5. Multiple safety protection: current overload protection, over-temperature protection, leakage protection.
6.perfect design: the arc shape and surface coating processing, high body appearance, and USES the plane has no reaction, easy to operate, safe and reliable.
7. bright, large observation window: three layers of vacuum window and philips energy-saving fluorescent lamps, window without wiper mist, keep clear observation of the effect of the sample (s) to observe the situation.
8. humidification system pipeline and control circuit separation: humidification system pipeline and power supply, controller, PCB separation, avoid affected circuit by pipeline leakage, improve security.
9.advanced refrigeration and control system: closed compressor imported from Europe and US, import environmental protection refrigerant, the world famous brand refrigeration devices, original installation import LCD touch screen controller, friendly interface, easy operation.
Technical parameter:
| Product Name |
High temperature aging chamber |
| Inside size W*H*D (cm) |
20L; 36L; 62L; Customized |
| Temperature range |
-10℃~+150℃±2℃(or requirement) |
| Humidity range |
30%~95%RH±2%RH(or requirement) |
| Volatility / uniformly |
≤±0.5℃/≤±2℃ |
| Accuracy |
+0.5℃,-3%R.H |
| heated/cooling |
About 4.0℃/min / about 1.0℃/min(specific condition is cooling
5~10℃/min)
|
| Heated speed |
1.0~3.0℃/min |
| Cool speed |
0.7~1.0℃/min |
| Material |
SUS 304# stainless steel |
Equipment summary:
Our company focuses on development and production of constant temperature and humidity testing machine, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.
Corresponding standard:
1 GB11158 high-temperature technical condition.
2 GB10589-89 low-temperature technical condition
3 GB10592-89 high-low-temperature technical condition
4 GB/T10586-89 humidity technical condition
5 GB/T2423.1-2001 low-temperature testing method
6 GB/T2423.2-2001 high-temperature testing method
7 GB/T2423.3-93 humidity and heat testing method
8 GB/T2423.4-93 method of humidity and heat alternating
9 GB/T2423.22-2001 temperature testing method
10 IEC60068-2-1.1990 low-temperature testing method
11 IEC60068-2-2.1974 high-temperature testing method
12 GJB150.3 high-temperature test
13 GJB150.4 low-temperature test
14 GJB150.9 humidity test
