Name: Automotive High-Performance Rapid Temperature Test Chamber Color Touchscreen, Multi-Safety Protection For Defense, Electronics
Brand: BOTO GROUP LTD
SKU: B-TH-80
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

Automotive High-Performance Rapid Temperature Test Chamber Color Touchscreen, Multi-Safety Protection For Defense, Electronics

Automotive temperature test chamber with touchscreen

High-performance test chamber for electronics

Multi-safety protection environmental test chamber

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

B-TH-80

Request A Quote

Automotive High-Performance Rapid Temperature Test Chamber Color Touchscreen, Multi-Safety Protection For Defense, Electronics

Product Details

Volum:

80L

Power:

Electronic

Usage:

Universal Testing Machine,Textile Testing Instrument

Temperature Range:

-70~180C

Temperature Fluctuation:

±0.5℃

Color:

Gray And White,Light Grey

Product Name:

Temperature Humidity Incubator

Warranty:

12 Months

Material:

#SUS 304 Stainless Steel

Highlight:

Automotive temperature test chamber with touchscreen

High-performance test chamber for electronics

Multi-safety protection environmental test chamber

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

wooden case

Delivery Time

15 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000sets/mouth

Automotive Customizable Heat of oil test chamber with Japanese Mitsubishi PLC about 20~260C

Get Best Price

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

Contact Now

Product Description

Rapid Temperature Test Chamber

Description:

The Rapid Temperature Test Chamber is a high-performance environmental testing system designed for accelerated thermal cycling. Constructed with a SUS and 304 stainless steel interior and durable exterior coating, it supports a temperature range from -70°C to 180°C with adjustable ramp rates from 1°C to 15°C/min (linear or non-linear).

Equipped with an imported color touchscreen controller, USB data export, and multi-level safety protections, it ensures reliable, stable operation. Widely used in defense, aerospace, automotive, electronics, and pharmaceutical industries for product development and quality assurance.

Specifiction:

Inner Size(mm)	400×350×300	400×500×400	500×600×500	500×750×600
Temperature Range	High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature Deviation	Less than ±2°C
Temperature Conversion Time	Less than 10S
Temperature Recovery Time	Less than 5min
Material	External material: SUS#304 Stainless steel plate Internal material:SUS#304Stainless steel plate
Coolting System	Water-cooled or air-cooled, Tecumseh compressor in France, environment friendly refrigerant
Controllor	Programmable temperature controllor
Temperature Sensor	PT 100 *3
Setting Range	TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE
Resolution	TEMPERATURE : 0.01°C / TIME : 1 MIN
Output Mode	PID + PWM + SSR CONTROL METHOD
Simulated Load IC (KG)	3.5kg
Standard Accessories	Cable hole, lighting equipment
Cooling System	Water-cooled/air-filled type
Power	AC380V/50HZ Three-phase four-wire ac power
Additional Features	The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device
Remarks	It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days

Product Detail:

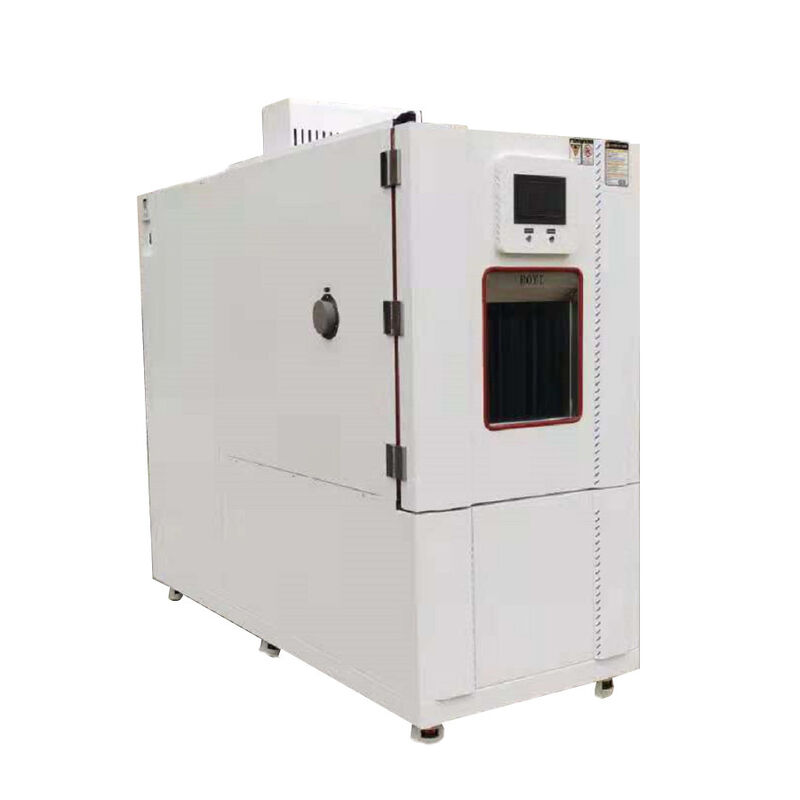

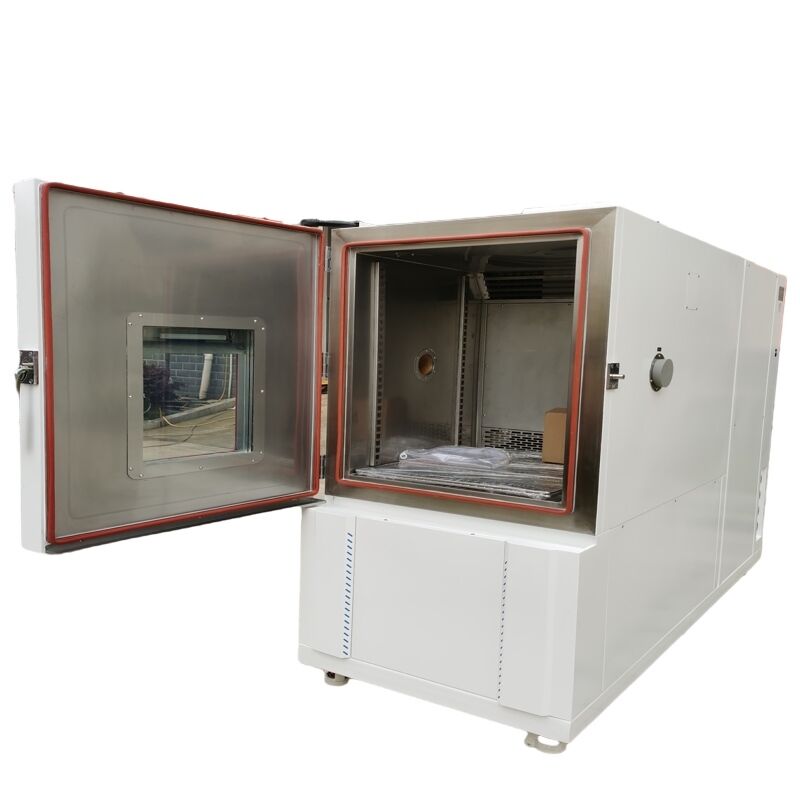

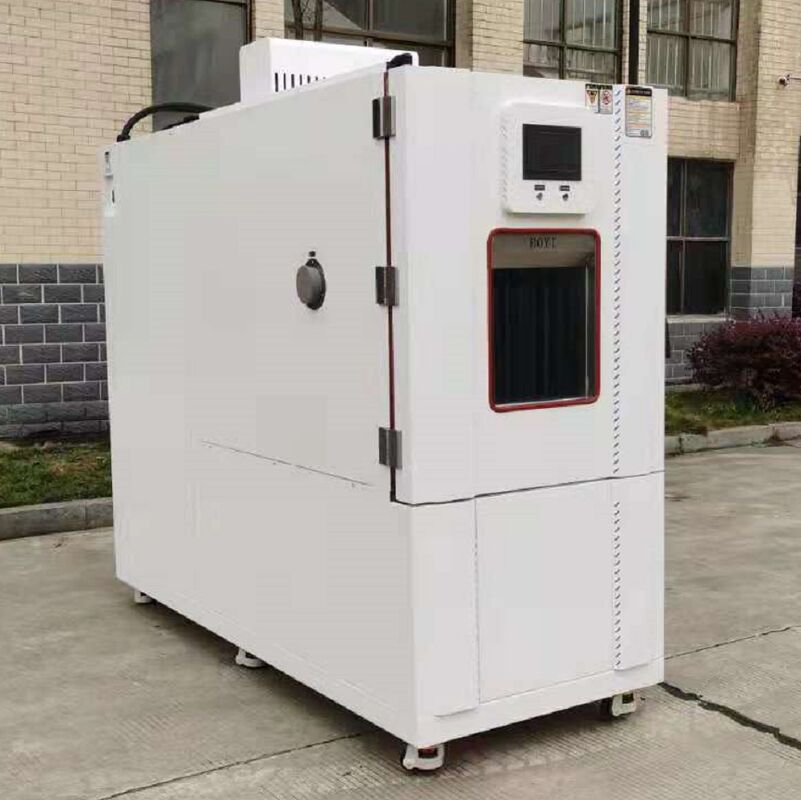

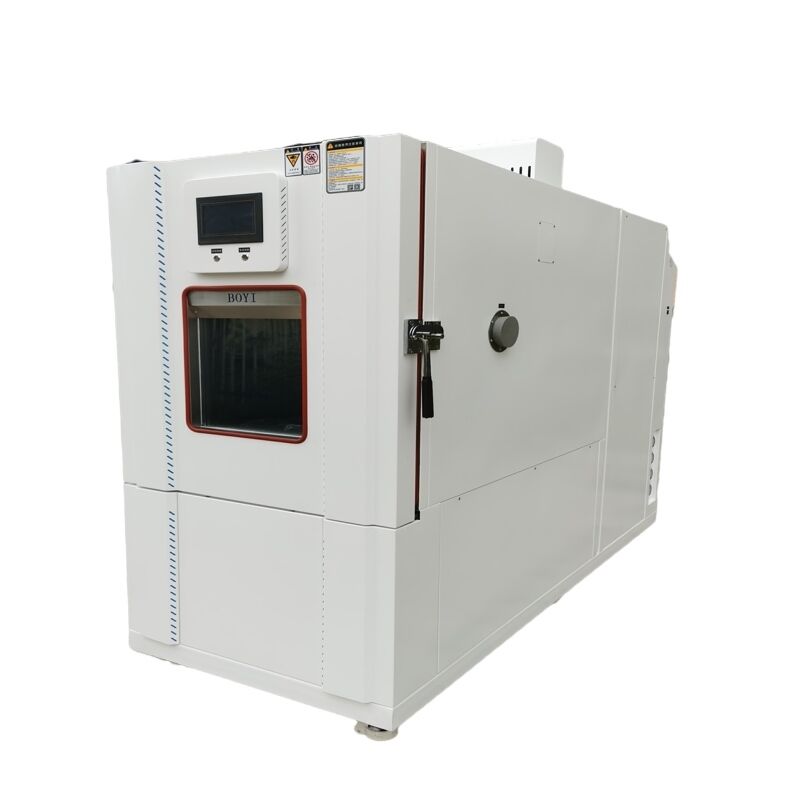

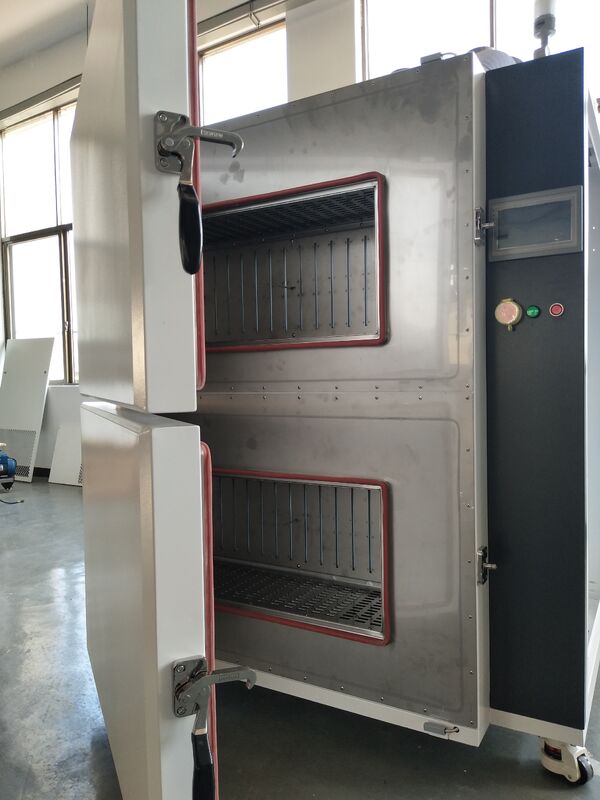

Automotive High-Performance Rapid Temperature Test Chamber Color Touchscreen, Multi-Safety Protection For Defense, Electronics 0

Pre-service:

24 Hours online service for your consult.

Middle service:

Do customer's request:

Choose payment term you convienent.

Promptly production and delivery,inform you in time.

After sale service:

1 year warranty service and all life maintenance.

Technical Egineer are avalible for oversea trainning.

Remote control technical consult
