Name: Configurable Two-Box Thermal Shock Test Chamber With-60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics
Brand: BOTO GROUP LTD
SKU: B-TCT-401
Price: 10,140.00 USD
Availability: InStock

Home > Products > Temperature Humidity Test Chamber >

Configurable Two-Box Thermal Shock Test Chamber With-60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics

Two-Box Thermal Shock Test Chamber with multi-safety protection

Thermal Shock Test Chamber for aerospace electronics

Temperature test chamber with -60°C to 200°C range

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

B-TCT-401

Request A Quote

Configurable Two-Box Thermal Shock Test Chamber With-60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics

Product Details

Volum:

401L

Power:

2500W

Usage:

Universal Testing Machine,Process Testing Machine,Temperature Humidity Test Chamber For Resisting Heat

Temperature Range:

-40 ~ +150℃

Material:

SUS 304#Stainless Steel

Color:

White,Gray And White

Product Name:

Walk In Temperature Humidity Test Environmental Chamber

Warranty:

24 Monthes

Highlight:

Two-Box Thermal Shock Test Chamber with multi-safety protection

Thermal Shock Test Chamber for aerospace electronics

Temperature test chamber with -60°C to 200°C range

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

wooden case

Delivery Time

15 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000sets/mouth

Customizable And High-Performance Three-Box Thermal Shock Test Chamber , PLC Touchscreen Control For Defense, Electronics, Pharma

Get Best Price

Configurable Two-Box Thermal Shock Test Chamber With-60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics

Get Best Price

Temperature Test Chamber Cycling Chamber 2.5~7KW Humidity ±3.0% RHhumidity Test Chamber

Get Best Price

Low Temperature Test ChamberCycling Chamber 2.5~7KW Humidity ±3.0% RHhumidity Test Chamber

Get Best Price

Contact Now

Product Description

Two-Box Thermal Shock Test Chamber

Description:

Two-Box Thermal Shock Test Chamber is designed for rapid temperature change testing, featuring a high-precision temperature control system with a range from -60°C to 200°C and a recovery time within 3 minutes. Constructed with an SUS#304 stainless steel interior and a durable coated or stainless steel exterior, it supports programmable cycle times and automatic alarm functions. Multi-level safety protections ensure reliable operation. Widely used in defense, aerospace, automotive, electronics, and industrial equipment manufacturing for product reliability testing and quality assurance.

Implementation and meeting standards:
GB/T 10592-2008 :high and low temperature test chamber technical conditions
GB/T 2423.22-2008 :temperature change rate test method
GJB 150.3A-2009 :high temperature test method
GJB 150.4A-2009 :low temperature test method
GJB 150.5A-2009 :temperature impact test method
GJB 360B-2009:test methods for electronic and electrical components 107 requirements for temperature shock tests
GB/T 5170.2-2008:test method for environmental test equipment of electric and
electronic products Temperature test equipment

Feature:

Product name			Two box type temperature impact test box
Product model			BT-2TS100	BT-2TS180	BT-2TS300	BT-2TS1000
Nominal volume	Unit/L		100	180	300	1000
Inner size	Width × depth × height (mm)		500×500×400	600×600×500	700×700×600	1000×1000×1000
External size	Width × depth × height (mm)		1020×1200×1850	1200×1500×1900	1350×1600×1980	2450×1800×1980
Basket size	Width × depth × height (mm)		350×350×250	450×450×350	550×550×450	800×800×800
Operating mode			A.vertical basket B. horizontal basket type
Performance index		temperature range	A,-75℃~200℃ B,-90℃~200℃ C,-120℃~200℃
		Impact range	A,-55℃~160℃ B,-75℃~160℃ C,-85℃~160℃
		Temperature fluctuation	±0.5℃
		Temperature uniformity	≤±2.0℃
		Temperature deviation	≤±2.0℃
		heating rate	RT~+200℃,≤40Min
		Cooling rate	A,+25℃~-75℃,≤60Min;B,+25℃~-90℃,≤80Min;C,+25℃~-90℃,≤100Min;
		Temperature conversion time	≤15s
		Temperature recovery time	≤5Min
		Exposure conditions	High temperature exposure 30Mins; Low temperature exposure 30Mins
Refrigeration method			Compressor refrigeration
Cooling method			Air-cooled/water-cooled
Main components		Control System	Siemens programmable controller + touch screen + independent development program
		Heating system	Fully independent system, high efficiency stainless steel finned tube heater
		Cooling System	Importer-type scroll compressor
		Circulatory system	Temperature and low noise motor, stainless steel centrifugal impeller
Main materials		Carton material	High-quality carbon steel plate, phosphating electrostatic spray treatment
		Inner box material	International standard SUS304# stainless steel mirror treatment
		Insulation material	Hard flame retardant polyurethane foam
		Sealing material	High and low temperature environment-friendly silicone rubber seal
voltage			380±10% VAC,50Hz;3L+N+G
Communication Interface			RS232 communication interface, USB data interface
Standard configuration			1 sample holder, 1 test lead hole, 1 silicone plug
Optional accessories			Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge
safety devices			Leakage, short circuit, motor overheating, heater overheating, humidification, water shortage, compressor overpressure, overload, multiple overtemperature protection
Environmental requirements			Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around; Water supply temperature: ≤ 30 °C, water pressure: 0.1 ~ 0.3MPa, water quality meets industrial water standards;
Note: 1. temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test; 2.according to the specific requirements of users customized non-standard high and low temperature impact test box; 3.This technical information is subject to change without notice.

Product detail:

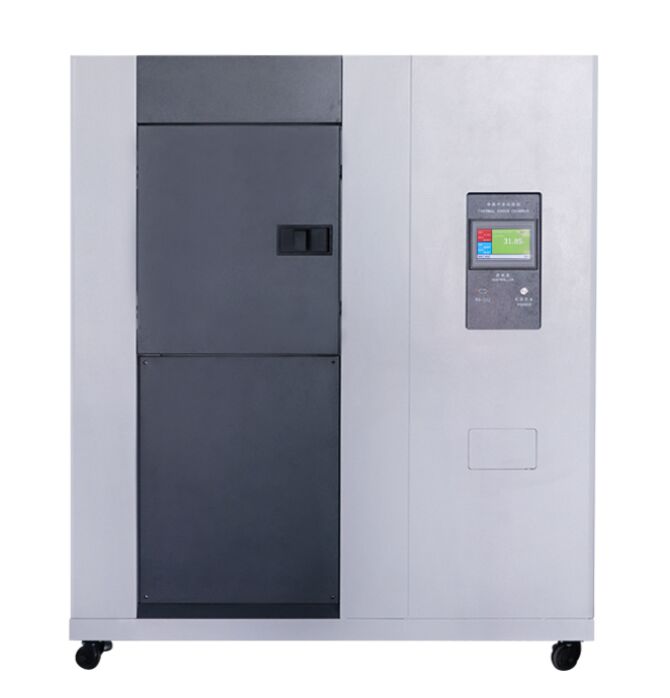

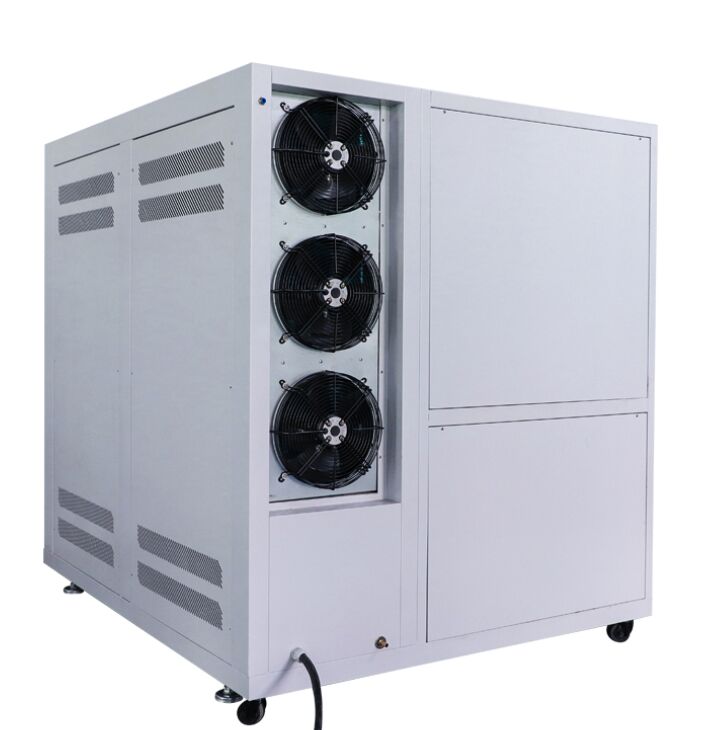

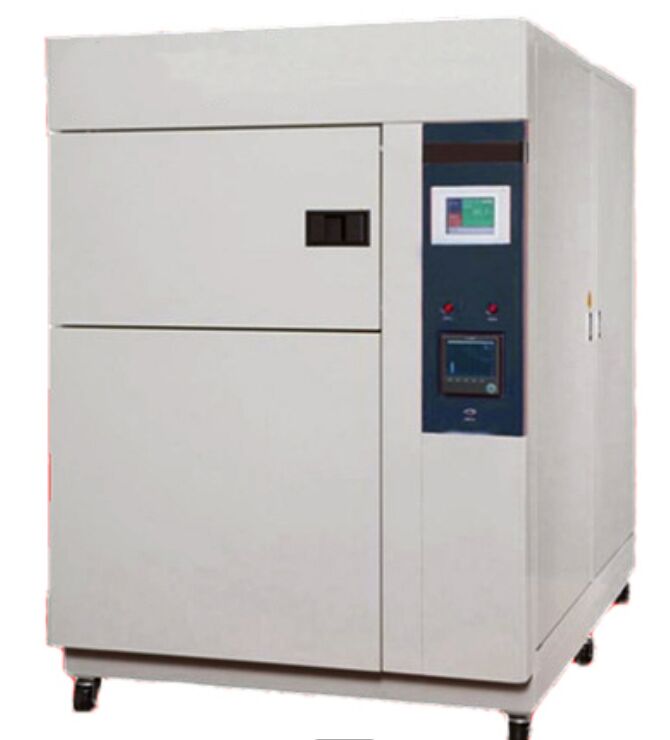

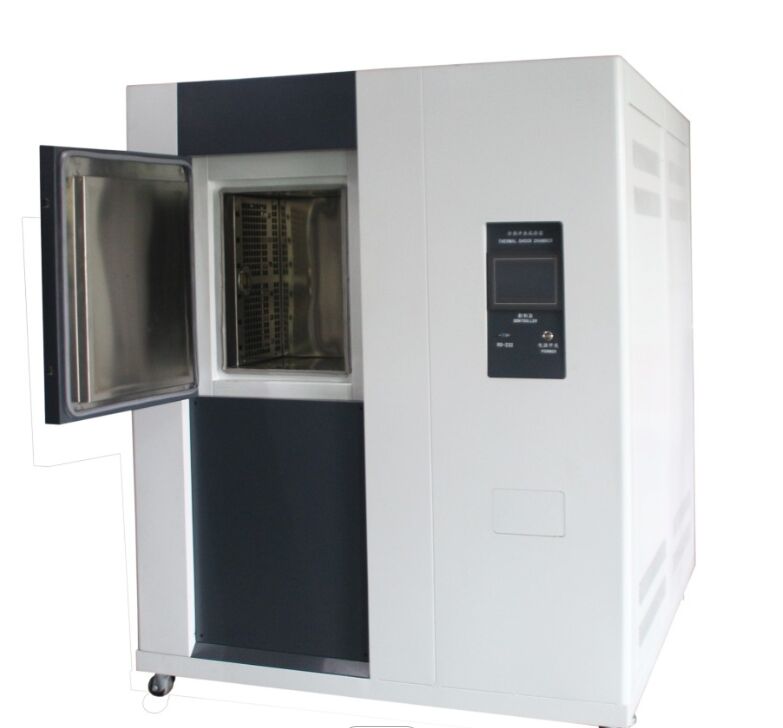

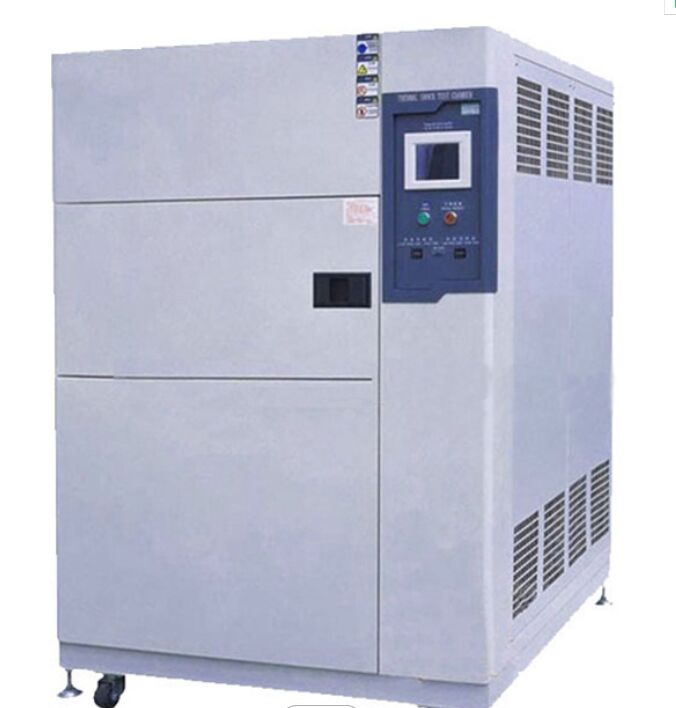

Configurable Two-Box Thermal Shock Test Chamber With-60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics 0

Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades

Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service

Configurable Two-Box Thermal Shock Test Chamber With-60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics 1
