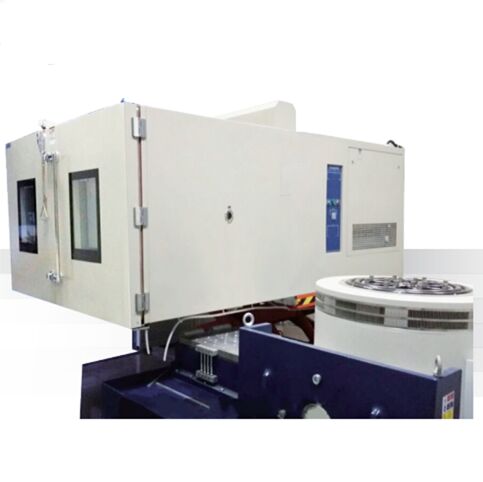

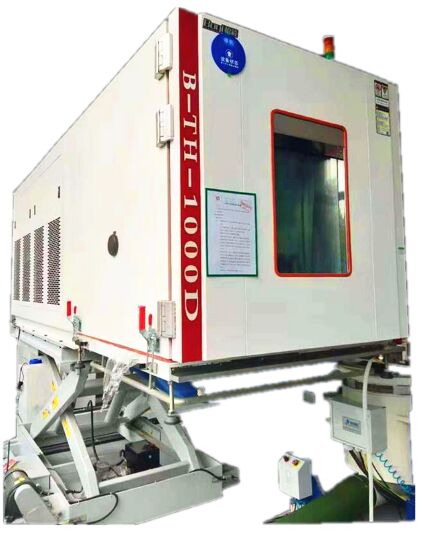

Temperature Humidity Vibration Composite Test Chamber – SUS#304 Interior, , Multi-Safety Protection for Aerospace, Automotive, Electronics

Temperature Humidity Vibration Composite Test Chamber:

Description:The Temperature Humidity Vibration Composite Test Chamber is a three-integrated environmental testing system that combines temperature, humidity, and vibration capabilities for comprehensive product reliability testing. It integrates a constant temperature and humidity chamber with an electromagnetic vibration test system, supporting sine, random, and shock vibration control (with imported vibration controller, sensor, and amplifier). The chamber features a temperature range of -70°C to 150°C, humidity control from 20% to 98% RH, and adjustable ramp rates from 1°C to 15°C/min. Constructed with a durable exterior and equipped with a TFT touchscreen controller, multi-layer tempered glass observation window, and comprehensive safety protections, it is widely used in aerospace, automotive, electronics, military, and component testing industries for product design validation, quality assurance, and inspection.

Detailed parameter performance: (refers to air-cooled type at room temperature 20℃, when no load)

1.1 Model: BT-50ZA

1.2: Inner box size: W350*H400*D300mm

Carton size: W580*H1350*D870mm

1.3 Temperature range: -20℃ ~ 150℃

1.4 Temperature fluctuation: ±0.5℃

1.5 Temperature deviation: ≤±2℃

1.6 Heating time: about 40 minutes from room temperature to 150°C (no-load nonlinearity)

1.7 Cooling time: about 60 minutes from room temperature to -20°C (no-load nonlinearity)

1.8 Humidity range: 20%~98%R.H.

1.9 Humidity fluctuation: ±3%R.H.

1.10 Humidity deviation: ≤3%

Product detail:

Feature:
