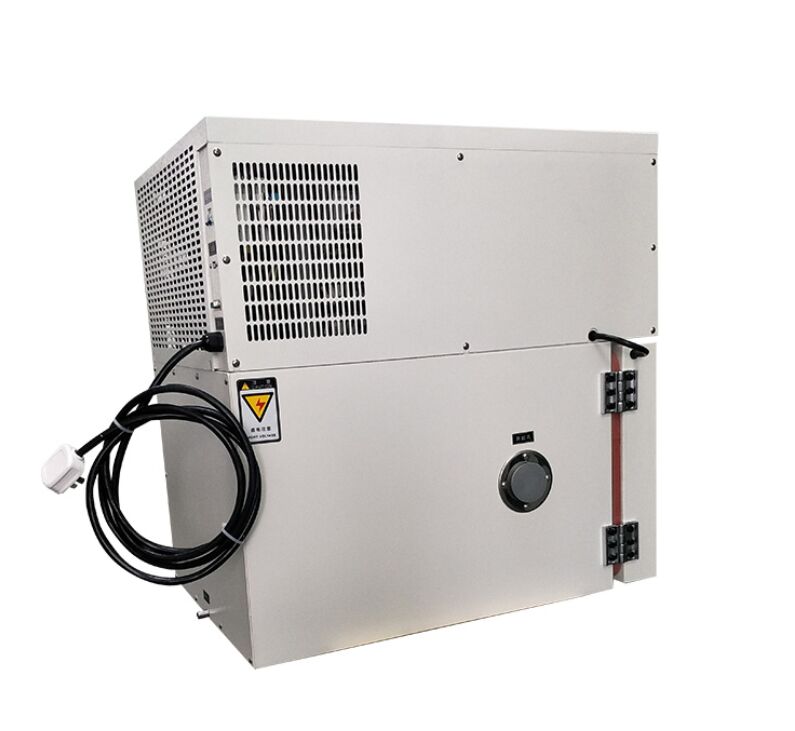

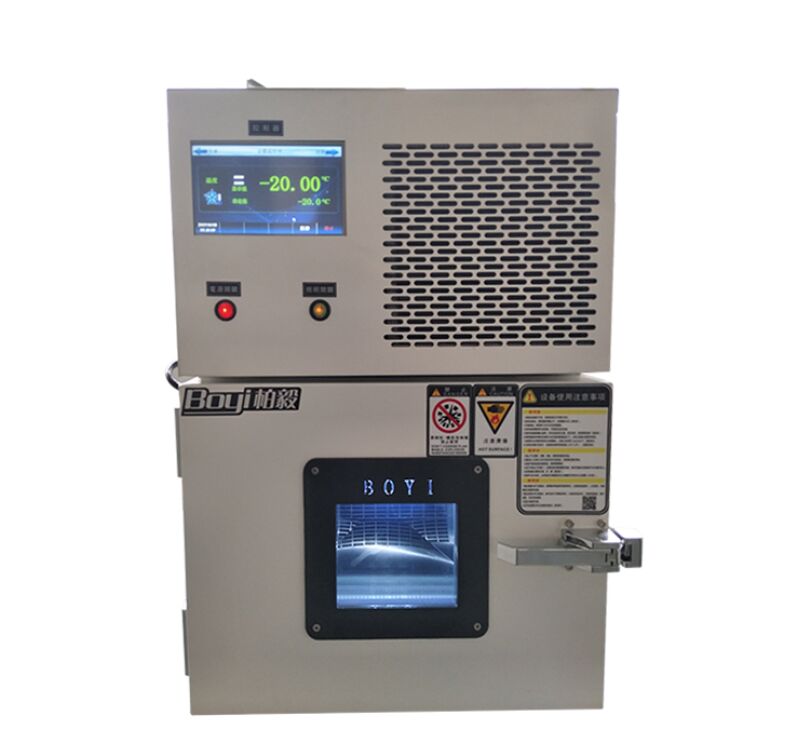

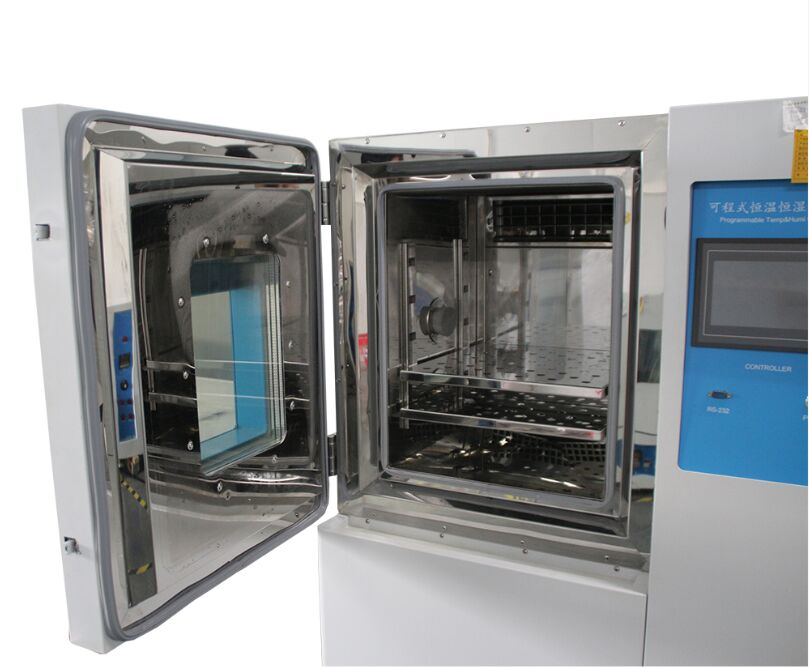

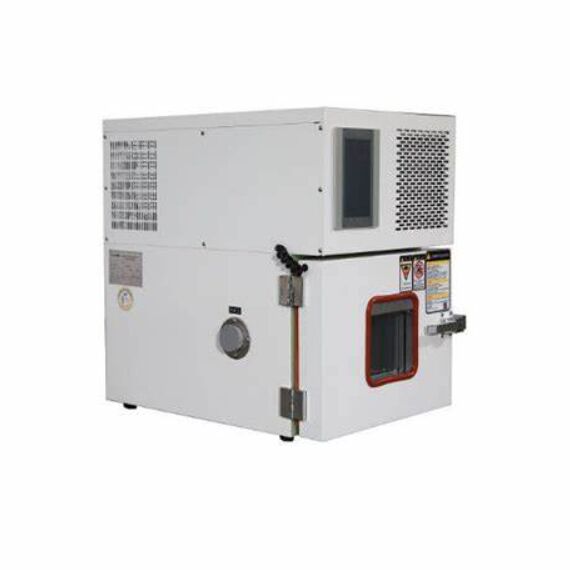

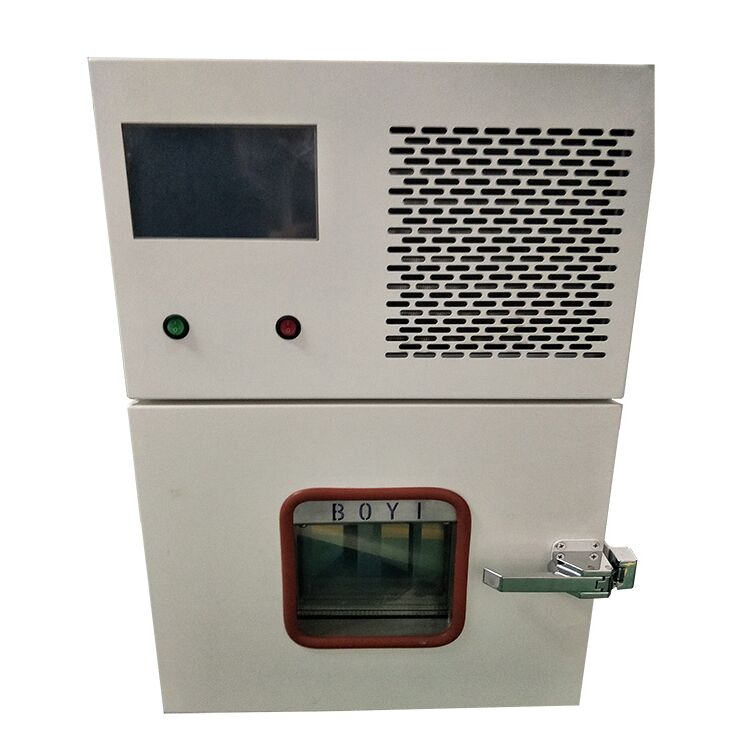

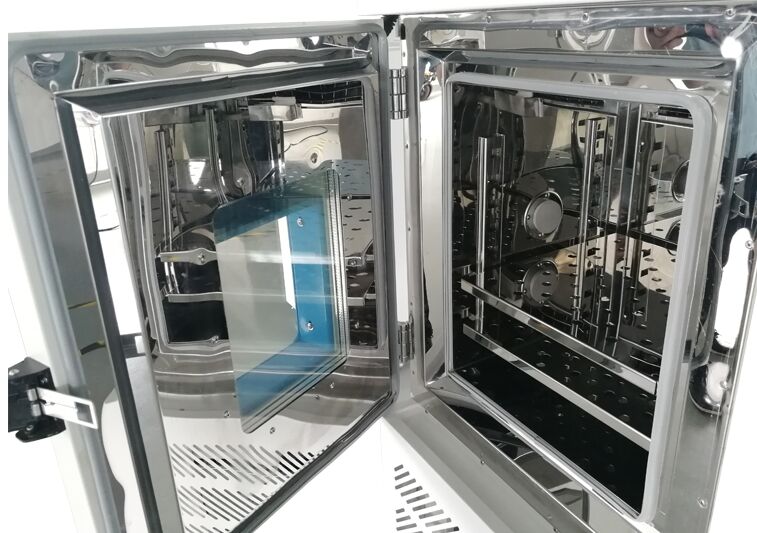

Small High And Low Temperature Humidity Test Chamber
Product description:
Compact and small-sized design with a special structure and overlapping layout, occupying minimal planar space, making it particularly suitable for laboratory environments where space is limited.Low power consumption enables energy saving and reduced energy usage; additionally, it features low noise and low radiation, aligning with green and environmentally friendly principles.
High efficiency: the communication mode employs a Qualcomm software F4 controller, capable of performing multiple types of tests simultaneously, thereby improving overall testing efficiency.
Both sides of the equipment are equipped with side test holes for easy operation, facilitating flexible arrangement and adjustments during experimental procedures.
Multiple safety protection mechanisms are included, such as refrigerant high-voltage protection, compressor overload protection, current overload protection, overtemperature protection, and leakage protection, comprehensively ensuring the safety of both the equipment and personnel.
Design Standard: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Character:
1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Product details:
| Model |
B-T-48L(A-D) |
B-T-107(A-D) |
| Inner box volume |
48L |
|
| Inner box size |
40x40x30cm |
30.5X23X29cm |
| external dimension size |
60x80x107cm |
53X68X72cm |
| Temperature range |
-60~+150°C(100°C)
(A:0°C B:-20°C C:-40°C D:-60°C)
|
-40(-60°C)~+130°C(100°C)
(A:0°C B:-20°C C:-40°C D:-60°C)
|
| Humidity range |
20$-98%RH |
| Temperature rise rate |
3°C/min |
| Cooling rate |
0.7-1°C/min |
| Temperature deviation |
±1°C |
| Temperature fluctuation |
±0.5°C |
| Temperature uniformity |
±1°C |
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
