MIL STD Temperature Shock Environmental Test Chamber 60Hz

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL ISO
Model Number: BTCT 401
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 set/month
Main Material: SS304 Recovery Time: Within 3 Mins
High Temp Range: 80℃--200℃ Low Temp Range: -10℃~-200℃
Packing: Wooden Case Power Supply: AC220V 50/60Hz
High Light:

STD Environmental Test Chamber

,

Environmental Test Chamber 60Hz

,

Medical Components Environmental Test Chamber

MIL STD ISO Stainless Steel 304 Recovery Within 3 min Two Box-type Temperature Shock Environmental Test Chamber



The chambers are widely used for testing various types of materials, components and equipments

for their tolerance of heat, cold, dry and humidity. It is applicable for quality inspection of all

types of electronic products, electrical appliances and products from communication, automobiles,

plastics, metal, food, chemical, building materials, medical components and equipments and

aerospace spares and components.



Specification



Model B-TCT-401 B-TCT-402 B-TCT-403 B-TCT-501 B-TCT-502 B-TCT-503 B-TCT-601 B-TCT-602 B-TCT-603
Inner Dim(CM) 30x30x30 40x40x40 50x50x50 30x30x30 40x40x40 50x50x50 30x30x30 40x40x40 50x50x50
External Dim(CM) 118x185x180 128x195x190 138x205x200 118x185x180 128x195x190 138x205x200 118x185x180 128x195x190 138x205x200
Sample Weight(Kg) 5 10 20 5 10 20 5 10 20
Low Temp Range -10℃~-60℃ -10℃~-70℃ -10℃~-80℃
Test Temp Range -40℃~-150℃ -55℃~150℃ -65℃~150℃
High Temp Range 80℃~200℃(Various specifications applicable
Recovery Time Within 3 Minutes
Interior SUS 304 Stainless Steel Plate
Exterior Coating or SUS 304 Stainless Steel Plate
Power Source AC:220v/380v 50/60Hz



Product details

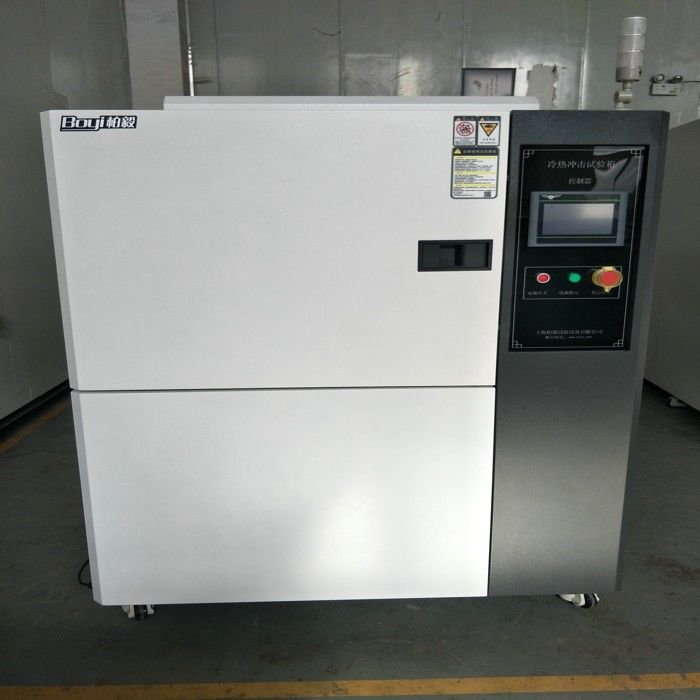

MIL STD Temperature Shock Environmental Test Chamber 60Hz 0

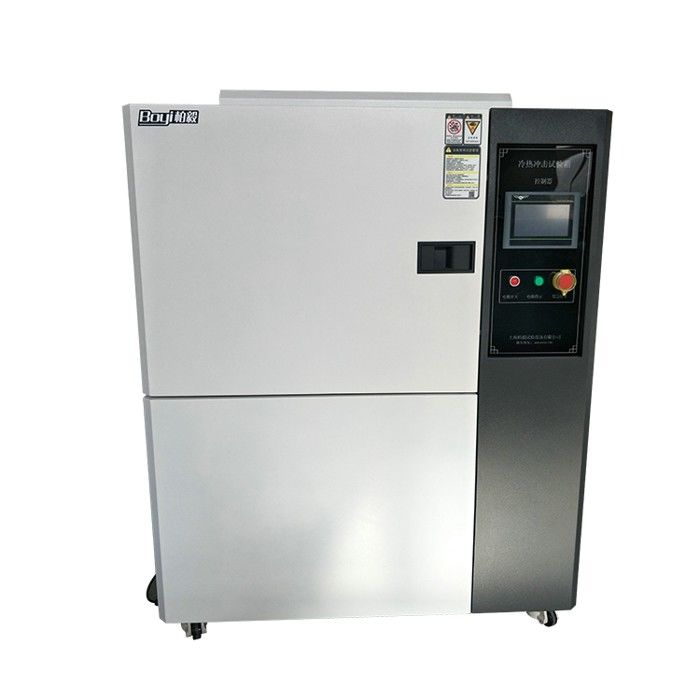

MIL STD Temperature Shock Environmental Test Chamber 60Hz 1



Features

1.Working with TECUMSEH compressor and other advanced component  to ensure the stability

of the colling system.

2.The controller can be connected to the computer through LAN interface. Users can design programs

on the computer screen,collect test data and records, call program execution, remote control machine

switch and other functions.

3.The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor

temperature and humidity distribution is uniform.



4.Complete safety protection device, if abnormal conditions occur, the controller screen will automatically

display the fault status, cut off the power switch, and provide troubleshooting methods.





Component & Spare Parts Used for the Chamber



MIL STD Temperature Shock Environmental Test Chamber 60Hz 2MIL STD Temperature Shock Environmental Test Chamber 60Hz 3



            TECUMSEH   compressor                                             DANFOSS  Filter







MIL STD Temperature Shock Environmental Test Chamber 60Hz 4MIL STD Temperature Shock Environmental Test Chamber 60Hz 5



              DANFOSS  expansion valve                                          AIRMENDER Gas Liquid Separators









Packing & Delivery





1.Standard exported package: Internal anticollision protection, external export wooden box packaging.



2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.



3. Responsible for the damage during the shipping process, will change the damage part for you for free.



4.15-20days after confirming order,detail delivery date should be decided according to production season

and order quantity.

MIL STD Temperature Shock Environmental Test Chamber 60Hz 6MIL STD Temperature Shock Environmental Test Chamber 60Hz 7



Production Process

MIL STD Temperature Shock Environmental Test Chamber 60Hz 8

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.





Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



MIL STD Temperature Shock Environmental Test Chamber 60Hz 9



Main equipment

MIL STD Temperature Shock Environmental Test Chamber 60Hz 10



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market

MIL STD Temperature Shock Environmental Test Chamber 60Hz 11



MIL STD Temperature Shock Environmental Test Chamber 60Hz 12

The certificate is valid until June 17, 2024

MIL STD Temperature Shock Environmental Test Chamber 60Hz 13



BOTO ADVANTAGE



MIL STD Temperature Shock Environmental Test Chamber 60Hz 14



Customers photos



MIL STD Temperature Shock Environmental Test Chamber 60Hz 15

MIL STD Temperature Shock Environmental Test Chamber 60Hz 16



OUR TEAM



MIL STD Temperature Shock Environmental Test Chamber 60Hz 17



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
