| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO |
| Model Number: | SPX-400 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiation |
| Packaging Details: | PLY-Wooden case |
| Delivery Time: | 10-15Work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000set/YEAR |
| Model: | SPX-400 | Temp Range: | 5℃~50℃ |
|---|---|---|---|
| Temp Uniformity: | ±2℃ | Temp Fluctuation: | ±1℃ |
| Temperature Display Accuracy: | 0.1℃ | Inline Dimension WxDxH(cm): | 58x54x127 |
| External Dimensions WxDxH(cm): | 72x74.7x179.5 | Power Source: | 1∅220V 50Hz |
| High Light: | 400L Laboratory Biochemical Incubator,Intelligent Biochemical Incubator,Epidemic Prevention Biochemical Incubator |
||

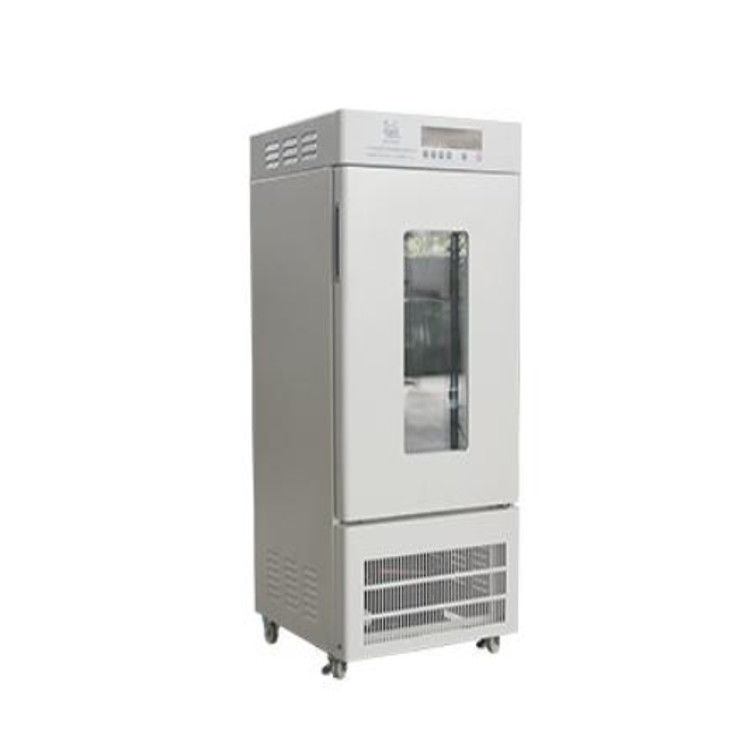

Intelligent Laboratory Biochemical Incubator controller 80L - 400L
Product description
The product is used for environmental protection, sanitation epidemic prevention, drug inspection, crop-livestock and aquatic products etc. which is applied in scientific research institutions, college and manufacture department. It is a specialized constant-temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mould and microorganism, plant cultivation and seed-breeding test.
Use
Biochemical incubator for the cultivation and preservation of bacteria, mold and other microorganisms in medical institutions.
Structural features
1. Material of the outer box: plastic sprayed on the surface of cold-rolled steel plate; Internal material: SUS304 stainless steel plate.
2. The inner box is equipped with a fan to form a micro air circulation to improve the temperature uniformity in the box.
LED digital tube display PID temperature controller, accurate temperature control; Continuous running or timed running: 0-999min;
With parameter memory function, call automatically resume operation.
4. The inner box adopts circular arc structure design, easy to clean.
5. Can pull the movable shelf, the spacing is adjustable.
6. The inner box is equipped with lighting device for easy observation.
7. The box is equipped with a power socket, which can provide power for BOD testing equipment, oscillator and other small instruments set up in the incubator.
8. Caster wheels are installed for easy movement.
9. CUBIGEL refrigeration compressor, high efficiency, low consumption; Oxygen-free environment-friendly refrigerant.
10. Independent external temperature protection device.
11. Comply with the EMC requirements of GB/T18268.1-2010 for measuring, controlling and laboratory electrical equipment.
Model specifications
| Model | SPX-80 | SPX-150 | SPX-200 | SPX-250 | SPX-300 | SPX-400 |
| Temp Range | 5℃~50℃ | |||||
| Temp uniformity | ±2℃ | |||||
| Temp fluctuation | ±1℃ | |||||
| Circulating mode inside the box | Breeze stirring mode | |||||
| Temperature display accuracy | 0.1℃ | |||||
| Temperature control accuracy | ±0.1℃ | |||||
| Alarm type | Overtemperature alarm Temperature probe damage alarm |
|||||
| Inline Dimension WxDxH(cm) | 40x37x55 | 45x42x85 | 45x45x100 | 48x49x107 | 52x50x117 | 58x54x127 |
| Internal capacity(L) | 81 | 160 | 202 | 251 | 304 | 397 |
| External dimensions WxDxH(cm) | 54x58x107.5 | 59x63.4x137.5 | 59x65.9x152.5 | 62x69x159.5 | 66x70.2x169.5 | 72x74.7x179.5 |
| Shelf | 2 | 3 | 3 | 3 | 3 | 3 |
| Power(W) | 260 | 360 | 440 | 510 | 580 | 900 |
| Power source | 1∅220V 50Hz | |||||
| Remark | ※External depth (D) with 3.5cm accessories, height (H) with 6.5cm accessories ※Performance parameters were tested under no-load conditions, ambient temperature 20℃, ambient humidity 50%RH ※Can not be used for long period of refrigeration |
|||||
Detail pics
PACKAGE&DELIVERY
1. Standard exported package: Internal anticollision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4. 15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
OUR CERTIFICATES
COMPANY PROFILES
FACTORY TOUR
OUR TEAM
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
SERVICE
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service: 1.Device installation; 2.Equipment Operation Technology training; 3.Equipment Calibration; 4.Daily maintenance maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Mail Seamless Docking;
3.Video Conferencing;
4.Artificial free door-to-door service
CONTACT
Sale Engineer: Ran Wang
Email: sales22@botomachine.com
