Climatic PCT Hast Aging Test Chamber For Ic Semiconductors

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-HAST series
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Power: Electronic Usage: Universal Testing Machine
Temperature Range: -80℃~+200℃ Humidity Range: 20%~98%
Product Name: Temperature Humidity Incubator Warranty: 12 Months
High Light:

Climatic PCT Hast Aging Test Chamber

,

Ic Semiconductors Aging Test Chamber

,

R232C Aging Test Chamber

Climatic PCT hast aging test chamber for Ic semiconductors





Appliance:

BT-HAST high-pressure steam testing machine test is to improve the environmental stress (such as: temperature) and work stress (applied to the product voltage, load, etc.), speed up the test process, shorten the product or system life test time for investigation and analysis when The problem of wear and life of electronic components and mechanical parts, the shape of the fault distribution function of the service life, and the analysis of the causes of the increase in the failure rate



1. BT-HAST high-pressure steam testing machine liner with circular design,Can prevent the test condensation dripping phenomenon, so as to avoid the product during the test by the direct impact of superheated steam impact test results



2. BT-HAST high-pressure steam testing machine is equipped with double-layer stainless steel products frame, can also be customized according to customer product specifications free customized rack.



3. BT-HAST high-pressure steam testing machine standard equipped with eight test sample signal application terminals, can also increase the number of terminals as needed, up to provide 55 bias terminals.



4. BT-HAST high-pressure steam testing machine with a special sample rack eliminates complicated wiring operations





Model BT-BND-GL-250 BT-BND-GL-350 BT-BND-GL-250D BT-BND-GL-350D BT-BND-GL-250M BT-BND-GL-350M
Inner size 25*D35 30*D45 40*D55 50*D60 25*D35 30*D45
Outer size 56*65*105(W*H*D)cm 66*105*125(W*H*D)cm 76*115*135(W*H*D)cm 86*135*145(W*H*D)cm 56*65*105(W*H*D)cm 66*105*125(W*H*D)cm
Temp range 105℃~132℃ 105℃~142.9℃ 105℃~155℃
Pressure range +0.2~2.0kg/cm2 +0.2~3.0kg/cm2 +0.2~3.5kg/cm2
Humidity range 65%~100%RH (adjustable)
Controller BND-6890 USB port R-232C port
Resolution Temp:0.1℃ humid:0.1%RH pressure:0.1 kg/cm2

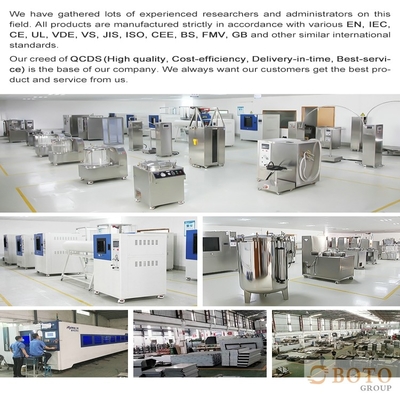

COMPANY INTRODUCTION



Climatic PCT Hast Aging Test Chamber For Ic Semiconductors 0Climatic PCT Hast Aging Test Chamber For Ic Semiconductors 1Climatic PCT Hast Aging Test Chamber For Ic Semiconductors 2Climatic PCT Hast Aging Test Chamber For Ic Semiconductors 3
