Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month
Interior Dimensions W*H*D(MM):: 500*D760 Water Supply Amount(at Start):: Approx. 1 L
Temp Range:: +100℃~+162.2℃ Humid Range:: 65-100%RH
Pressure Range:: 0.020 To 0.392 MPa(Gauge) Internal Volume:: 150L
Customized Support:: OEM, ODM Warranty:: 2 Years
High Light:

PCT Unsaturated Accelerated Test Chamber

,

OEM Accelerated Stability Chamber

Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber



Product Description

HAST Chamber Unsaturated "HAST" & Saturated "PCT" Chambers HAST-Highly Accelerated Stress Test Chambers HAST (Highly Accelerated Stress Test) chambers reduce the time it takes to complete humidity testing for semiconductors. By elevating temperatures above 100°C and increasing the pressure, simulation of normal humidity tests can be made while maintaining the same failure mechanisms. Tests can be completed in days, or weeks. Our HAST systems have a modern design that's easier to use: 1,Automatic humidity filling 2,Automatic door lock 3,A round workspace,allowing wider sample boards to be loaded 4,Convenient,hermetic power-pin system for bias testing We now offer and "Air HAST" modification for faster testing of lead-free solder whisker resistance to humidity.



Features Operation Features 1,Unsaturated or sturated humidity control 2,Multi-mode M system(wet bulb/dry bulb) controls humidity,even during heat-up and cool-down.Fully conforms to EIA/JEDEC Test Method A100 & 102C 3,Touch-screen controller with temperature,humidity,and count-down display.Includes Ethernet Interface. 4,12 specimen power terminals,allows power-up of specimens(12 per workspace on "double" units) 5,Automatic fill of the humidity water at the start of a test.

Cabinet Features: 1,Inner cylinder and door shield protect specimens from dew condensation 2,Interior is cylindrical for maximum product loading 3,Two stainless steel shelves 4,Set casters for easy movement of the chamber(Except double units) 5,Push button door lock 6,Bottom of the unit allows storage space for peripheral equipment.

Safety Features: 1,Overheat & Over-pressure protectors 2,Door lck safety mechanism to prevent opening of the door while the chamber is pressurized 3,Specimen power control termainal:shuts down the product power in the event of an alarm.

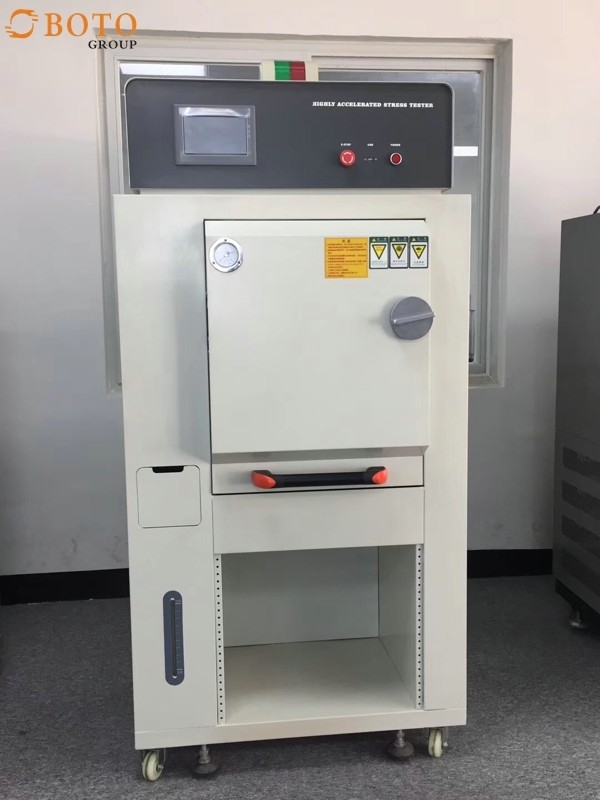

Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber 0
Designed for humidity resistance testing,life testing and accelerated testing
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

1.Air-circulating fan for high-accuracy testing The air-circulating fan minimizes variations in temperature and humidity in the test area for greater accuracy during testing. The fan enables uniform stress to be applied to a specimen. 2.Maximized workspace The cylindrical pressure vessel distributes pressure evenly and offers soperior strength. Interior is expanded for easier loading of a large specimen such as printed circuit board. 3.Prevention of dew condensation and wetting of specimens Compared with natural convection test systems,the double cylindrical structure and proprietary air-conditioning system prevents dew condensation and water droplets falling on the specimen.Temperature control and operation of the test area fan before and after testing also prevents dew condensations and droplets from forming on samples,ensuring highly readable testing results.(Featuring dry and wet-bulb temperature control and unsaturated control) 4.Color coding for easy connection Specimen signal terminals with 12 powerpins per unit is equipped as standard.Additional 12 pins per set are available as optional and can be expanded up to total 72 pins.Complicated connection ork is also made casier thanks to color-coded terminal(black=negative,red=positive). 5.Specimen protection from risk of damage A specimen poer supply control terminal is equipped as one of safety features,which output contact signals to allow voltage and signals to be applied to the specimen during testing.In the case of activation of safety devices such as overheat protection and boil-dry protection,any externally powered devices can be also turned off with this terminal to avoid the risk of damage to the specimen or the chamber.
7-inch color LCD touch panel
1.Color LCD touch panel The Resistive Touch Panel procides versatility by allowing users to use gloves,wet hands,nails and stylus to interact ith the panel.
2.Multilingual support You can select the display language from English/Chinese(Simplified/Traditional)/Korean and the changes take effect immediately without a system reboot.
3.Temperature,humidity and pressure graph display function The Trend-Graph Display Function allows users to monitor the temperature,humidity,and pressure* conditions in the test area,in a graph. *Pressure monitoring function or recorder option is required.
4.Pressure monitoring function(option) The pressure can be displayed on the screen or can be read via the Ethernet,RS-485(option)or RS-232C (option).Monitored value on the screen can be sitched between humidity and pressure.
5.Auto-locking mechanism Door lock safety mechanism to prevent opening of the door while the chamber is pressurized.
6.Automatic humidity filling The humidfying ater is filled from the built-in water supply tank at the start of a test automatically. The water level in a tank can be checked from outside through the slits on the front cover. Bottom or the unit allows storage space for power supply unit and peripheral equipment.
7.No pressure or temperature shock after testing prevents specimens from drying put Gradual depressurization and air/water drainage mechanisms eliminate sudden changes in pressure and temperature after testing is completed,thus ensuring moisture contained in the specimen does not evaporate.This procides more accurate test results in correlation to the field.
Specification
item
value
Warranty
2 years
Certification
ISO, CE
Customized support
OEM, ODM
Place of Origin
China
Brand Name
BOTO
Model Number
HAST-350*450, HAST-450*450, HAST-450*650, HAST-500*760
Power
Electronic
Product name
HAST-Highly Accelerated Stress Test Chambers
Temp Range
+100℃~+162.2℃
Humid Range
65-100%RH
Pressure Range
0.020 to 0.392 MPa(Gauge)
Volume and Inner Size
We have four standard sizes(customizable)
Temperature fluctuation
±0.3℃
Power supply
AC 3 Phase 220V/380V 60/50Hz
Color
Blue and grey
Packing & Delivery

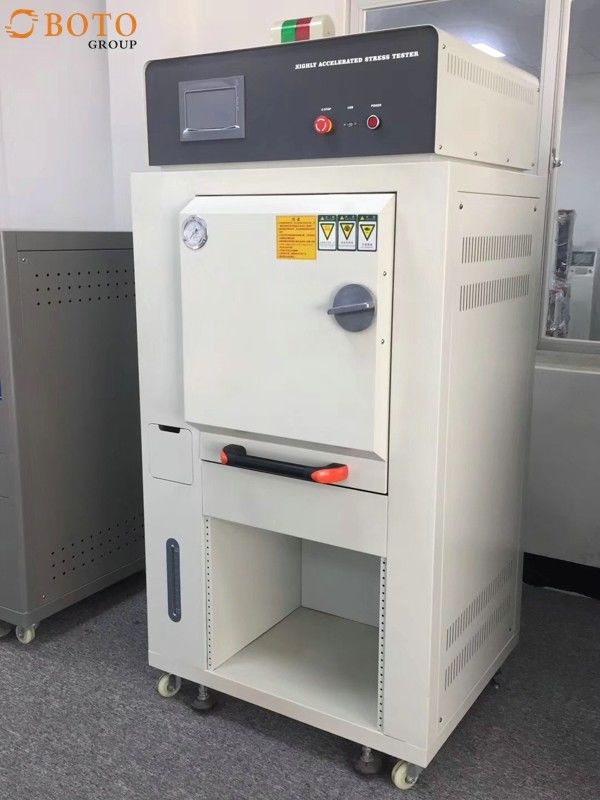

Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber 1

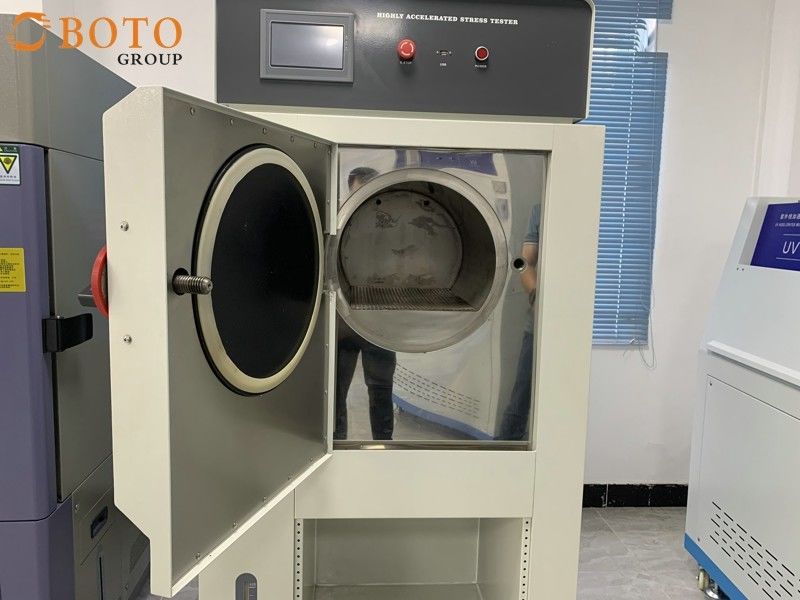

Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber 2


Company introduction



BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments.



Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber 3



The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Fully Automatic Operation PCT Unsaturated High Voltage Accelerated Test Chamber 4



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
