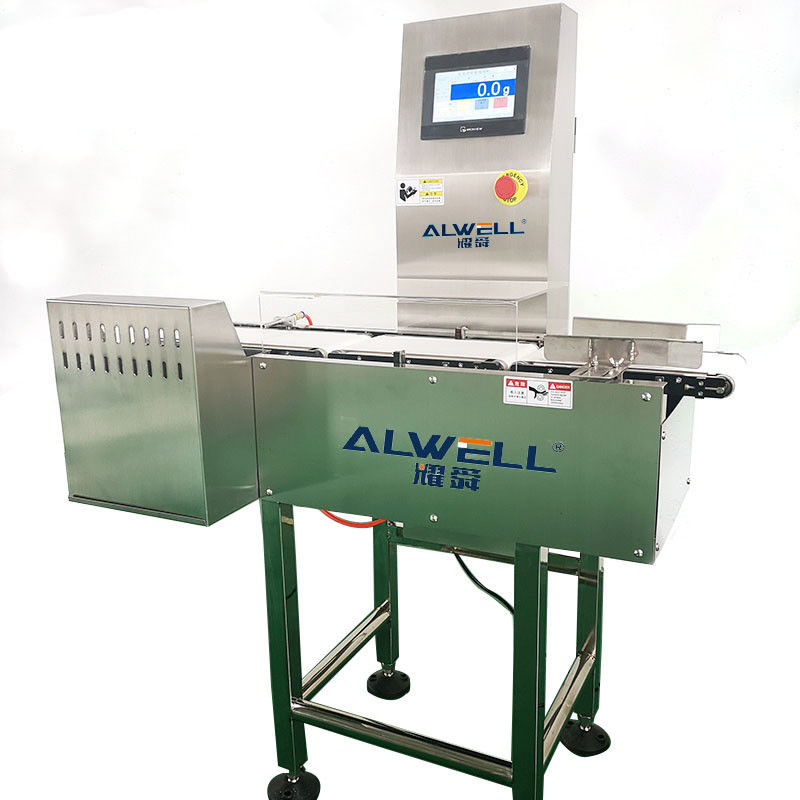

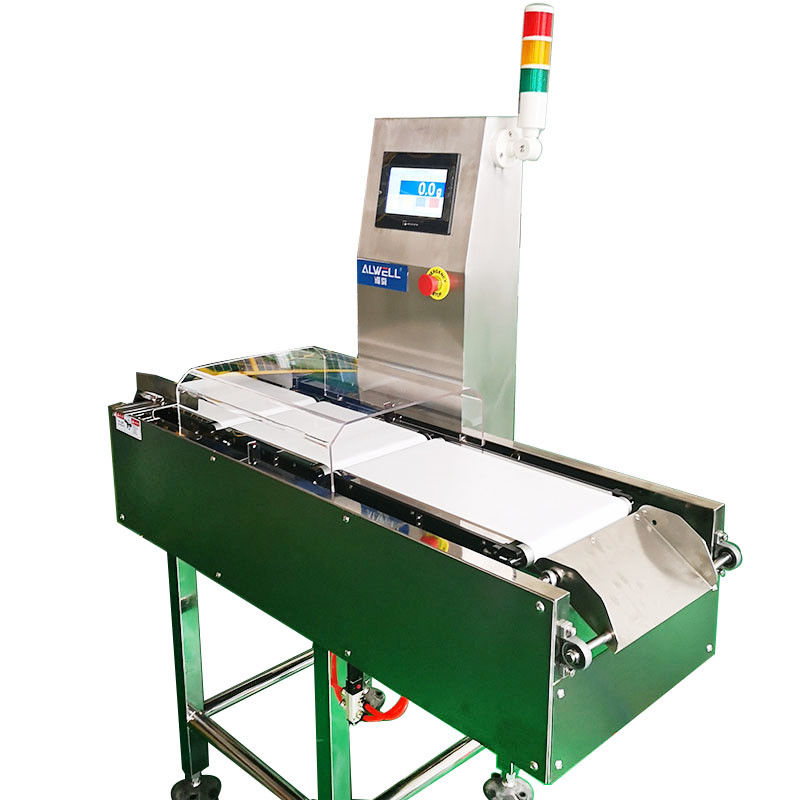

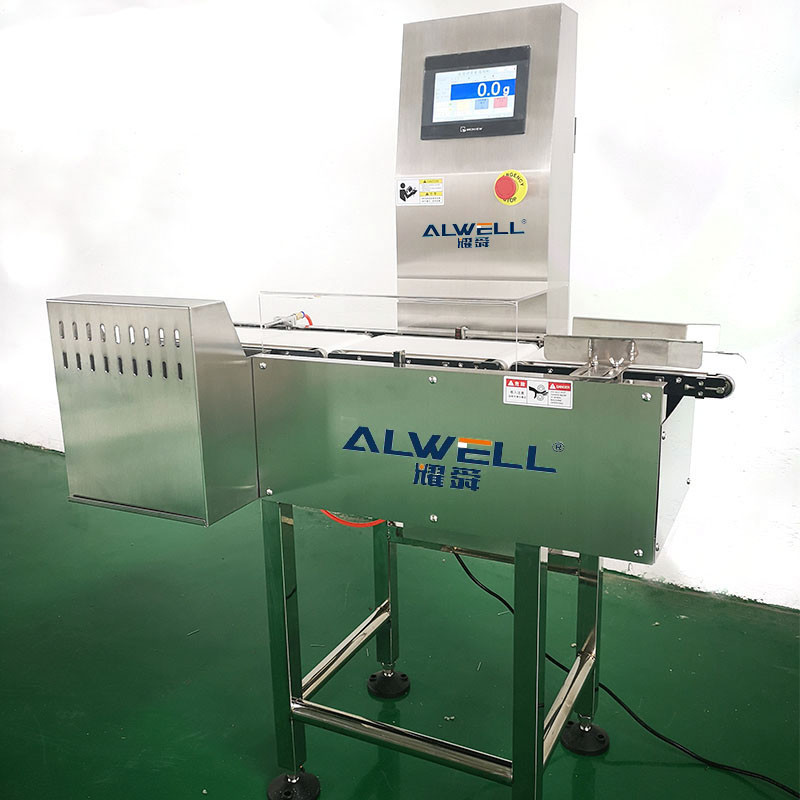

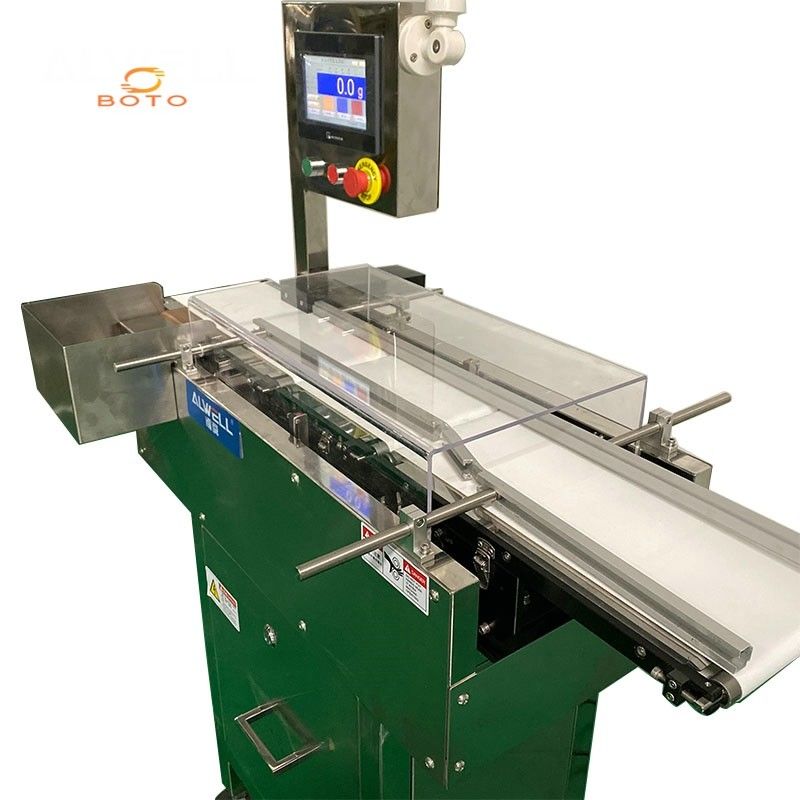

Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display

Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display
Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display
Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT1501
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: Western Union, T/T, D/P, MoneyGram
Supply Ability: 100000Set/month
Contact Now
Max Detecting Speed:: 155pcs/min Product Name:: Checkweigher With Metal Detector
Belt Speed:: 0-65m/min Seale Mark:: 0.1g
Certificate:: CE ROHS Belt Width:: 150mm Check Weigher Metal Detector
Display:: LCD Display Check Weigher Metal Detector Power:: 100-240V/50HZ
Usage:: Pharmaceutical, Food, Toys, Hardware, Chemical And Other Industries. Function:: Strong Self Diagnosis Function
Highlight:

0.1g Checkweigher Machine

,

150mm Checkweigher Machine

,

150mm checkweigher metal detector

Food Inspection Combine Metal Detector Check Weigher Metal Detector For Food Checkweigher Machine



Application:

Detection of food processing, food additives, condiment, clothing, toys, rubber industry products in metal
impurities,ensureproduct without metal pollution, provide reliable quality guarantee.Detection of plastic, textile, wood, mining industries in the material metal impurity, protect the online equipment, reduce downtime, maintenance time and cost, improve work efficiency.

Features:

1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to
their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8.Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
Size Information
Model
YSDP220-80
YSDP300-100
YSDP400-100
YSDP450-150
Detector Dimension (Width*HeightMM)
220*80
300*100
400*100
450*150
Belt width(MM)
220
300
400
450
Sensitivity
FE
1.0
1.2
1.5
2.0
NON-FE
1.2
1.5
2.0
2.0
SUS304
1.5
2.0
2.5
3.0
Maximum range
3KG
5KG
20KG
30KG
Belt Height(mm)
750±30mm
Speed
25m/min
Operation interface
Plane key input (touch optional)
Item memory
100 Products
Stable way
Automatic phase adjustment
Alarm mode
Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(other types need to customization)
External interface
RS232/485/422,USB,to store data,Voltage signal or Switch signal,TCP/IP
Corollary equipment
Ink-jet printer,Check Weigher,Online printer,Labeling machine, etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Measurement
SUS304
Degree of protection
IP54/IP65
Environment
0℃-50℃
Remark
1.Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence.
2.Above machine specifications for the standard specifications, size and other special
requirements, all can be customized.





Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display 0



Food Inspection Checkweigher Machine Metal Detector 150mm 0.1g LCD Display 1



Check weigher metal detector Main Features

1) man-machine interaction of touch screen.

2)English-Chinese operation interface.

3) function of weight compensation.

4) Analyzing qualified rate of products with bar chart and graph.

5) secondary operation rights management, supporting self-set password.

6)Preset storage of 100 production formulas.

7)Several elimination methods of faulty products, supporting faulty stop function.
