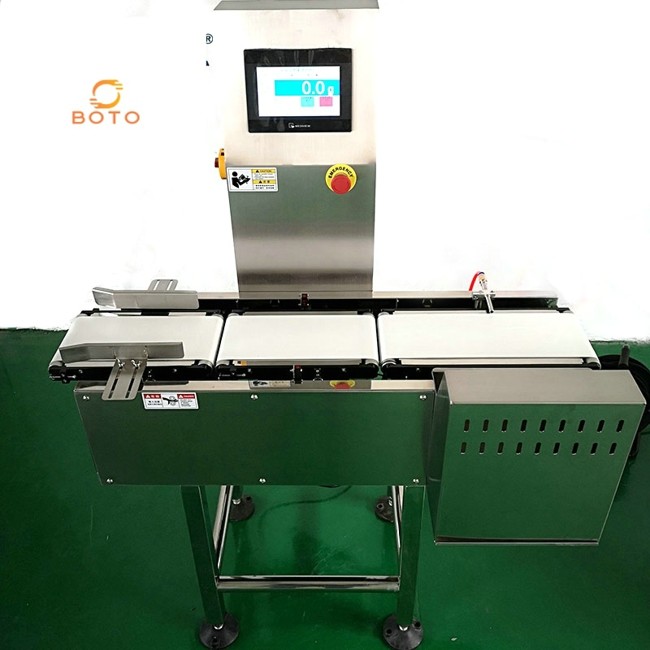

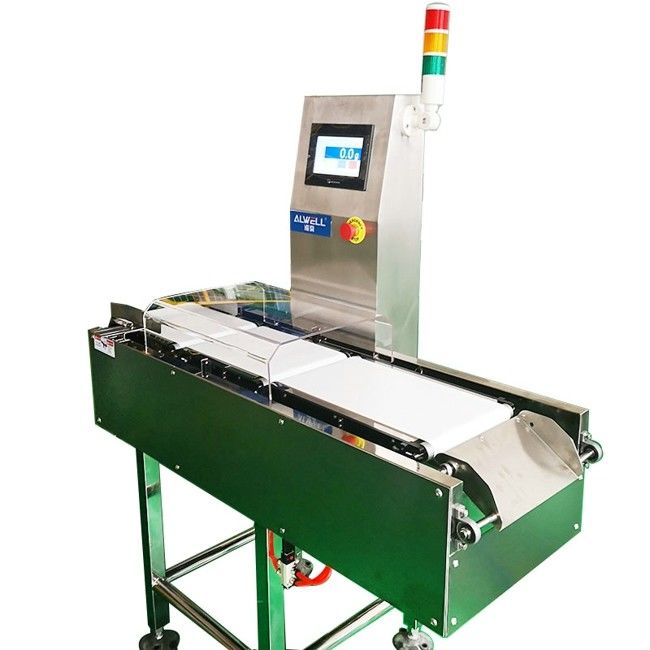

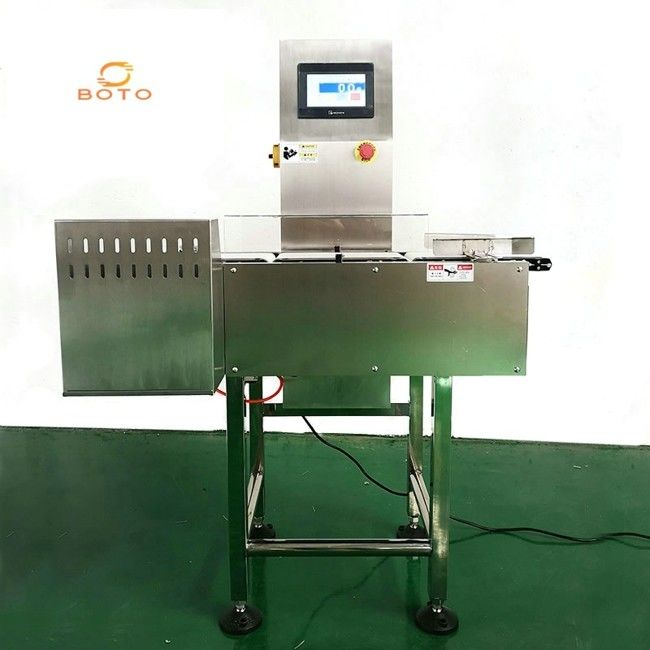

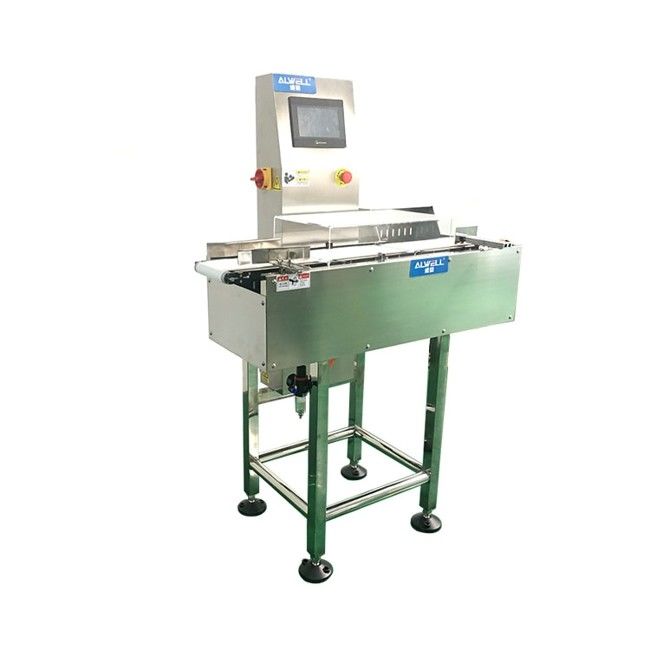

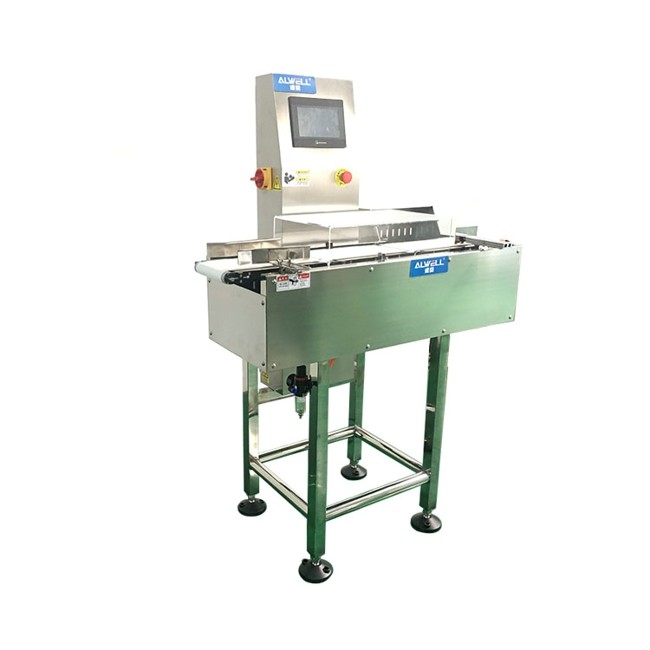

Pharmaceutical Metal Food Checkweigher Machine Stainless Steel 304

Pharmaceutical Metal Food Checkweigher Machine Stainless Steel 304

ROHS Checkweigher Machine

Pharmaceutical Checkweigher Machine

Pharmaceutical metal food checkweigher

Place of Origin:

CHINA

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT1501

Contact Us
Request A Quote
Product Details
Weighing Range::
5kg-25kg
Raw Material::
Stainless Steel 304
Belt Speed::
0-65m/min
Seale Mark::
0.1g
Certificate::
CE ROHS
Belt Width::
150mm Check Weigher Metal Detector
Display::
LCD Display Check Weigher Metal Detector
Power::
100-240V/50HZ
Usage::
Pharmaceutical, Food, Toys, Hardware, Chemical And Other Industries.
Function::
Strong Self Diagnosis Function
Highlight:

ROHS Checkweigher Machine

,

Pharmaceutical Checkweigher Machine

,

Pharmaceutical metal food checkweigher

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiation
Packaging Details
PLY-WOODEN CASE
Payment Terms
Western Union, T/T, D/P, MoneyGram
Supply Ability
100000Set/month
Product Description

Combination Metal Detector Check Weigher Metal Detector For Food Checkweigher Machine



Applied industries:
Food and beverage, hygiene products, personal-care products, snacks, candies,coffee, dough, functional food, pharmacy, etc

Product function:
Detecting metal contaminants and checking packed product weight and rejecting the NG(under or over weight) products after weighed.

Features:
1. Compact design ,space saving and low cost installation
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. High sensitivity and precision for metal detection and weight checking





Size Information
Model
YSDP220-80
YSDP300-100
YSDP400-100
YSDP450-150
Detector Dimension (Width*HeightMM)
220*80
300*100
400*100
450*150
Belt width(MM)
220
300
400
450
Sensitivity
FE
1.0
1.2
1.5
2.0
NON-FE
1.2
1.5
2.0
2.0
SUS304
1.5
2.0
2.5
3.0
Maximum range
3KG
5KG
20KG
30KG
Belt Height(mm)
750±30mm
Speed
25m/min
Operation interface
Plane key input (touch optional)
Item memory
100 Products
Stable way
Automatic phase adjustment
Alarm mode
Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(other types need to customization)
External interface
RS232/485/422,USB,to store data,Voltage signal or Switch signal,TCP/IP
Corollary equipment
Ink-jet printer,Check Weigher,Online printer,Labeling machine, etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Measurement
SUS304
Degree of protection
IP54/IP65
Environment
0℃-50℃
Remark
1.Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence.
2.Above machine specifications for the standard specifications, size and other special
requirements, all can be customized.









Pharmaceutical Metal Food Checkweigher Machine Stainless Steel 304 0







Pharmaceutical Metal Food Checkweigher Machine Stainless Steel 304 1

Check weigher metal detector Main Features

1) man-machine interaction of touch screen.

2)English-Chinese operation interface.

3) function of weight compensation.

4) Analyzing qualified rate of products with bar chart and graph.

5) secondary operation rights management, supporting self-set password.

6)Preset storage of 100 production formulas.

7)Several elimination methods of faulty products, supporting faulty stop function.





Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
